EDGE30 / EDGE2440 / EDGE40 / EDGE2460 / EDGE60 / EDGE3860
Installation and Operating Manual
Original Instruction Manual 15 Rev 2.1 July 12, 2016

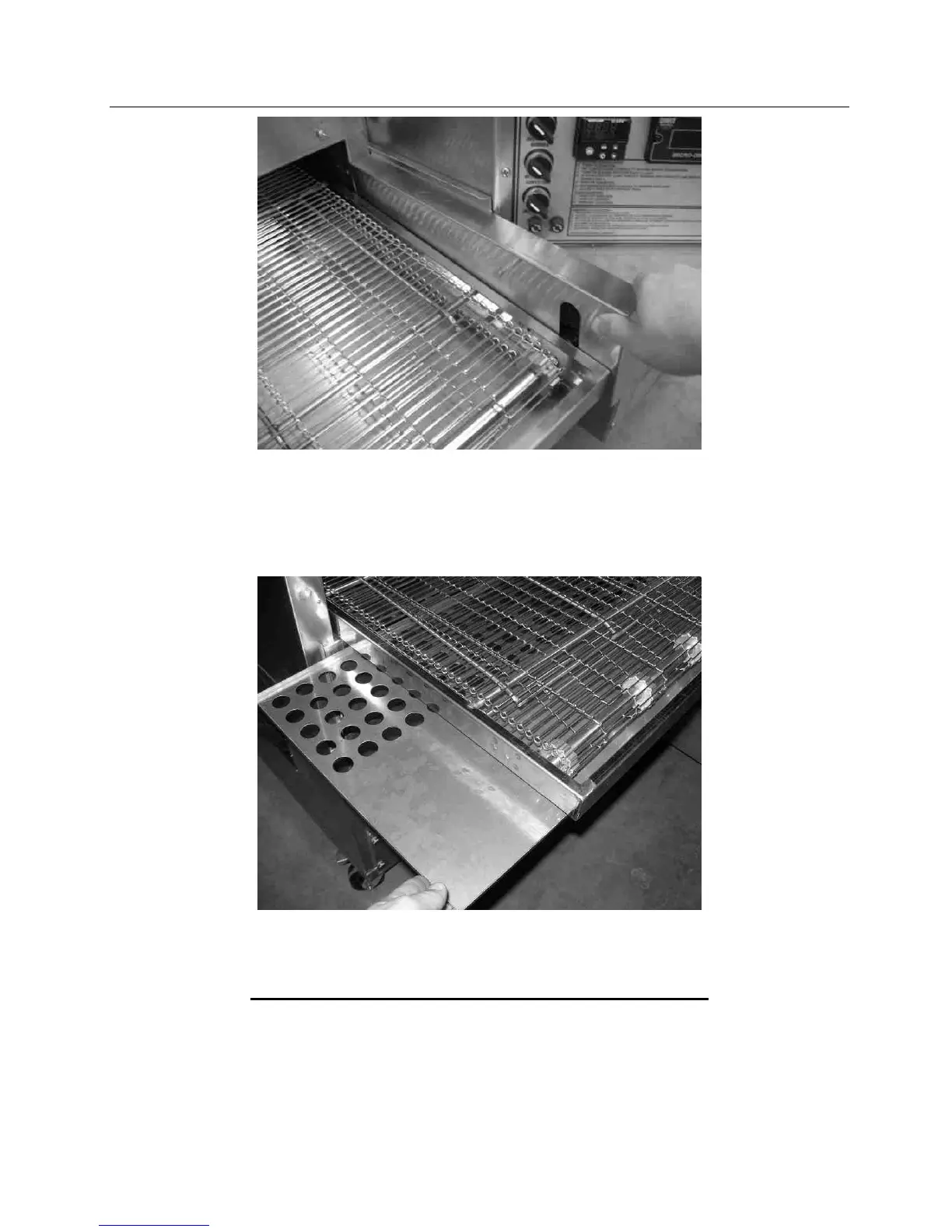

Figure 15
8. Insert the crumb pans into the rails underneath the belt frame. Solid crumb pans are
used in single or bottom oven belts. Perforated crumb pans are used in second and
third oven belts. (Figure 16)
Figure 16
Installation Instructions – Final Connections
Final installation of gas and electrical connections should be performed by an
authorized service company or a locally licensed electrician and plumber.
Gas pressure on this oven will need to be checked and set to specifications listed
in this manual.
