EdilKamin Dame User Manual

- 41 -
ENGLISH

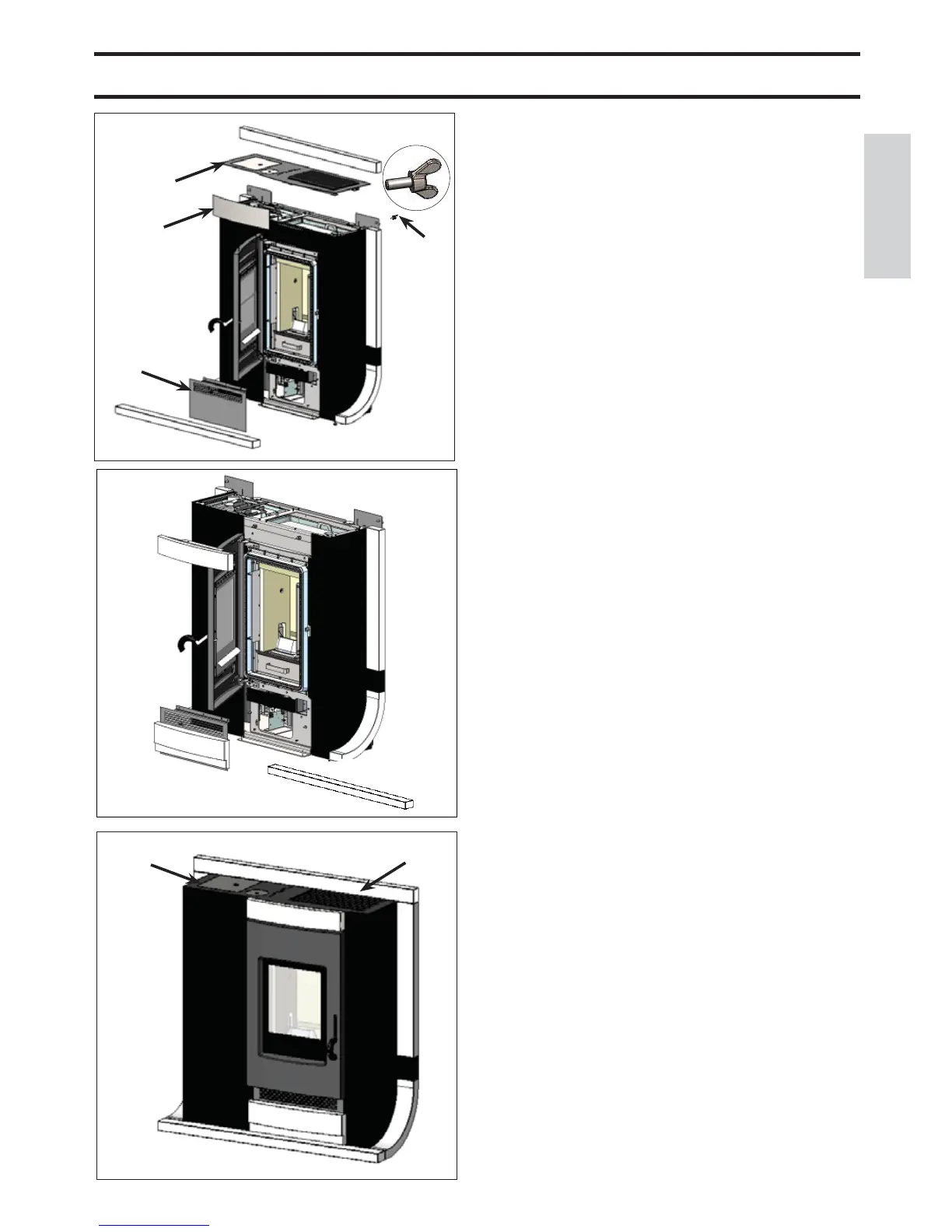

INSTRUCTIONS TO INSTALL MARBLE INSERTS - OPTIONAL
Ŏ g. 1
Ŏ g. 2
The kit marble frontal inserts is packaged in a box and it is
composed :
• n°1 marble upper insert with metallic fi xing bracket (H - fi g.2)
• n°1 marble lower insert with metallic fi xing bracket (I - fi g.2)
For the installation, please proceed as indicated :
Fig. 1
Open the door and remove the marble parts :
- Top part (F) removing the screws M6 and the washers (X and
Y)
- Bottom part (G) remove it from the fi xing pins
Remove the top plate (only settled) with the air outlet grid (M).
Remove by the screws the two metal panels, on the top (N) and
bottom (P)
Fig.2
In place of the two metal panels (N and P) install the two mar-
ble inserts (H and I) with fi xing bracket.
To fi x them use the screws previously removed
N.B. Install the bottom horizontal marble part (G) before than
the lower marble insert (I) with its metallic fi xing bracket
Fig. 3
Replace the metal upper part (M) and the horizontal upper mar-
ble part (F) previously removed.
To fi x them use the screws previously removed
F
G
M
N
P
H
I
X/Y
G
Ŏ g. 3
M
F

EdilKamin Dame Specifications

General

Brand	EdilKamin
Model	Dame
Category	Pellet stove
Language	English
