Any: All destination addresses are acceptable.
User Defined: Only a destination address or a range of
destination addresses which users define are acceptable. Enter
the destination MAC address and mask to which will be matched.
Select the type for Ethernet frame type.
Any: All Ethernet frame type is acceptable.
User Defined: Only an Ethernet frame type which users define is
acceptable. Enter the Ethernet frame type value to which will be
matched.
Select the type for VLAN ID.
Any: All VLAN ID is acceptable.
User Defined: Only a VLAN ID which users define is acceptable.
Enter the VLAN ID to which will be matched.
Select the type for 802.1p value.
Any: All 802.1p value is acceptable.
User Defined: Only an 802.1p value or a range of 802.1p value
which users define is acceptable. Enter the 802.1p value and
mask to which will be matched.
IV-11-3 IPv4 ACL
This page allow user to add or delete IPv4 ACL rule. A rule cannot be deleted if under
binding.
To display IPv4 ACL page, click ACL > IPv4 ACL.

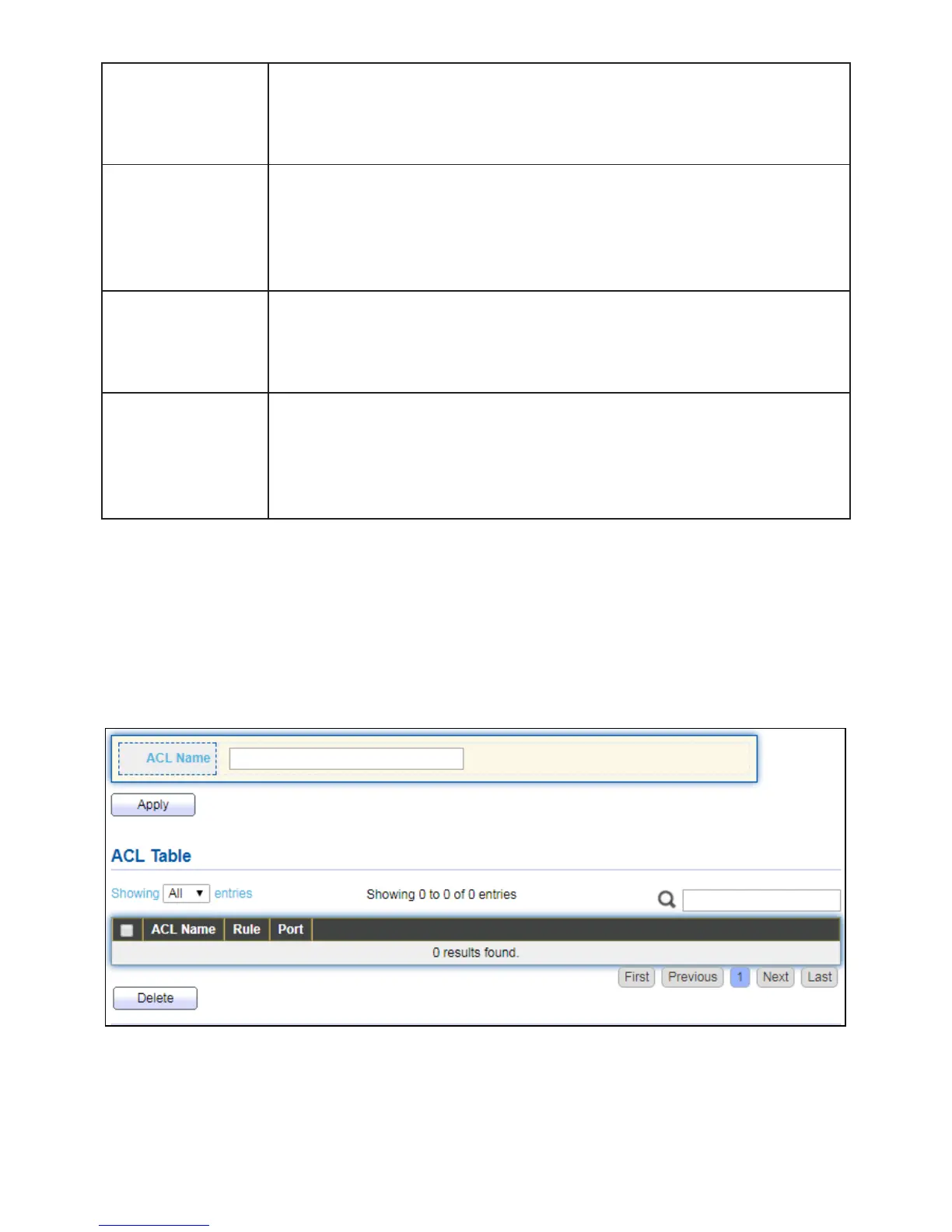

Figure 127 - ACL > IPv4 ACL
