IV Web-based Switch Configuration
The PoE smart switch software provides rich Layer 2 functionality for switches in your
networks. This chapter describes how to use the web-based management interface (Web
UI) to configure the switch’s features.
For the purposes of this manual, the user interface is separated into four sections, as
shown in the following figure:

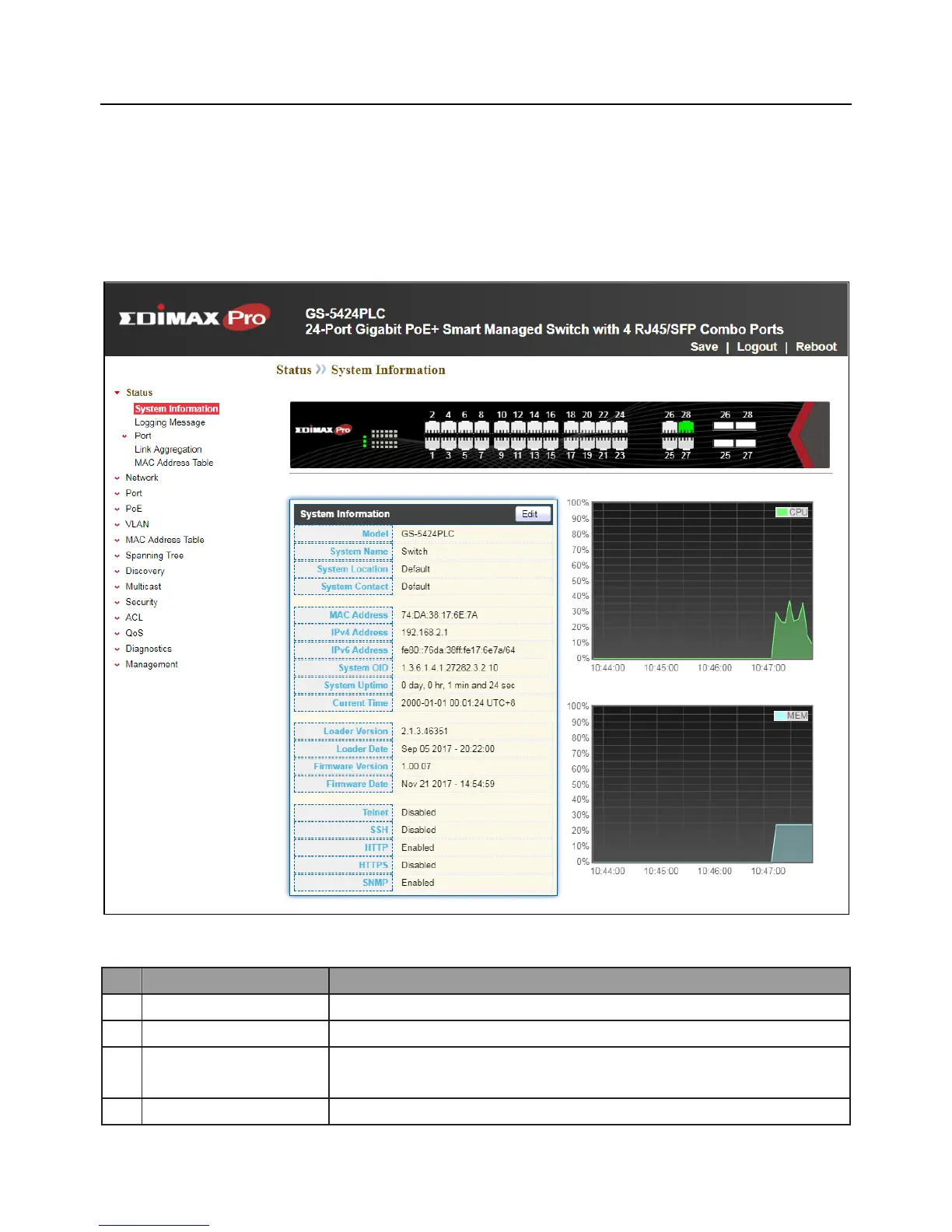

Figure 11 - User Interface
No.
Name
Description
1
Configuration menu
Navigate to locate specific switch functions.
2
Configuration settings
Edit specific function settings.
3
Switch’s current link
status
Green squares indicate the port link is up, while black squares
indicate the port link is down.
4
Common toolbar
Provides access to frequently used settings.
2
1
3
4
