Edwards E2M1.5 User Manual

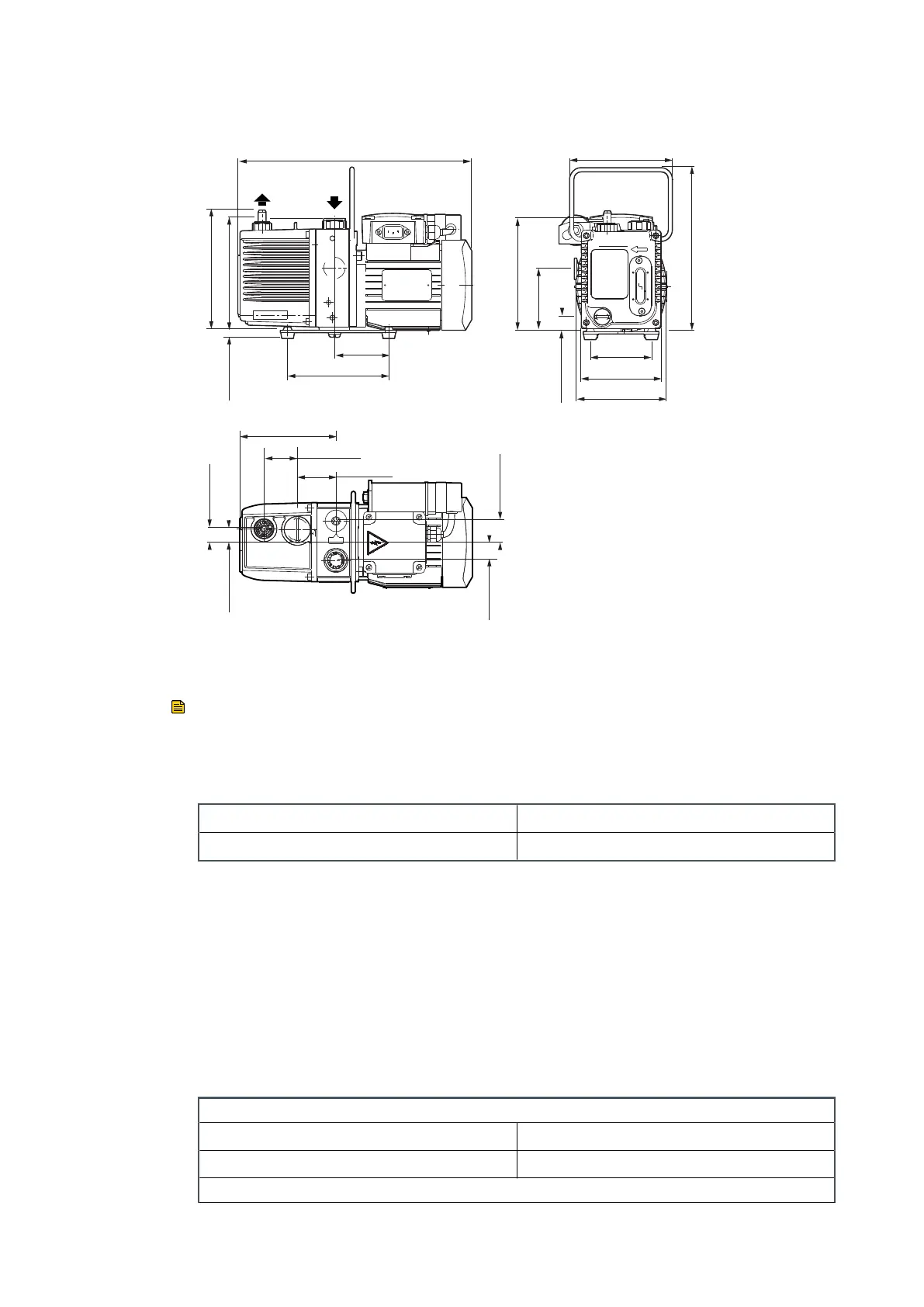

Figure 2 Dimensions mm (inches)
142 (5.59)
226.5 (8.91) 155 (6.10)
85 (3.34)
11.5 (0.45)
125 (4.92)
110 (4.33)
7
323 (12.71)
155 (6.10) 166.5 (6.55)
75 (2.95)
140 (5.51)
134 (5.27)
19 (0.75)
18 (0.70)
25 (0.98)
30 (1.18)
46.5 (1.83)
54 (2.12)
86.5 (3.4)
20.5 (0.81)
3.4 Lubricaon data
Note:
A Material Safety Data Sheet for Ultragrade 15 is available on request.
Table 4
Lubricaon data
Recommended oil* Ultragrade 15
Maximum oil capacity 0.32 litre
* To operate the pump when the ambient temperature is outside the range specied in
Operang and storage condions on page 12, or to opmise pump performance when
processing condensible vapours, a dierent oil may be required.
3.5 Electrical data
The motor start-up current is drawn for less than one second. Use me-lag fuses to
prevent unnecessary fuse failure when the pump starts. If the pump is used at
temperatures lower than 12 °C (53.6 °F), the start-up current will be drawn for longer,
this may cause the motor thermal overload device to open.
E2M0.7 pump
Motor output
rang - connuous
0.09 kW
Motor electrical supply Single phase
E2M1 and E2M1.5 pumps
Page 14
A37132880_F - Technical data
