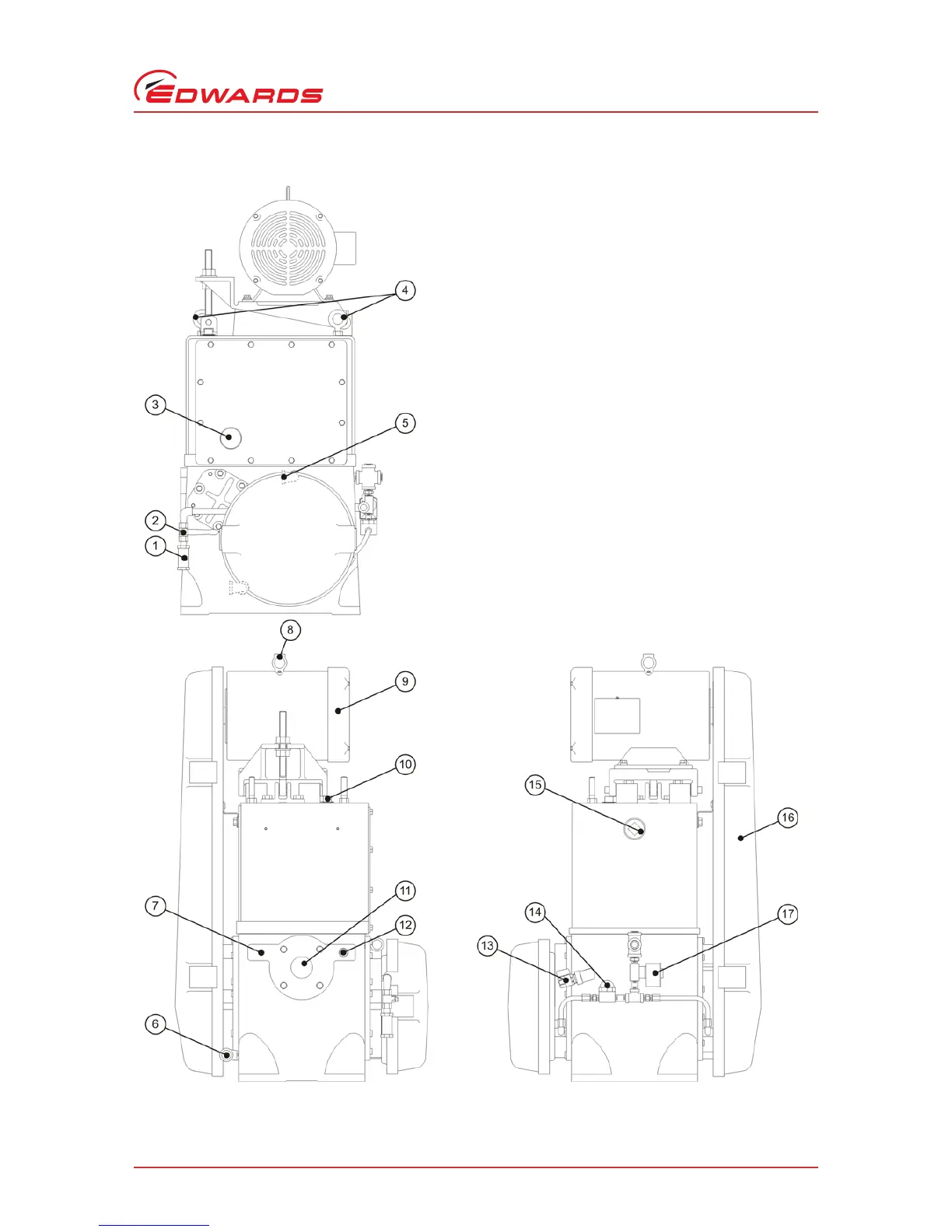

Figure 2 - 149-H/149-HS pump general arrangement
1. Check valve
2. Ball valve, gas ballast
3. Oil level sight glass
4. System lift eye-bolt
5. Water outlet connection
6. Water inlet connection
7. 1/4 inch vacuum access port
8. Motor lift eye-bolt
9. Motor
10.Oil fill port
11.Vacuum inlet connection
12.1/2 inch vacuum access port
13.Oil drain valve
14.Oil flow indicator
15.Vacuum exhaust connection
16.Belt guard
17.Solenoid valve
