Technical data
B800-00-880 Issue A

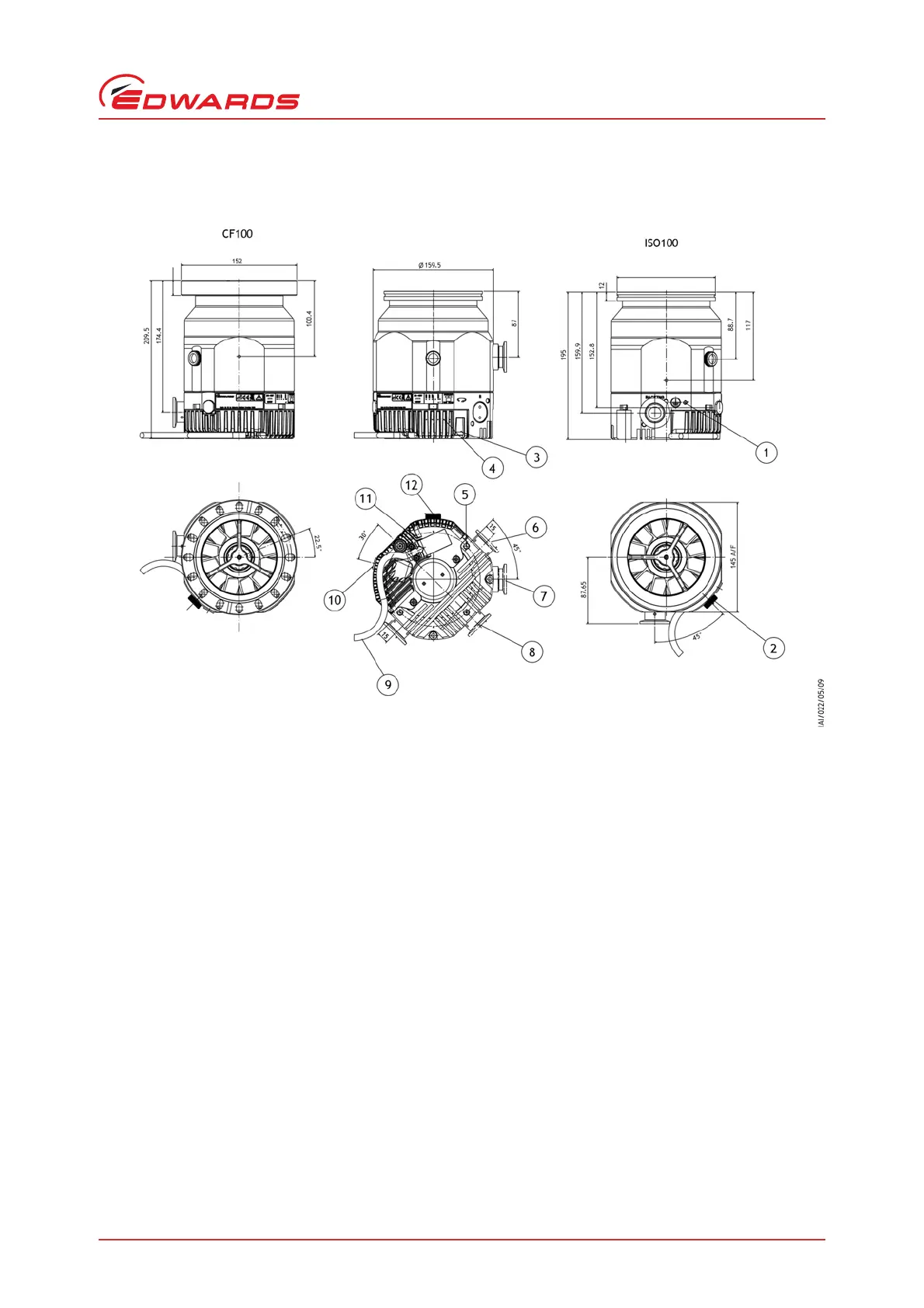

Figure 4 - nEXT 300D dimensions (mm)
1. Earth point
2. Envelope vent
3. Removable cap RS232/RS485 switch vent valve
socket
4. LED indicators on drive unit
5. Base mounting holes and fan mountings
6. Booster port B
7. Interstage port
8. Booster port A
9. 24/48V Supply
10. Body purge port
11. Electrical drive unit
12. Envelope vent port 1/8” BSP
