B800-00-880 Issue A
Page 74 © Edwards Limited 2009. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Service, spares and accessories

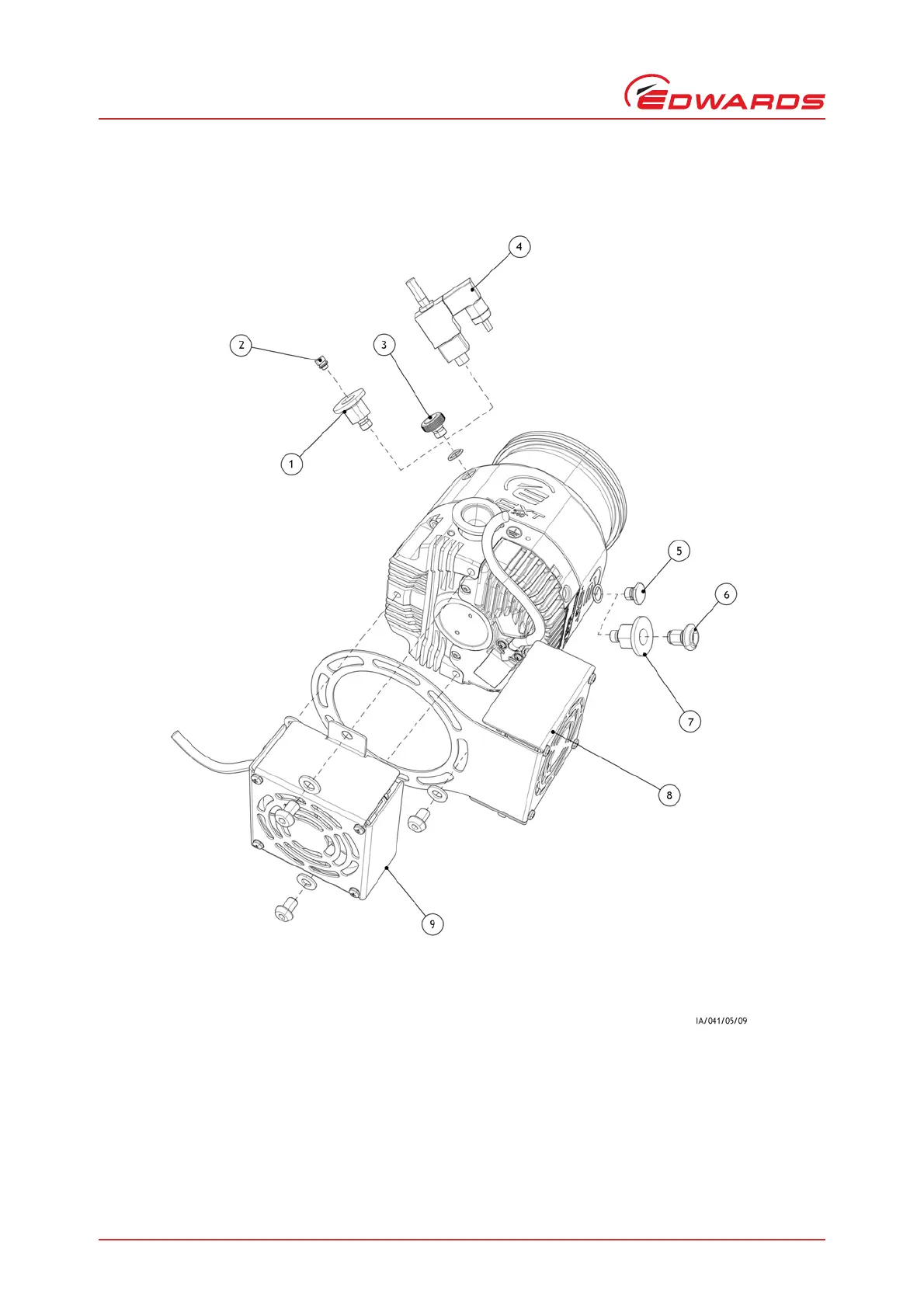

Figure 19 - nEXT exploded accessories view
1. DN10NW Adaptor
2. VRX Vent restrictor
3. Manual vent valve (fitted)
4. TAV Solenoid vent valve
5. Purge plug (fitted)
6. PRX Purge restrictor
7. DN10NW Adaptor
8. ACX nEXT air cooler (Radial)
9. ACX nEXT ait cooler (Axial)
