EFD 2000XL User Manual

1. 7104B Display board assembly
2. 7109 Power switch
3. 7105B Power supply
board assembly, 100 psi
7105C Power supply
board assembly
5 and 15 psi
4. 7123 Transformer
5. 2-7125-VR Solenoid assembly*
2-2003LF-PR Solenoid assembly*
(2000XL-PR5)
6. 2004B Air quick-connect
7. 7131 Pressure sensor, 100 psi
7132 Pressure sensor, 15 psi
8. 2015A Foot pedal assembly*
9. 7111 Fuse
10. 7106D Fuse holder
11. 2084-1 Restrictor fitting
12. 2085 1/8 NPT male - 1/4 barb
elbow low profile
13. 2087 1/8 NPT male -
1/4 barb elbow
14. 2094 1/8 NPT male -
1/16 barb 60°
15. 2024-160 Tubing .170 x 1/4
16. 2009-A24 Power cord*
17. 7143-01 Output circuit fuses
18. 2-2002A-VR Regulator 0-15 psi*
2-2002-VR Regulator 0-100 psi*
2-2002LP-PR Regulator 0-5 psi*
19. 2081A Air input
20. 1000INP-AKIT Input hose assembly*
21. 2170 Vacuum transducer
22. 2-2176-P Flow control
23. 2-2017-2000 Foot pedal receptacle
24. 2-2010 Air toggle switch
25. 2079 1/8 NPT male x .170 V barb
* Not Shown

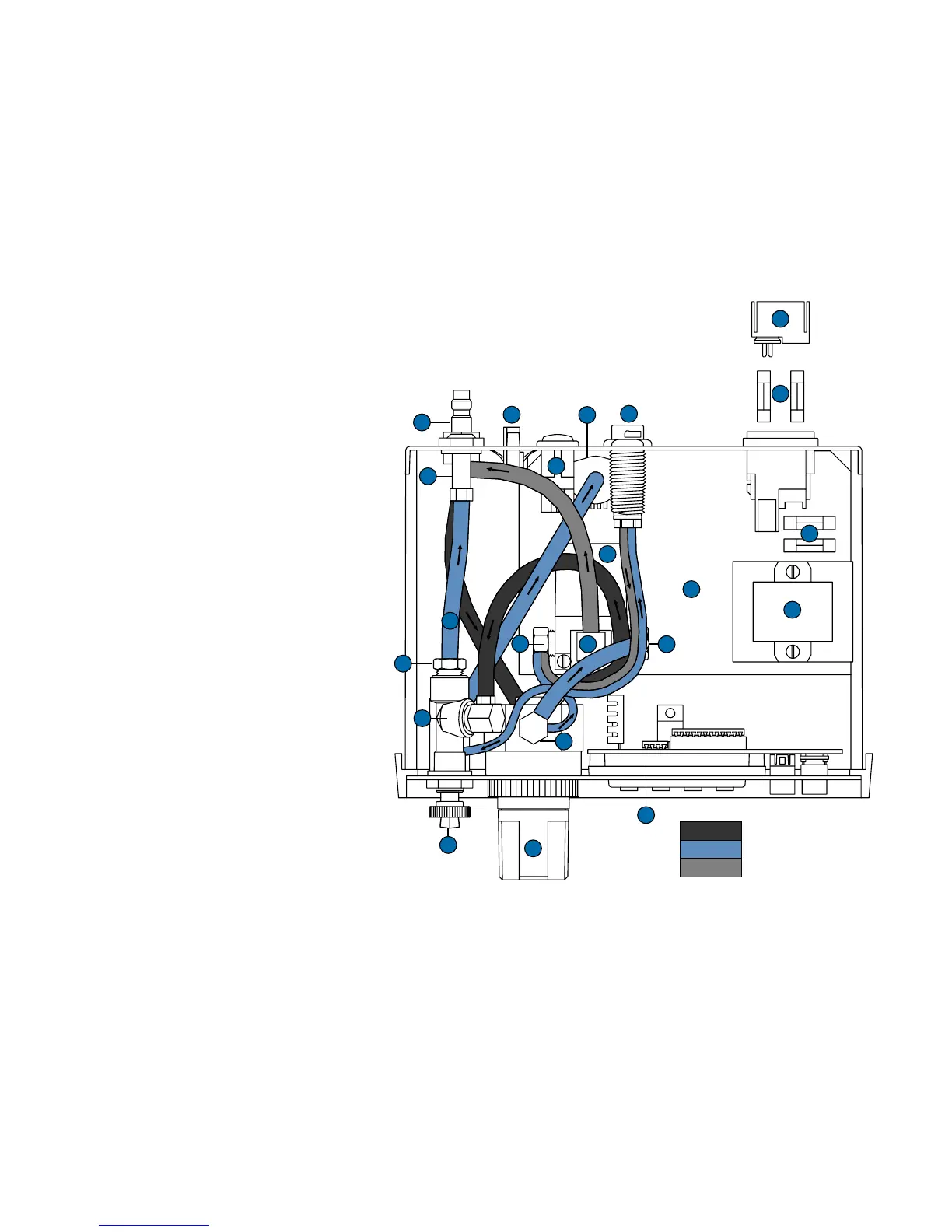

Schematic & Parts
1
24
3
4
5
7
10
11
12
13 25
14
18
19
17
23
21
9
Input air
Regulated air
Vacuum
2
6
15
22
