EFD 2000XL User Manual

General purpose precision tips
All EFD dispensing tips incorporate the unique
SafetyLok
™
color-coded polypropylene hubs.
Conveniently packaged (50) tips per see-through
box for easy part identification.
gage ID 1/2" length hub color
14 .061" 5114-B olive
15 .054" 5115-B amber
18 .033" 5118-B green
20 .024" 5120-B pink
21 .020" 5121-B purple
22 .016" 5122-B blue
23 .013" 5123-B orange
25 .010" 5125-B red
27 .008" 5127-B clear
30 .006" 5130-B lavender
Useful accessories
#2000F755: Five micron filter
regulator provides proper air
filtering for all dispensers.
Order if you do not have dry,
clean, filtered factory air supply.
#2000F756: Five micron filter
regulator with coalescing filter.
Removes liquid aerosols from
air supply for cyanoacrylate
applications. (Supplied with
the 2000XL-CA dispenser.)
#7300A: Barrel stand, fully
adjustable three axes.
#DS1400: DispenStand
™
holds dispenser
vertically.
#DS1200: Horizontal
stand
tilts dispenser at
a 14° angle for convenient
viewing and operation.

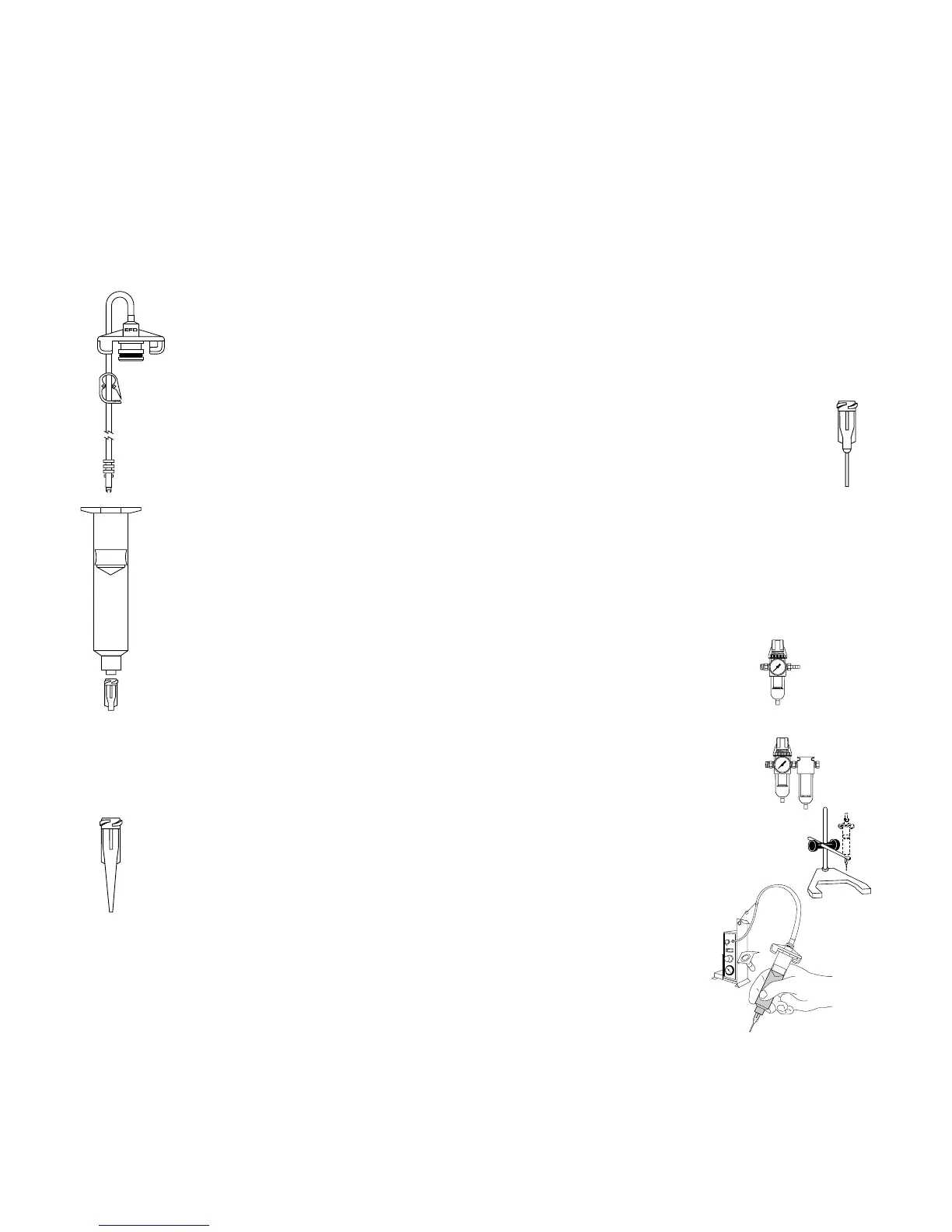

Barrel adapter assemblies
Molded one-piece, yellow, SnapLok
™
adapter head
with Buna N O-ring, flexible 5/32" O.D. hose, male
quick-connect and safety clip.
size with 3-ft hose with 6-ft hose
3cc 1000Y5148 1000Y5148-6
5cc 1000Y5149 1000Y5149-6
10cc 1000Y5150 1000Y5150-6
30cc/55cc 1000Y5152 1000Y5152-6
Each box contains the same quantity of barrels
and pistons.
Thin to thick fluids (white SmoothFlow
™
piston)
UV-block opaque sets/
size clear amber black box
3cc 5109CP-B 5109AP-B 5109UP-B 50
5cc 5110CP-B 5110AP-B 5110UP-B 40
10cc 5111CP-B 5111AP-B 5111UP-B 30
30cc 5112CP-B 5112AP-B 5112UP-B 20
55cc 5113CP-B 5113AP-B n/a 15
Cyanoacrylates and watery-thin fluids (blue LV Barrier
™
)
size clear barrel/LV Barrier
™
/tip cap sets/box
3cc 5109LV-B 50
10cc 5111LV-B 30
Smooth-flow tapered tips
Molded polyethylene with UV block. Packaged (50)
tips per see-through box for easy part identification.
gage ID tapered color
14 .063" 5114TT-B olive
16 .047" 5116TT-B grey
18 .033" 5118TT-B green
20 .023" 5120TT-B pink
22 .016" 5122TT-B blue
25 .010" 5125TT-B red
For complete selection and technical details, please refer to EFD Catalog and price list.
ULTRA System
™
Dispensing Components
2000F755
DS1400
2000F756
7300A
