Digital Time, Air Pressure and
Vacuum Pressure LCD Display
• Programmable floating decimal provides time range
readout from 0.001 to 99.99 seconds.
• Air pressure readout can be programmed in either
psi or bar.
• Vacuum pressure readout is displayed by holding
the vacuum toggle switch in the "up" position.
Memory
Can store up to eight Time settings. (See page 20.)
Run/Setup
1. The RUN mode allows access to all eight cells. Cell
numbers are displayed as CEL1, CEL2....CEL8. Chang-
ing the cell number will change the time setting corre-
sponding to that cell.
The SETUP mode provides access to selected cell
TEACH and TIME SET functions. Only in the SETUP mode
can cell time values be viewed, cleared, or changed.
2. In the RUN mode, the functions are inoperative.
Steady/Teach
In SETUP mode, pressing STEADY/TEACH will clear
the currently displayed cell setting, reset the cell
display to blinking "0000", and place the dispenser
in a TEACH mode (refer to page 12 for TEACH
procedures).
In RUN mode, pressing STEADY/TEACH will override the
timer and dispense for as long as the foot pedal is
pressed. The dispenser display will read "----" in the
STEADY mode.
Time Set ▼ (down) ▲ (up)
In SETUP mode, use the TIME SET buttons to change
time settings. Left buttons scroll digits quickly; right
buttons scroll digits slowly.
Pressure/Time
Press to change display values from TIME to PRESSURE
or PRESSURE back to TIME.
In SETUP mode, pressure readings may be changed
from PSI to BAR and BAR to PSI by pressing and
holding the PRESSURE/TIME button for four seconds.
STOP
This button stops the dispenser immediately.
Barrel Vacuum Control
Refer to page 16 for operation.
Air Pressure Regulator
Refer to page 11 for operating instructions.
STEADY
RUN
SETUP
CYCLE
STOP
Run
Setup
Fast Slow
Time Set
Pressure
Time
Fast Slow
Time Set
Pressure
Vacuum
Steady
Teach
Cell Select
EL1 C
V
acuum
Pressure
®
A NORDSON COMPANY
2000XL
Function
Indicator
Lamps
Air pressure
regulator
Barrel vacuum
control
Vacuum
toggle switch

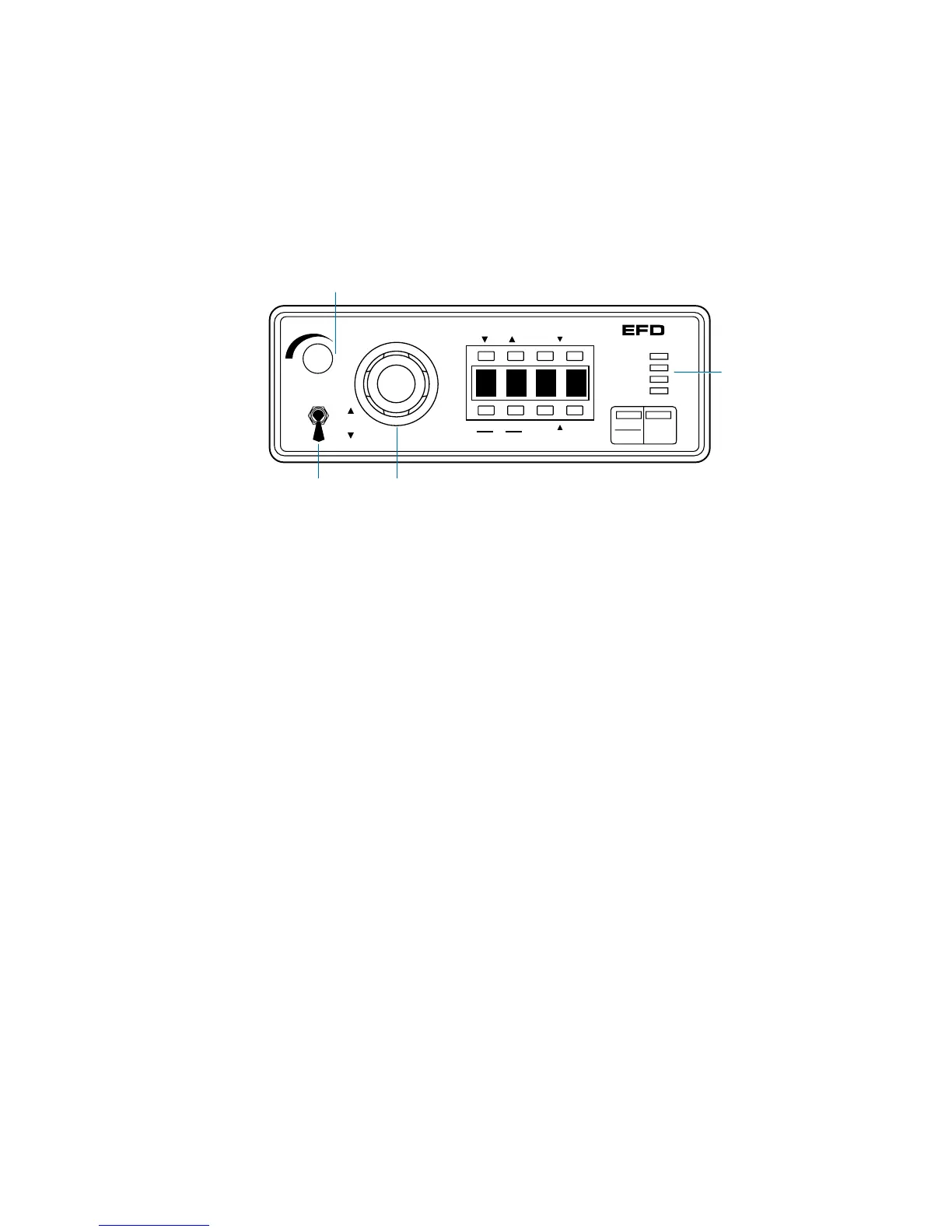

Features and Controls
