❺ Power on/off
Press the Power Switch located on the rear panel
to the "ON" position. The dispenser will power up
in the RUN, STEADY, or PRESSURE mode and indi-
cate which cell was selected last. (Dispenser is
shipped with
CEL1
selected in RUN mode).
❻ Air output
Push in and twist lock the 10cc adapter assembly
(part # 1000Y5150). The number 5150 is molded
on the side of the yellow head.
❼ Setting the decimal
The dispenser is shipped with the decimal set at
hundredths of a second (00.00). The decimal can
be moved to show thousandths of a second (0.000)
as follows:
Press RUN/SETUP to place the dispenser in SETUP
mode.
To move the decimal, press and hold the STOP
button. After approximately 4.0 seconds, the
decimal will move to the thousandths position. To
return to the hundredths position, press and hold
the STOP button again.
Note: Changing the decimal place changes the
current time setting by a factor of 10. For example,
5.35 seconds becomes 53.50; 15.00 seconds
becomes 1.50.
❽ Setting the pressure readout
The dispenser is shipped with pressure display
programmed in psi.
Note: On models with 5 psi and 15 psi regulators,
the pressure is adjustable in 0.1 psi increments.
If bar is desired, change as follows:
Press RUN/SETUP and place the dispenser into the
SETUP mode. Press and hold the PRESSURE/TIME
button for 4.0 seconds. The display will change
from psi to bar. To change back to psi, press and
hold PRESSURE/TIME for 4.0 seconds.
❾ Vacuum control
Vacuum is turned off (clockwise) during testing
procedures. (Refer to page 16 for operation.)
❿ Vacuum toggle switch
To read vacuum pressure, hold toggle switch in
the "up" position. Readout will appear on the
digital display pad, then return to air pressure
readout when toggle is released.
Continue to page 11 for test procedures.
STEADY
RUN
SETUP
CYCLE
STOP
Steady
Run
Setup
Fast Slow
Time Set
Teach
Pressure
Time
Fast Slow
Time Set
Pressure
Vacuum
Vacuum
Pressure
Cell Select
E
L
1
C
®
A NORDSON COMPANY
2000XL

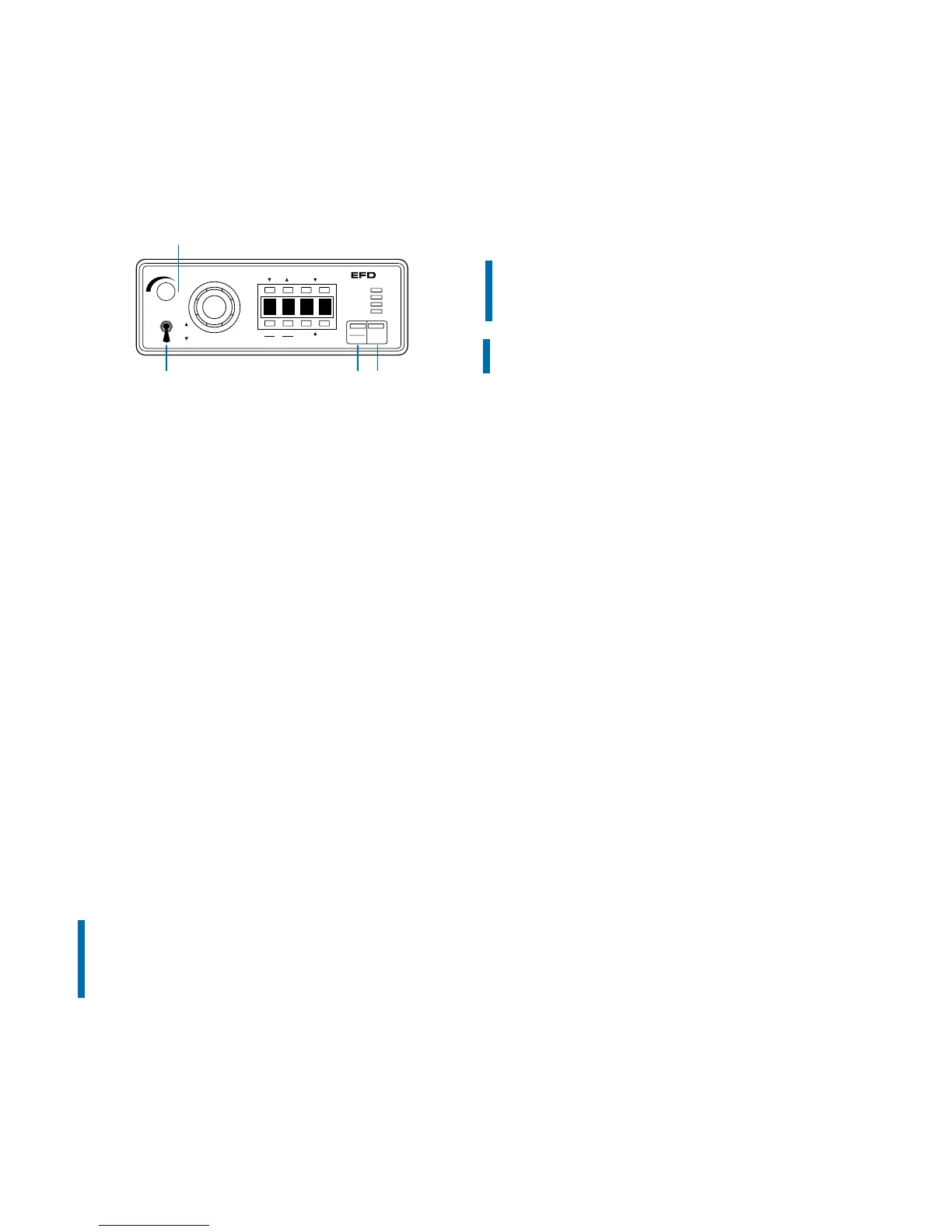

❼
