6. Installation - tting
6.1 Fitting the sensors
The sensors should be clamped onto one (UK) or three (SE) (NO) (FIN) live feed cables. The
sensors can be used on cables up to 12 mm in diameter. The sensor must not be fitted to the
cable using force.

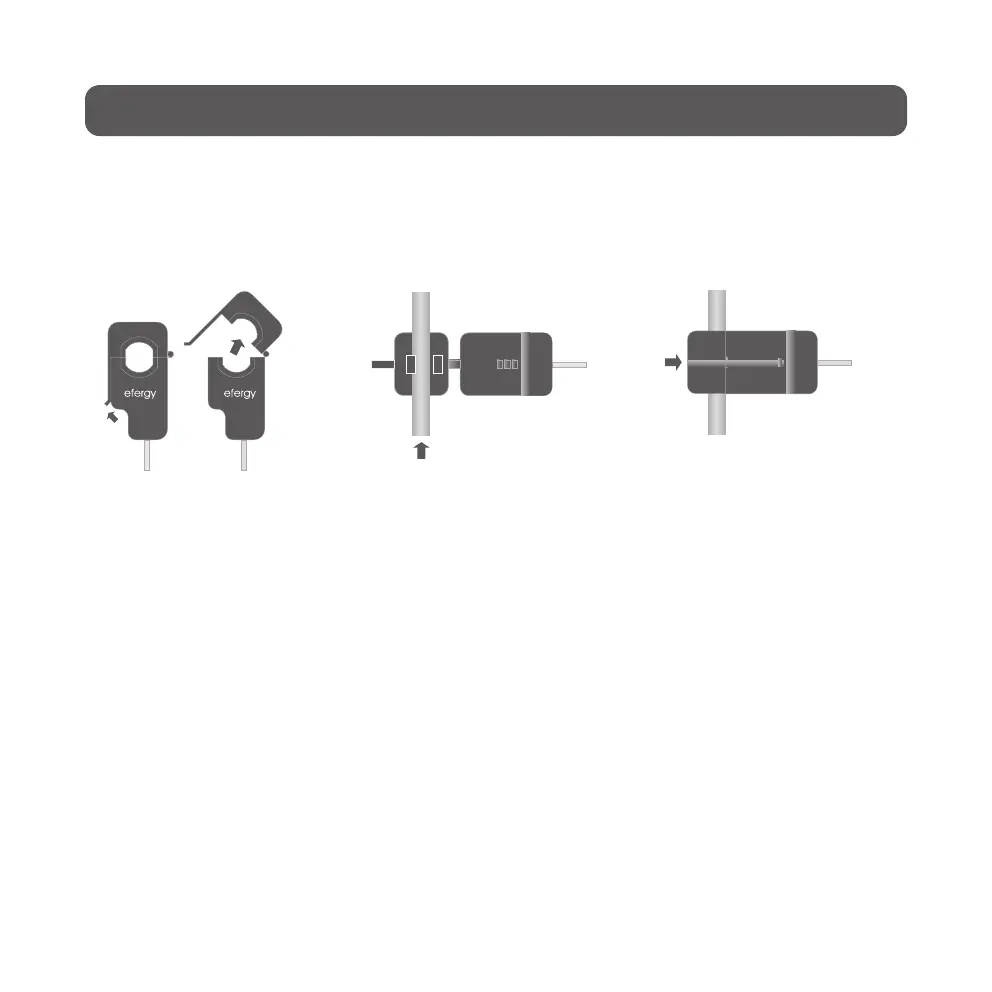

1. Find your live feed cable (UK), cables (SE) (NO) (FI).
2. Press the release cap outwards to open the sensor.
3. Make sure that you have the correct cable and place the sensor around the cable.
4. Press the sensor together and a click will be heard when the release cap locks.
5. Fit a sensor onto each live feed cable L1, L2, L3 (SE) (NO) (FI).
6.2 Connect the sensor to the transmitter
Plug the sensors into the sockets on the bottom of the transmitter.
The sensors/plugs do not have to be in any particular order.
The sensor meters the current which passes through these cables. A reading of the amount of
drawn current is then wirelessly sent to the display unit via the transmitter. The energy consump-
tion is shown directly on the display.
