USV MT3200 Instruction manual
MT Series
Page 15 of 36
If all of the connections of the UPS already exist and the safety cutout is
switched on, the charging unit is automatically active, i.e. the internal battery
pack is already charged, without the UPS being started.

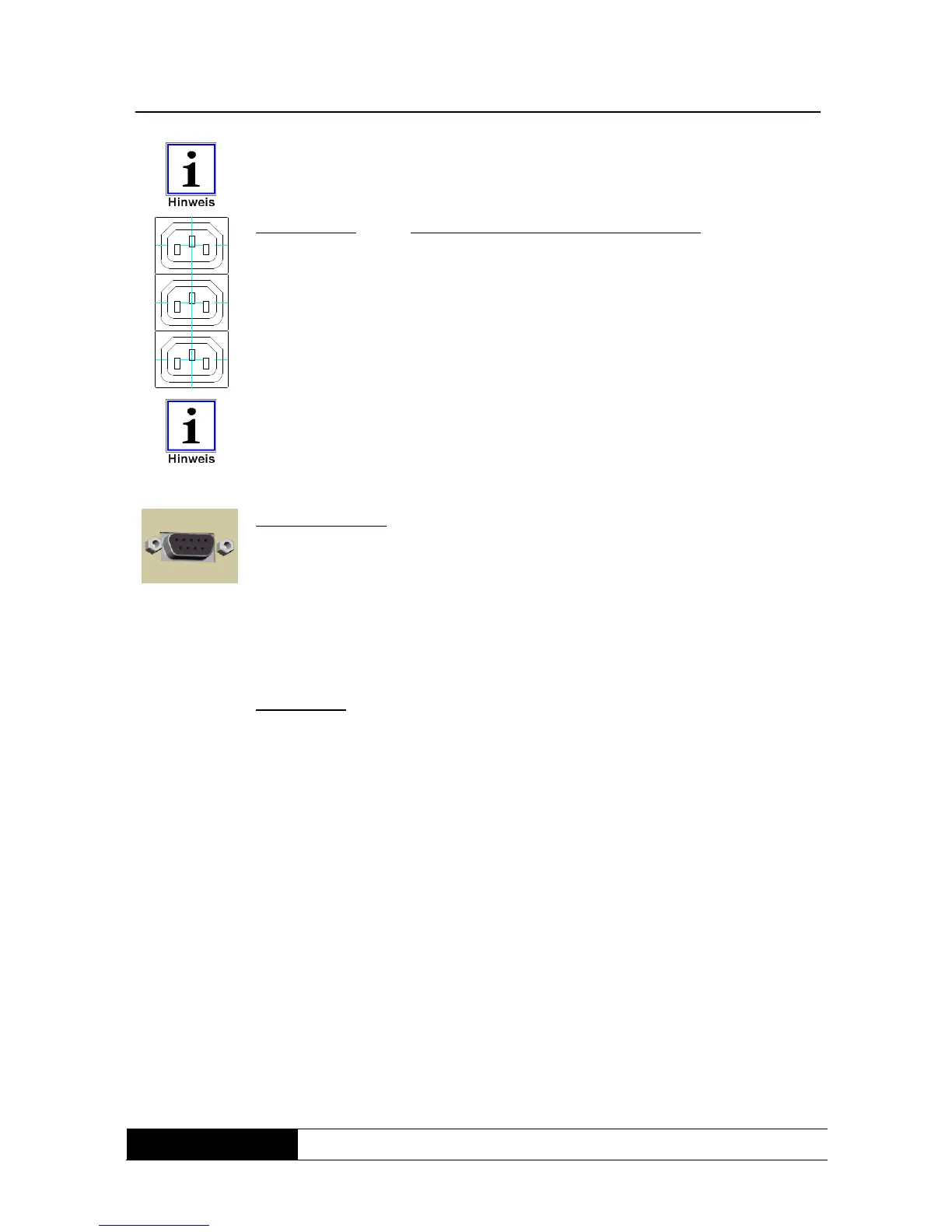

c) UPS output Double socket (KG) in 2 groups of 2 pcs.
Two double sockets are protected by one safety cutout.
The protective earth conductor must always be connected!
Please always observe the max. possible power output of the equipment
indicated on the identification label or in the technical data of this manual.
e) Communication
(9-pin D-Sub jack)
Via the serial interface (RS232), all of the relevant UPS
data are transmitted to an appropriate primary control
unit (e.g. PC). In addition, a defined shutdown signal can
be sent to the UPS. Suitable software packages are
available for this (see Software chapter).
In addition, the interface with the “mains power failure”
and “low battery” contact signals (LAN) is assigned in
such a way that these signals are available directly for
processing.
Identification The identification label contains information about the:
# Manufacturer
# Equipment model and output class
# Equipment input values
# Equipment output values
# Item number
# Serial number
# CE and barcode designation
