Hardware Overview

Document ID: OMM-00174 Rev. D Pro 30f Operations Guide 25

3.2.5 Main Carriage Beam Assembly

The main carriage beam assembly supports the carriage. The carriage travels across the media via a rail and bearing system. The carriage

contains a set of bearings that ride along the rails attached to the main beam. Information about carriage position is supplied via the linear

encoder strip attached to the beam. The main component are shown in

Figure 3-16.

NOTE: The encoder strip and rails require periodic maintenance. Refer to OMM-00175, EFI Pro 30f Maintenance

Guide for details.

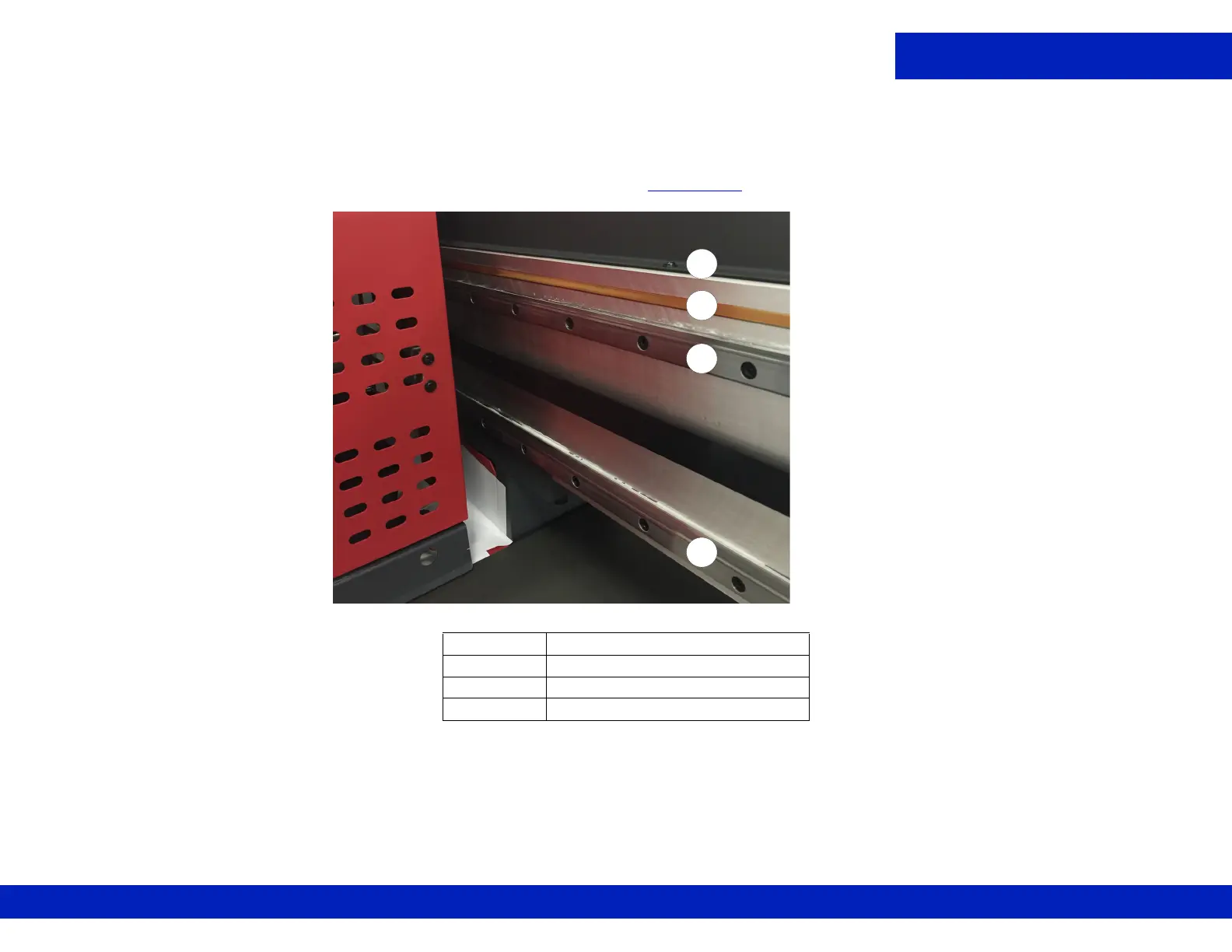

Figure 3-16 Main Beam

A Carriage Main Beam

B Linear Encoder Strip

CTop Rail

D Bottom Rail
