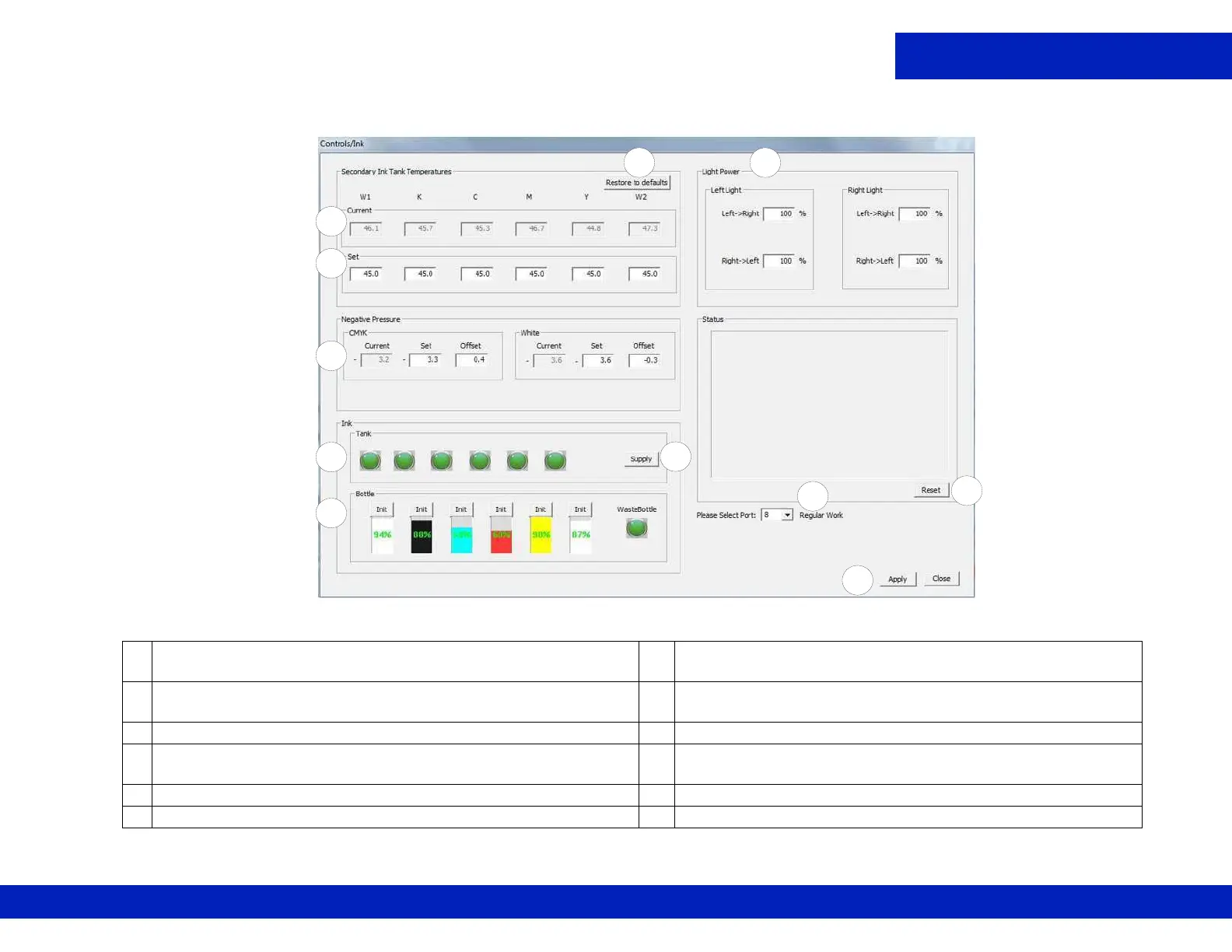

Figure 4-5 : Ink System Information
A Restores Ink Tank Temp Factory Settings (Cyan, Magenta
to 41° C; 42° C for White, Black, and Yellow)
G Supply: Fills All Secondary Ink Tanks
B Secondary Ink Tank Current Temperatures - View Only H Click Apply after every adjustment. System displays
modification confirmation messages.
C Secondary Ink Tank Temperatures to be Set I During initial set up, select PLC connection port.
D Negative Pressure - CMYK and White J Displays status and alarm messages. Alarm buzzer
sounds until you choose Reset.
E Ink Tank Status. Green = OK; Gray = Low/Empty K LED Lamp Power Adjustment
F Level Indicator for Each Ink Tank and the Waste Bottle
10
C
A
D
E
F
B
G
H
I
J
K
