Cummins 2010-2018 Quick Start
support@efilive.com - 18 - www.efilive.com
BBX Configuration
Setting up FlashScan V2/AutoCal for Reading, Flashing and Logging
using V8 Scan and Tune
There are a range of configuration files that need to be programmed onto
FlashScan and AutoCal to enable hardware to work in standalone mode for your
controller. Each step can be programmed into the device individually, or
collectively.

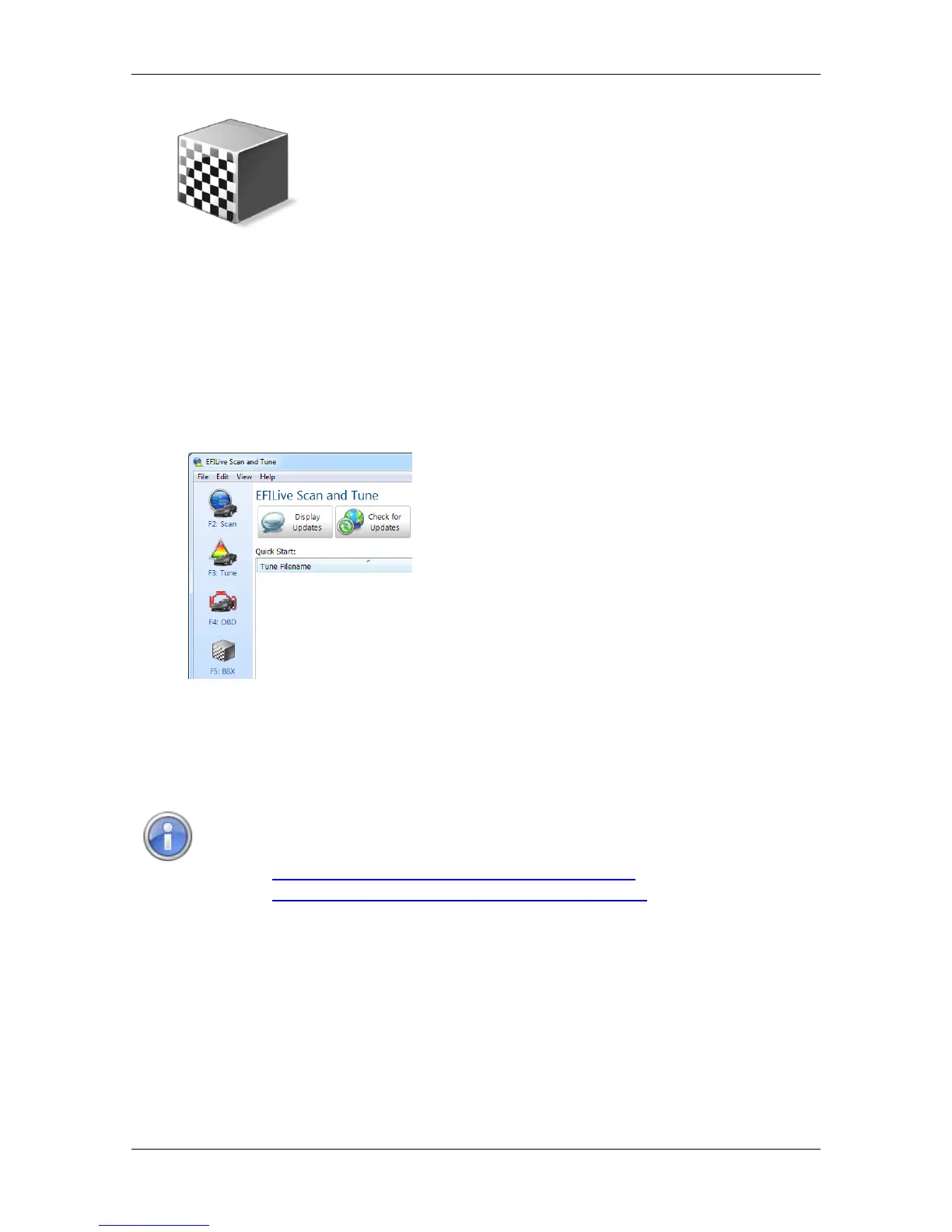

With your FlashScan V2/AutoCal plugged in to a USB port, open V8 Scan and
Tune and click on the [F5: BBX] option.
BBL (Black Box Logging) Configuration
EFILive’s Enhanced Data Logging (EDA) allows customers to log 45 individual
data parameters specifically chosen to complement tuning at up to 50 frames per
second for both FlashScan V2/AutoCal Black Box Logging (BBL) & V8 pass-thru
logging.
EDA is only accessible to customers who upgrade to EFILive’s CSP
5
operating system Refer to the following user guides for further details:
 Cummins 6p7L CM2200 CSP5 User Guide.pdf
 Cummins 6p7L CM2350B CSP5 User Guide.pdf
Limited factory logging is available on non-CSP operating systems by;
1. Select the [F2: Scan] option in the left-hand pane.
2. Remove any unnecessary controller configurations to ensure capacity restrictions
are not exceeded.
3. Add the correct controller to your list;
a. Press the green '+' icon.
b. Right clock on the Engine Controller box.
c. Select controller.
d. Read and accept the BBL Information display.
e. Select OK.
