6.30 Signal Output Position 2
 Transistor output with open collector
 Signal whenever the needle is in the slot between position 2 and 2A
 Independent of sewing, thus also when turning the handwheel manually
 Suitable e. g. for the connection of a counter
 An inverted signal is issued at socket B/8
6.31 Signal Output 512 Impulses per Rotation
 Transistor output with open collector
 Signal whenever a generator slot of the position transmitter is sensed
 512 impulses per rotation of the handwheel
 The impulses are issued independently of sewing, thus also when turning the handwheel manually
 Suitable e. g. for the connection of a counter
 An inverted signal is issued at socket B/7

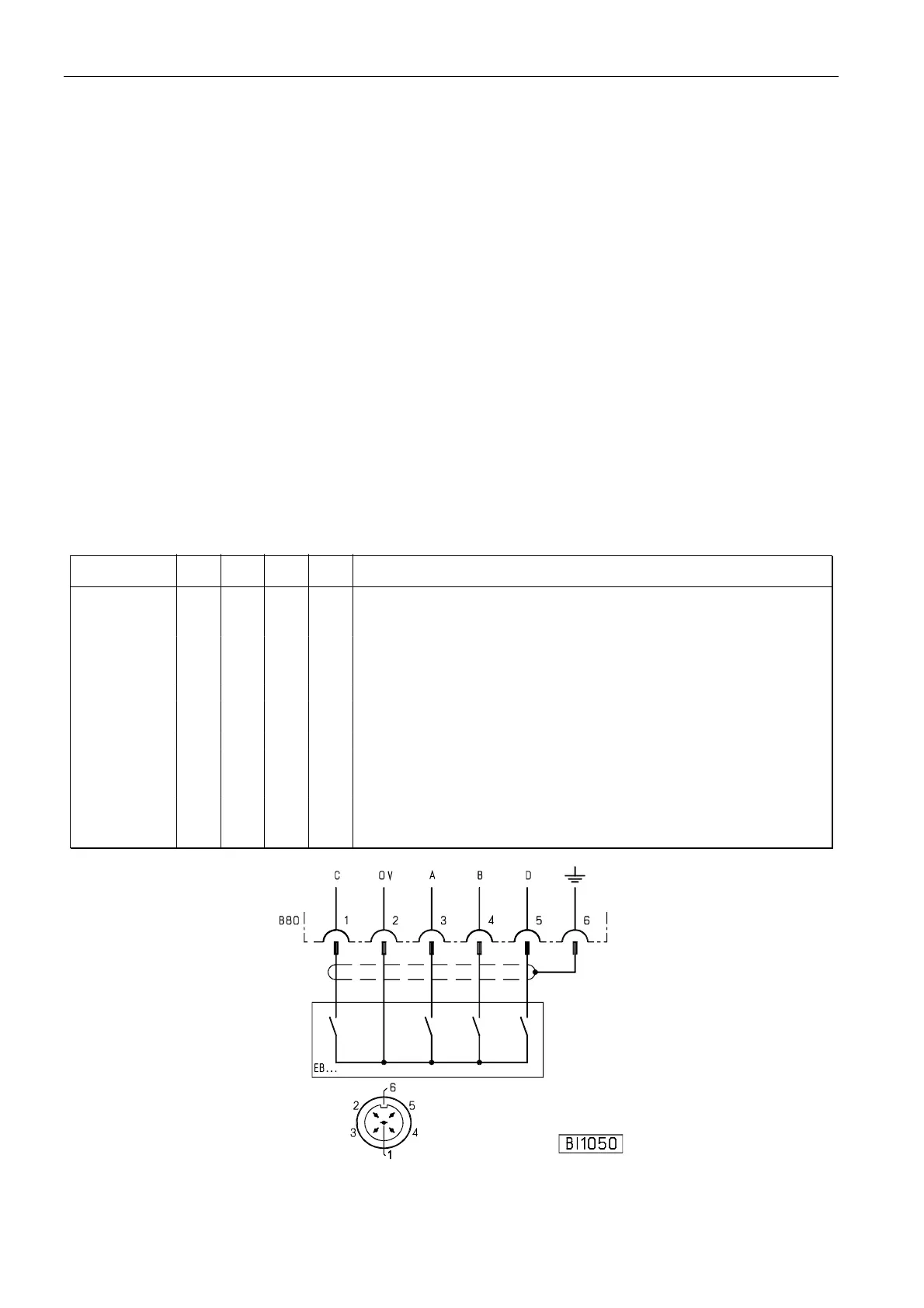

6.32 Actuator
The commands for the sewing operation are input by means of the actuator, which is connected to the pedal. Instead of the
built-on actuator a different actuator can be connected to socket B80.
Table: Coding of the Pedal Steps
Pedal step D C B A
-2 H H L L Full heelback (e. g. initiating the seam end)
-1 H H H L Slight heelback (e. g. sewing foot lifting)
0 H H H H Pedal in pos. 0 (neutral)
½ H H L H Pedal slightly forward (e. g. sewing foot lowering)
1 H L L H Speed stage 1 (n1)
2 H L L L Speed stage 2
3 H L H L Speed stage 3
4 H L H H Speed stage 4
5 L L H H Speed stage 5
6 L L H L Speed stage 6
7 L L L L Speed stage 7
8 L L L H Speed stage 8
9 L H L H Speed stage 9
10 L H L L Speed stage 10
11 L H H L Speed stage 11
12 L H H H Speed stage 12 (n2) Pedal fully forward
EB.. Actuator
