Components, Accessories, and Administration Sets 44
PCA Lockbox 100mL
This Lockbox can accommodate IV bags of up to 100 mL.

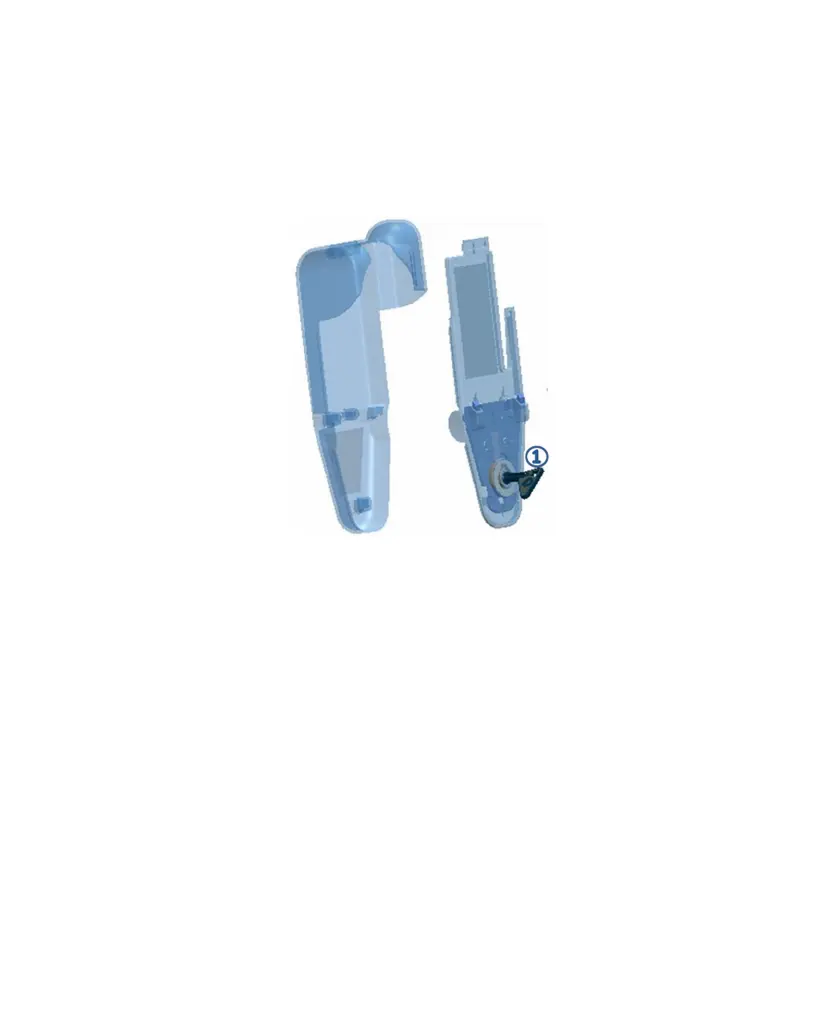

Figure 2.8. PCA Lockbox 100mL
The following steps explain the workflow of using the PCA Lockbox 100mL:
1. Using the key supplied with the Lockbox (Figure 2.8, #1), open the box and remove
the plastic cover.
2. Close the clamps on the administration set, and spike the bag.
3. Block the administration set using the AFFV (for more information about the AFFV,
refer to: Priming Manually on page 93), and then open the clamps.
4. Insert the container into the box, and wrap the tube around the inner walls of the
box, in order to allow free flow and prevent kinks. Then, set the tube through the
exit channel (Figure 2.9, #2).
