Eizo ColorEdge CS2420 - Connection Procedure (Setup of USB Function)

- 43 -
Chapter 6
Reference
●
Connection Procedure (Setup of USB Function)
1. Connect the monitor rst to a PC using the signal cable, and start the PC.
2. Connect the USB cable between the USB downstream port of the PC and the USB upstream port of the monitor.
The USB hub function is set up automatically upon connection of the USB cable.
3. Connect the peripheral USB device to the USB downstream port of the monitor.

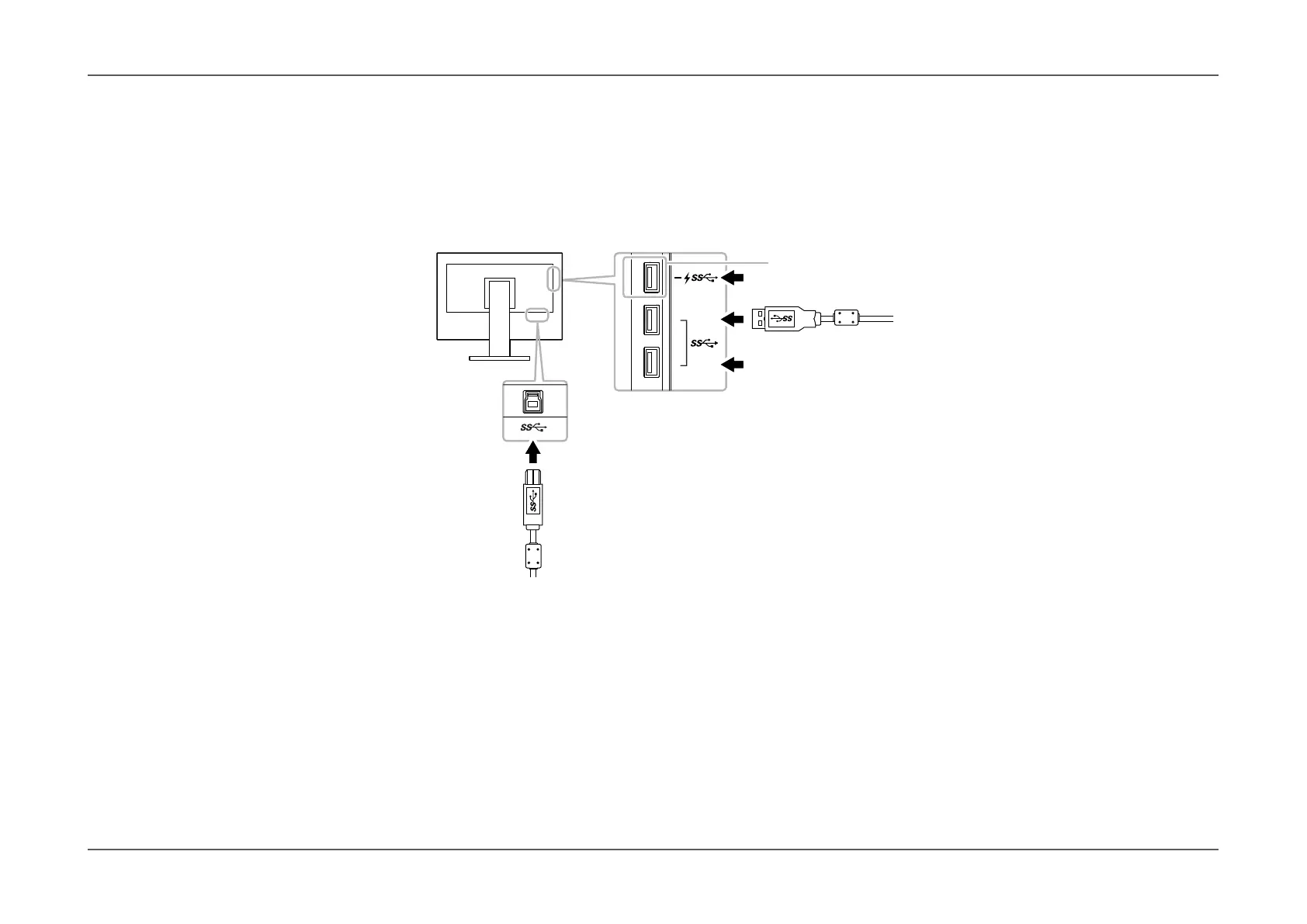

USB
downstream
port
USB upstream
port
“CHARGE” port
