Eizo CuratOR EX2721 User Manual

21
Chapter 4 Reference

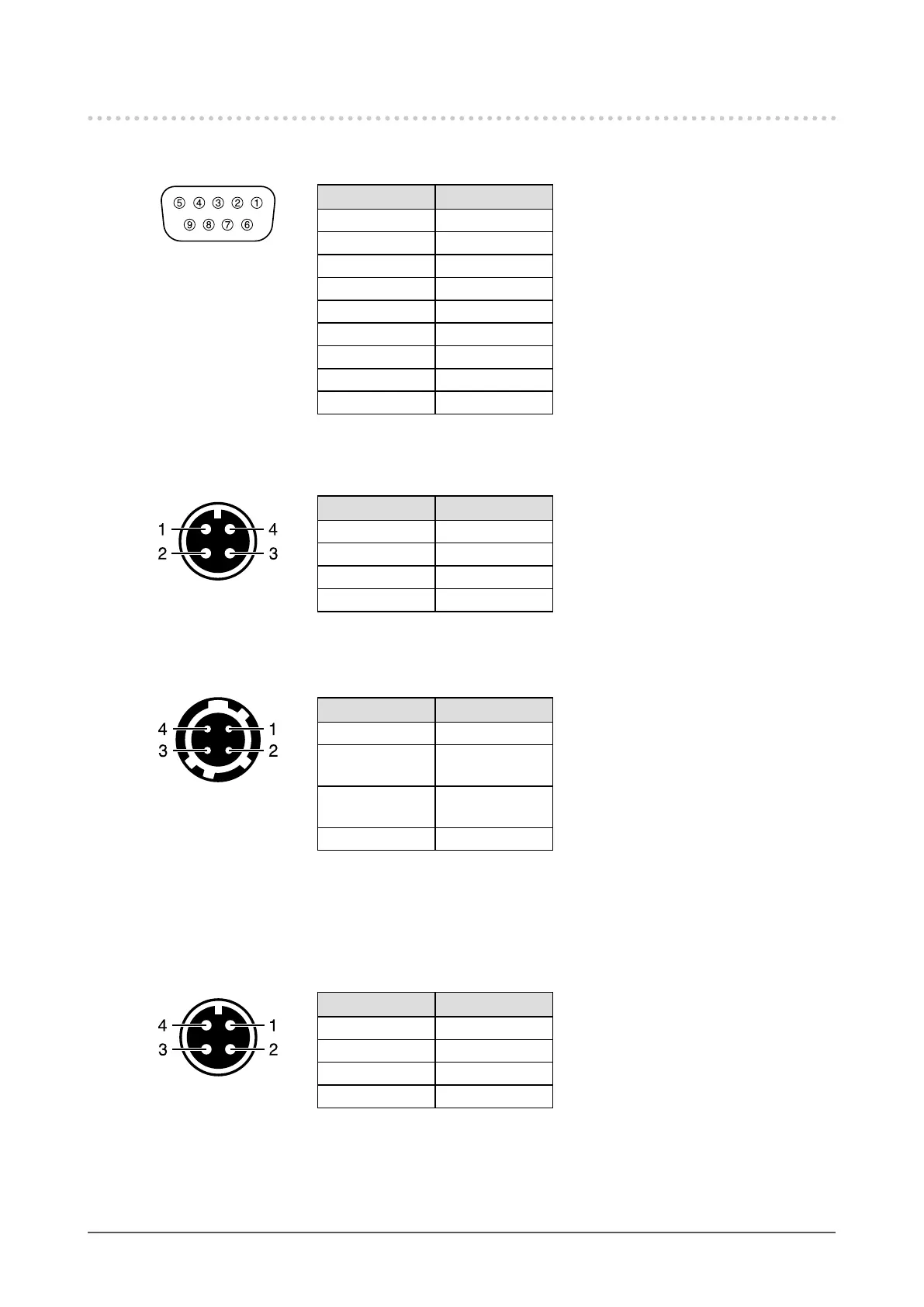

4-2. PinSpecications
●
GPI terminal
Pin No. Signal name
1 GPI1
2 GPI2
3 GPI3
4 GPI4
5 GND
6 GPI5
7 GPI6
8 GPI7
9 GPI8
●
DC IN terminal
Pin No. Signal name
1 GND
2 GND
3 24 VDC
4 24 VDC
●
DC OUT terminal on the main unit
Pin No. Signal name
1 GND
2 NC
(no connection)
3 NC
(no connection)
4 5 VDC
HIROSE P/N: HR10A-7R-4S(74)
Recommended plug
HIROSE P/N: HR10A-7P-4P(74)
●
DC OUT terminal of AC adapter
Pin No. Signal name
1 GND
2 GND
3 24 VDC
4 24 VDC
