Chapter 5 Reference
5-2 Folding the EZ-UP stand
Perform the following procedures to fold the stand when re-packing a monitor
withanEZ-UPstand.
1
Remove the cable holder.
2

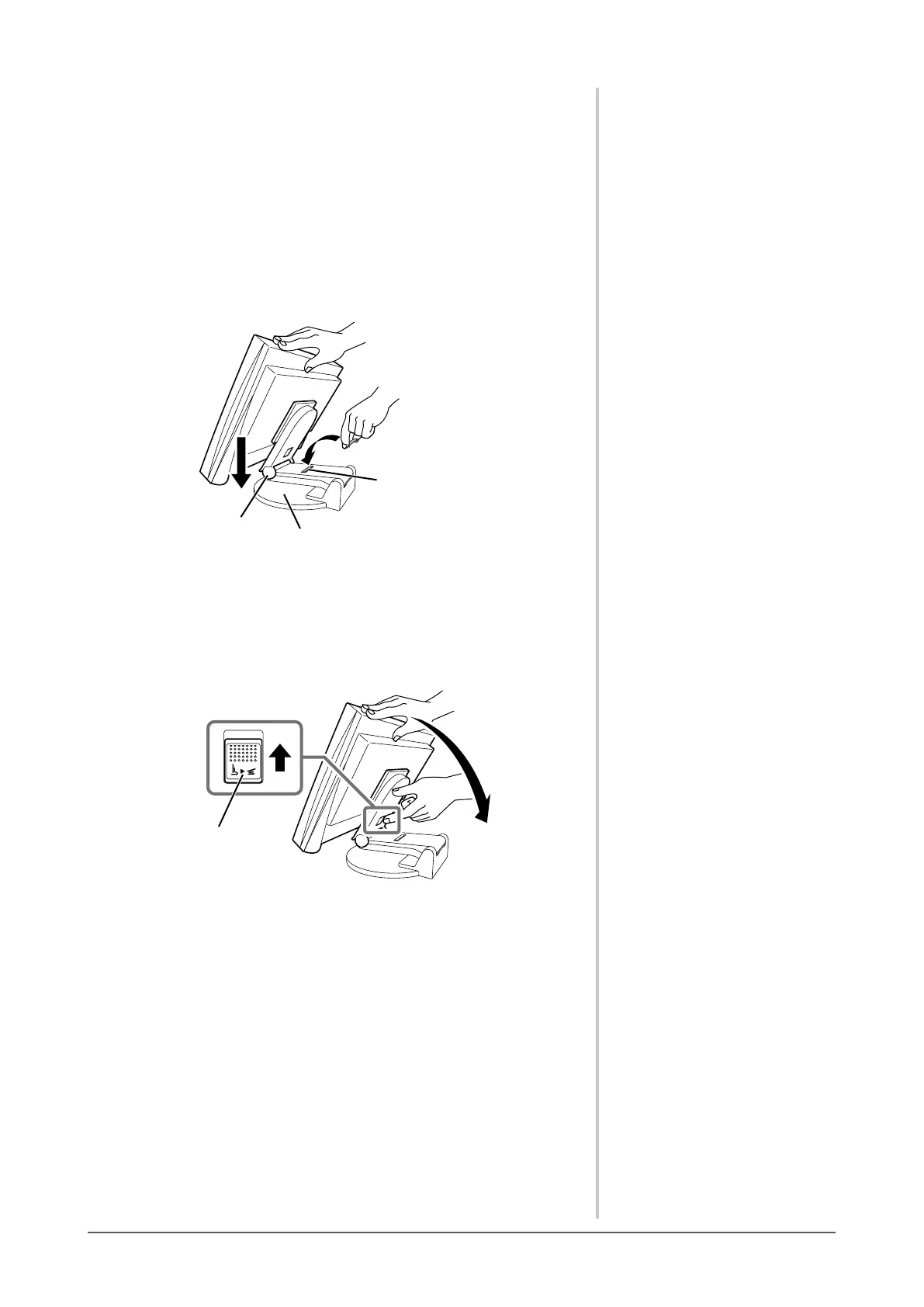

Lower the monitor screen position until the hinge of the stand
touchesthestandbase,andattachthelockmetaltting.
Adjust the monitor angle so as the monitor screen not to touch the stand
base.
Hinge
Stand Base
Lock metal fitting
3
Fall the monitor screen backward with keeping slide-up the
“Unlock” knob.
When maximally tilting (25º) the monitor screen backward, the “Unlock”
knobmaybehardtobeslid-up.Then,slightlytiltupthemonitorto
verticaldirectionandslide-upthe“Unlock”knob.
“Unlock” knob
