Chapter 5 Reference

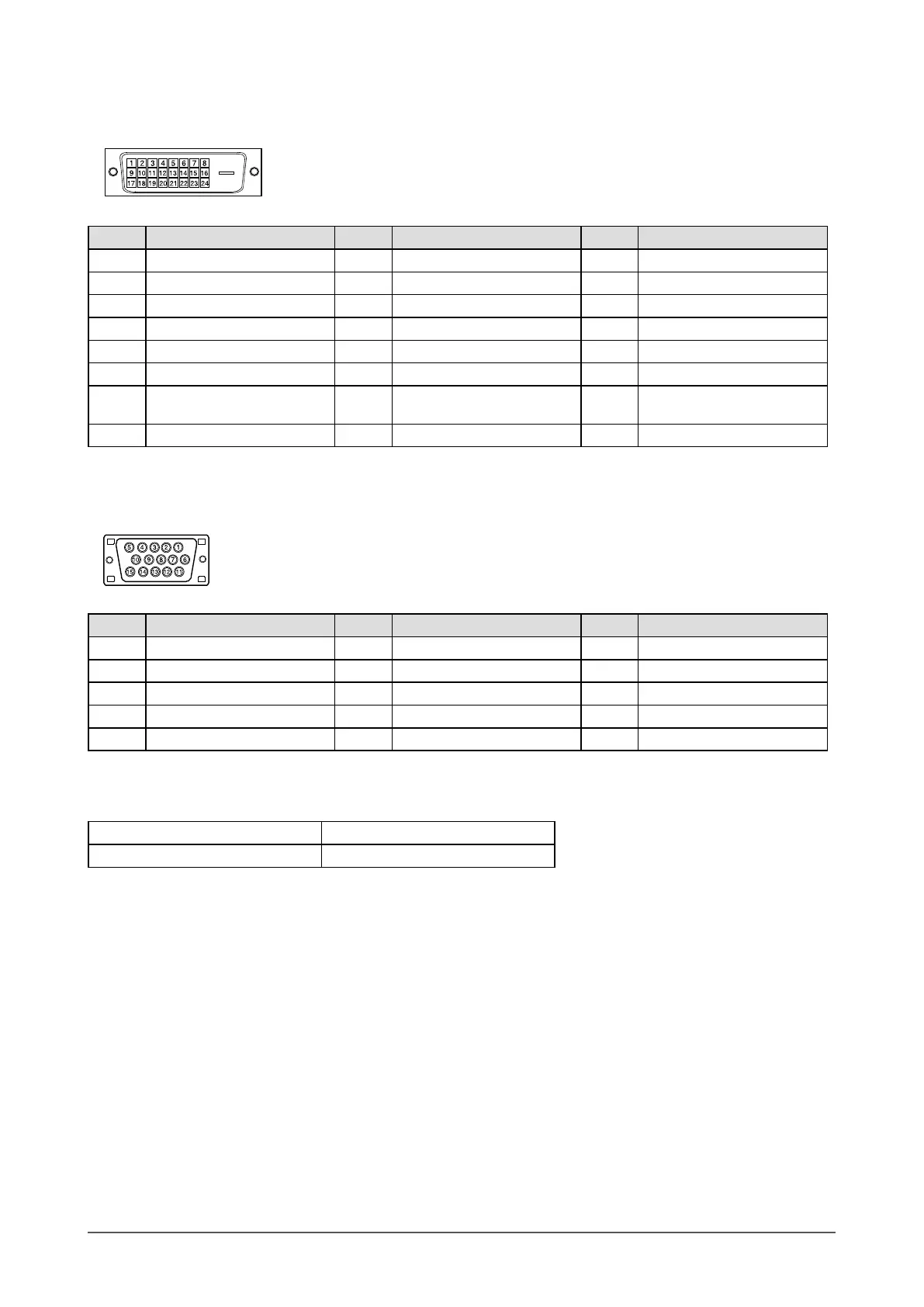

Connector Pin Assignment
• DVI-D connector
Pin No. Signal Pin No. Signal Pin No. Signal
1 T.M.D.S. Data 2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0-
2 T.M.D.S. Data 2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+
3 T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield 19 T.M.D.S. Data0/5 Shield
4 NC* 12 NC* 20 NC*
5 NC* 13 NC* 21 NC*
6 DDC Clock (SCL) 14 +5V Power 22 T.M.D.S. Clock shield
7 DDC Data (SDA) 15 Ground (return for +5V,
Hsync, and Vsync)
23 T.M.D.S. Clock+
8 NC* 16 Hot Plug Detect 24 T.M.D.S. Clock-
(NC*: No Connection)
• D-Sub mini 15-pin connector
Pin No. Signal Pin No. Signal Pin No. Signal
1 Red video 6 Red video ground 11 NC*
2 Green video 7 Green video ground 12 Data (SDA)
3 Blue video 8 Blue video ground 13 H. Sync
4 NC* 9 NC* 14 V. Sync
5 Ground 10 Ground 15 Clock (SCL)
(NC*: No Connection)
Accessories List
Cleaning Kit EIZO ScreenCleaner
Speaker Unit i•Sound L3
*
*Maynotallowedtoattachtheoptionspeakerdependingonthestandtype.
Forthelatestinformationabouttheaccessories,refertoourwebsite.
http://www.eizo.com
