Chapter 3 Connecting Cables
3-1 Connecting Two PCs to the Monitor
Two PCs can be connected to the monitor through the DVI-I and the D-Sub
mini 15 pin connector on the back of the monitor.

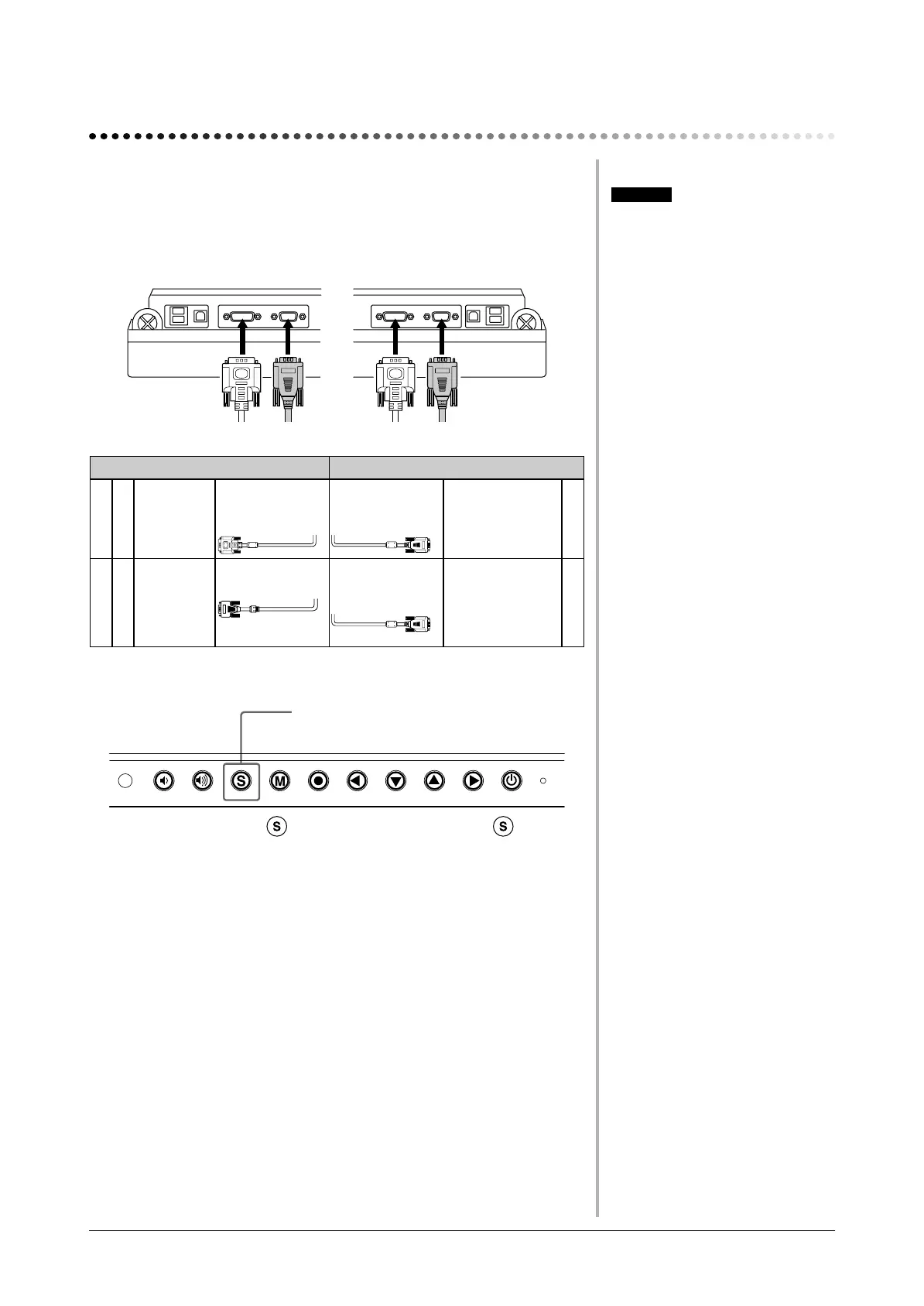

Connection examples
S2031W S2431W
PC 1 PC 2
Example 1
Digital
DVI Signal cable
(supplied with
FD-C39)
Signal cable
(supplied
MD-C87)
D-sub mini 15-pin
Analog
Example 2
Analog
D-sub mini
15-pin
Signal cable
(FD-C16 option)
Signal cable
(supplied
MD-C87)
D-sub mini 15-pin
Analog
Selecting input signal
Input Signal Selection button
Switch the input signal with . Input signal switches each time is pressed.
When the signal is switched, the active signal type (Analog or Digital) appears
at the top right corner of the screen.
Chapter 3 Connecting Cables
Attention
• When using an optional signal cable
(FD-C16), be sure to connect the
D-sub mini 15-pin connector to the
PC, and the DVI-I connector to the
monitor. Wrong connection may
result in no picture display.
