Chapter 5 Reference
Chapter 5 Reference
5-1 Attaching an Arm
The stand can be removed and replaced with an arm (or another stand) to be
attached to the monitor. Use an arm or stand of EIZO option.
[Attaching]
1
Lay the LCD monitor on a soft cloth spread over on a stable
surface with the panel surface facing down.
2

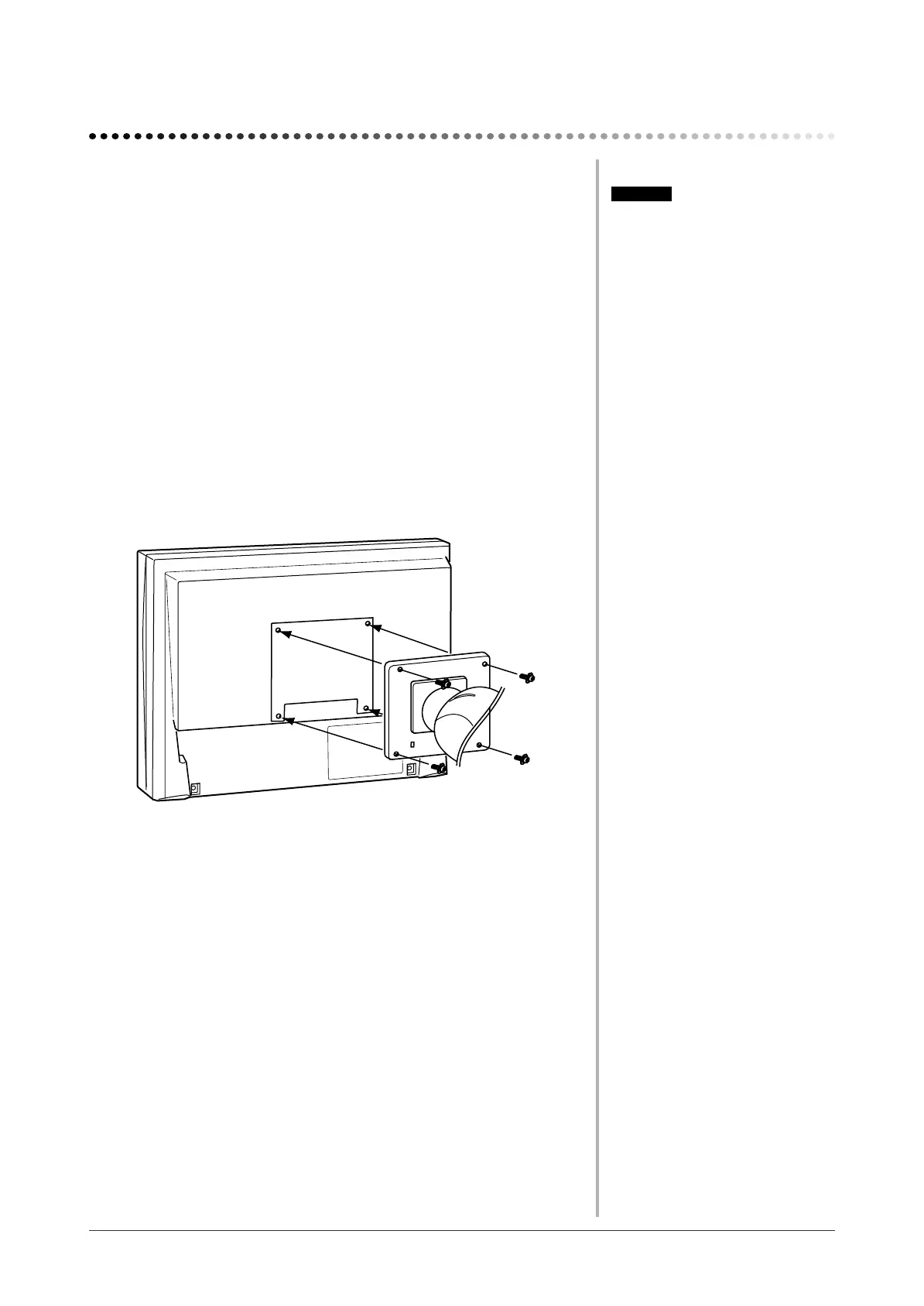

Remove the stand. (Prepare a screwdriver.)
Unscrew the four screws securing the unit and the stand with the
screwdriver.
3
Attach the monitor to the arm or stand.
Secure the monitor to the arm or stand using the screws specifi ed in the
user’s manual of the arm or stand.
Attention
• When attaching an arm or stand,
follow the instructions of their user’s
manual.
• When using another manufacturer’s
arm or stand, confi rm the following in
advance and select one conforming to
the VESA standard. Use the M4 × 12
screws supplied with this monitor.
– Clearance between the screw holes:
100 mm × 100 mm
– Thickness of plate: 2.6 mm
– Strong enough to support weight of
the monitor unit (except the stand)
and attachments such as cables.
• Attach an arm or stand to meet the
following tilt angles of the monitor.
– Up 40 degrees, down 0 degrees
(vertical display, 90 degrees
clockwise)
• Connect the cables after attaching an
arm.
S2031W_S2431W_UM_EN.indd 29S2031W_S2431W_UM_EN.indd 29 3/29/2007 10:50:53 AM3/29/2007 10:50:53 AM
