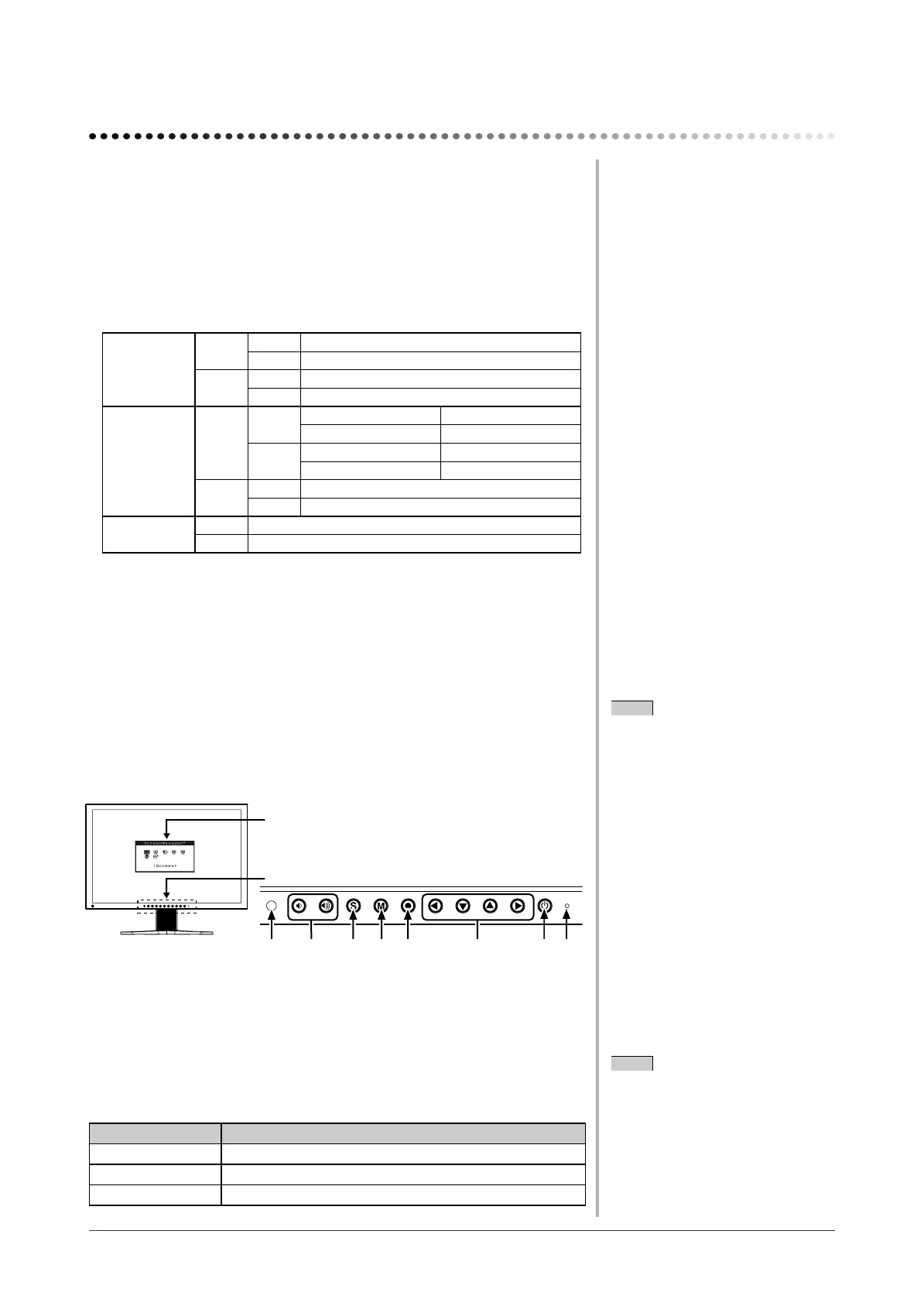

Chapter 1 Overview and Features
Chapter 1 Features and Overview
Thank you very much for choosing an EIZO color LCD monitor.
1-1 Features
• 20.1"(S2031W)/24.1"(S2431W) wide format LCD
• Applicable to HDCP
• Stereo speakers
• Dual-input compliant (DVI-I and D-Sub mini 15-pin connectors)
• DVI digital input (TMDS) compliant
• Horizontal scan frequency, Vertical scan frequency and Resolution are as follows;
Horizontal scan
frequency
Analog S2031W 24 - 82 kHz
S2431W 24 - 94 kHz
Digital S2031W 31 - 65 kHz
S2431W 31 - 76 kHz
Vertical scan
frequency
Analog S2031W 49 - 86 Hz 49 - 61 Hz (1680 × 1050)
49 - 76 Hz (1280 × 1024)
S2431W 49 - 86 Hz 49 - 61 Hz (1920 × 1200)
49 - 76 Hz (1600 × 1200)
Digital S2031W 59 - 61 Hz (VGA TEXT 69 - 71 Hz)
S2431W 59 - 61 Hz (VGA TEXT 69 - 71 Hz)
Resolution S2031W 1680 dots × 1050 lines
S2431W 1920 dots × 1200 lines
• Compatible with frame synchronization mode 59 - 61 Hz
* Only if the [Full Screen] is selected from the <Screen Size>.
• Smoothing (soft - sharp) function for adjustment of enlarged images
• FineContrast mode to allow the best mode for screen display
• The utility software “ScreenManager Pro for LCD” (for Windows) to control
the monitor from a PC with mouse/keyboard is included (refer to the EIZO
LCD Utility Disk).
•
BrightRegulator function incorporate
•
Self AutoAdjust function incorporate
•
Height adjustable stand
1-2 Buttons and Indicators
12 345 6 78
Button
Adjustment menu (*ScreenManager
®
)
1. Sensor (BrightRegulator)
2. Volume control button (Up, Down)
3. Input signal selection button
4. Mode button
5. Enter button
6. Control buttons (Left, Down, Up, Right)
7. Power button
8. Power indicator
Indicator status Operation status
Blue The screen is displayed
Orange Power saving
Off Power off
* ScreenManager
®
is an EIZO’s nickname of the Adjustment menu.
NOTE
• While the screen is displayed, the
power indicator that is lighting
blue can be turned off (see “Power
Indicator/EIZO Logo Display
Setting,” on page 21).
• For the power indicator status with
“Off Timer” set, refer to “To set
monitor power-off time” on page 18.
NOTE
• The stand of the unit can be replaced
with an arm or another stand. (Refer
to “5-1 Attaching an Arm” on page
29.)
