35
Chapter 5 Reference

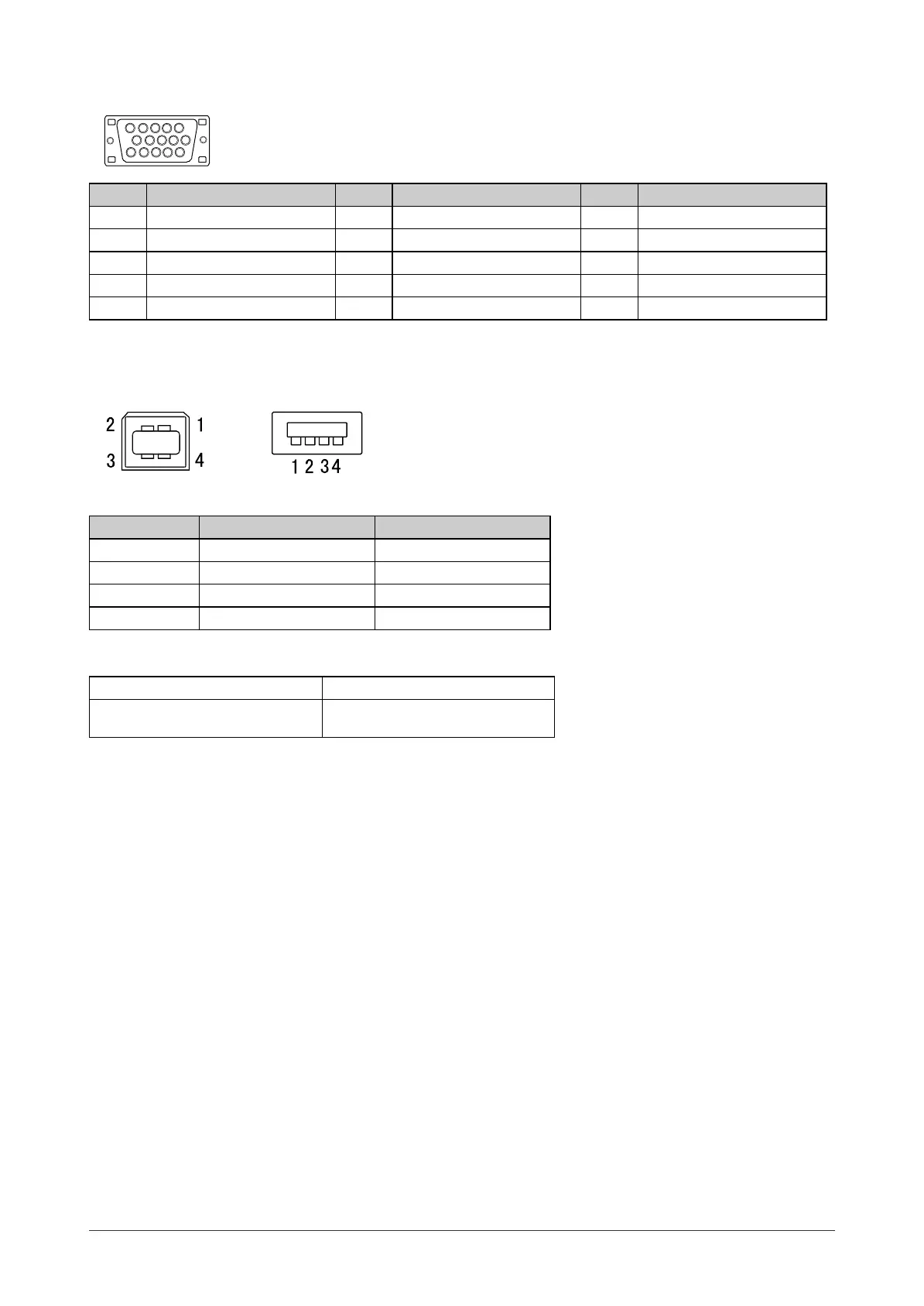

• D-sub mini 15-pin connector
5
1
3
4
2
8
7
6
9
10
12
1314
15
11
Pin No.
Signal
Pin No.
Signal
Pin No.
Signal
1 Red 6 Red ground 11 NC*
2 Green 7 Green ground 12 Data (SDA)
3 Blue 8 Blue ground 13 H. Sync
4 NC* 9 NC* 14 V. Sync
5 Ground 10 Ground 15 Clock (SCL)
(NC*: No Connection)
• USB port
Upstream
Series B connector
Downstream
Series A connector
Contact No. Signal Remarks
1 VCC Cable power
2 – Data Serial data
3 + Data Serial data
4 Ground Cable ground
Option List
Cleaning Kit EIZO ScreenCleaner
Signal Cable
FD-C16
FD-C39
S2031W_S2431W_UM_EN.indd 35S2031W_S2431W_UM_EN.indd 35 3/29/2007 10:50:55 AM3/29/2007 10:50:55 AM
