EK-Quantum Vector2 EVO Strix-TUF RTX 4090 - Page 11

- 11 -

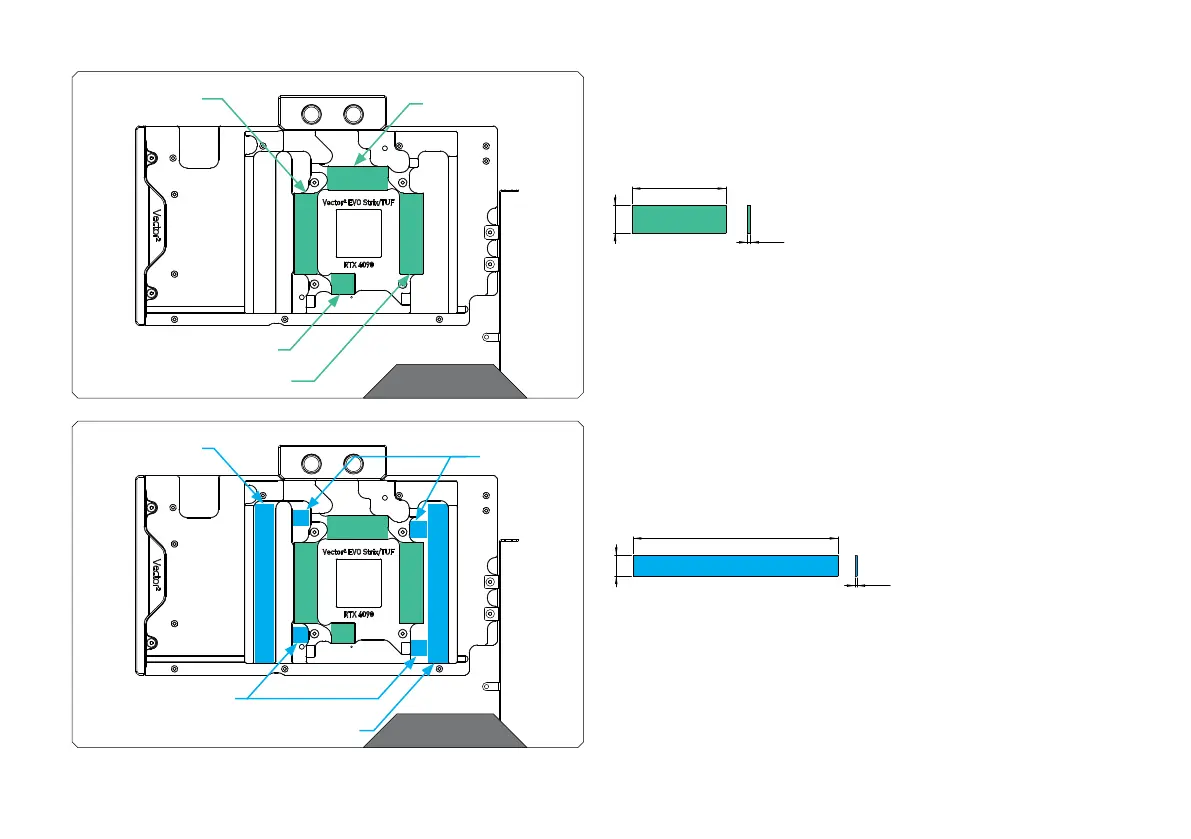

STEP 2
Use three (3) Thermal Pads- VRAM – (55x16x2 mm).
From one (1) of them cut away a peace of length 15 mm.
STEP 2
Thermal Pad- VRAM – (55x16x2 mm)
55 mm
16 mm
2 mm
55x16x2 mm
40x16x2 mm
55x16x2 mm
15x16x2 mm
STEP 3
Use two (2) Thermal Pads- Inductor – (120x12x1 mm)
From each of them cut two (2) pieces of length 7 mm.
STEP 3
106x12x1 mm
7x12x1 mm
106x12x1 mm
7x12x1 mm
Thermal Pad- Inductor – (120x12x1 mm)
120 mm
12 mm
1 mm
