EK-Quantum Vector2 EVO Strix-TUF RTX 4090 - Technical Specifications and Water Block Parts; Nickel Plexi

- 6 -

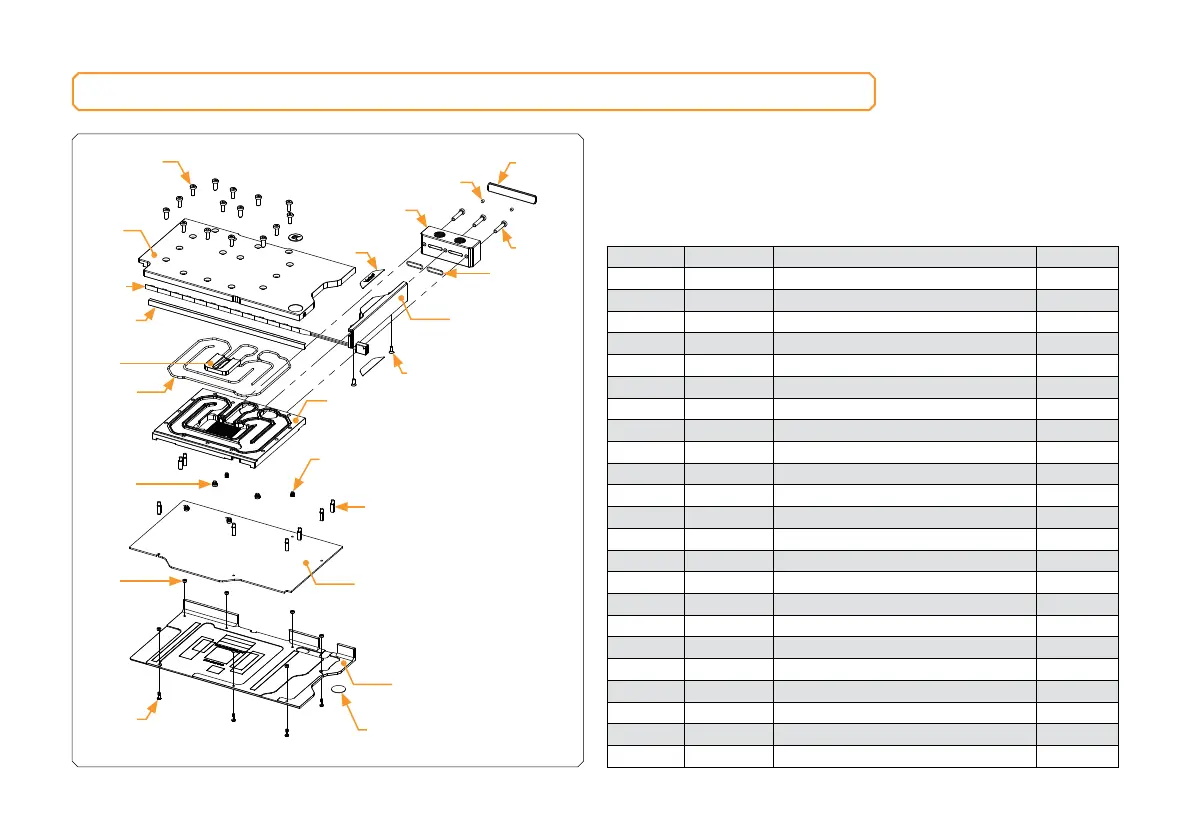

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS
NICKEL PLEXI
- Dimensions: (L x H x W): 241 x 153 x 27 mm
- D-RGB LED count: 12
- D-RGB cable length: 50 cm
- D-RGB connector 3-pin 5V digital LED header
Position EAN Description Quantity
1 105988 FC Terminal (Acetal) 1
2 8311 Screw M4 x 20 DIN7984 3
3 103942 Terminal Badge 1
4 104216 Disc magnet 3 x 3 2
5 104106 Terminal OR - 14 x 1 mm 2
6 106982 Stand out (Acetal) 1
7 106957 LED Cover (Nat. Elox) 1
8 8208 Screw M3 x 8 7991DIN 2
9 103964 Mylar sticker 2
10 101556 LED D-RGB strip 1
11 106967 Coldplate (Ni) 1
12 103988 Standoff M4-M2.5 x 3 mm 4
13 103987 Standoff M3.5-M2.5 x 3 mm 2
14 103986 Standoff M3.5-M2.5 x 11.3 mm 8
15 106133 Plexi insert 1
16 106975 Top Plate (Plexi) 1
17 9024 Screw M4 x 10 DIN7984 15
18 100663 EK Badge 2
19 106972 OR - Vector
2
EVO Strix TUF RTX 1
20 106960 Backplate (Bl. Elox) 1
21 104188 Standoff fi 4.5/2.5 mm 7
22 104187 Screw M2.5 x 8 AX1n 7
23 107524 PCB Cardboard 1
3
13
11
5
14
2
8
18
23
6
20
17
4
1
9
16
10
12
21
15
19
7
22
