EK-Quantum Vector2 EVO Strix-TUF RTX 4090 - Page 17

- 17 -

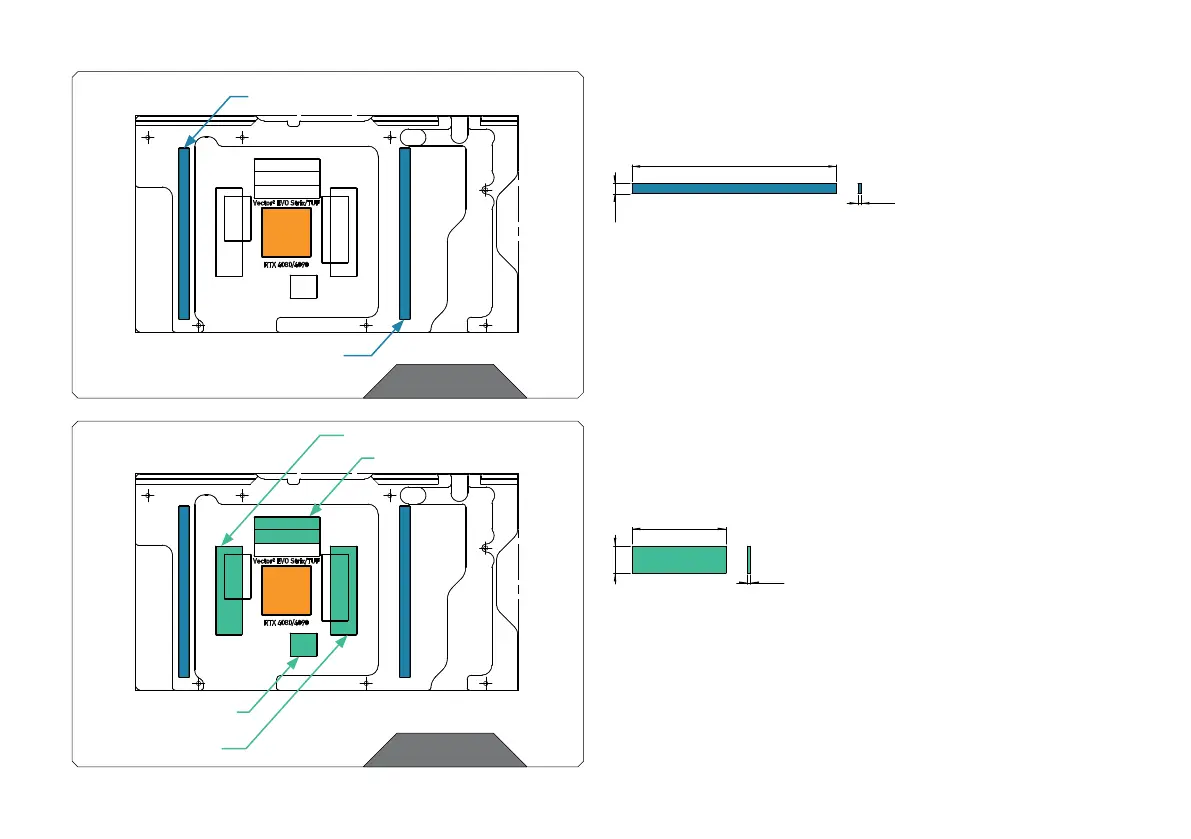

STEP 3
Place Thermal Pad- VRM - (120x6x2 mm) on the marked position.
STEP 3
Thermal Pad- VRAM – (55x16x2 mm)
55 mm
16 mm
2 mm
15x16x2 mm
55x16x2 mm
55x16x2 mm
40x16x2 mm
STEP 4
Use three (3) Thermal Pads- VRAM – (55x16x2 mm).
From one (1) of them cut away a peace of length 15 mm.
STEP 4
Thermal Pad - VRM – (120x6x2 mm)
120 mm
6 mm
2 mm
120x6x2 mm
120x6x2 mm
