A12 INSTALLATION MANUAL
Two Room Stereo Zone
By using the A12’s Buffered Loop Outputs, an additional pair of speakers can be added to a zone. In this example,
both pairs of speakers will ramp volume up and down simultaneously.
Two Room Stereo Zone
• Zone 1 Output to Line Inputs 1 & 2
• Line Outputs 1 & 2 to Line Inputs 3 & 4
• Bus Mode DIP Switches in Default DIRECT Position
All Speakers Volume Ramps Up & Down Together
ZONE OUTPUTS
A6

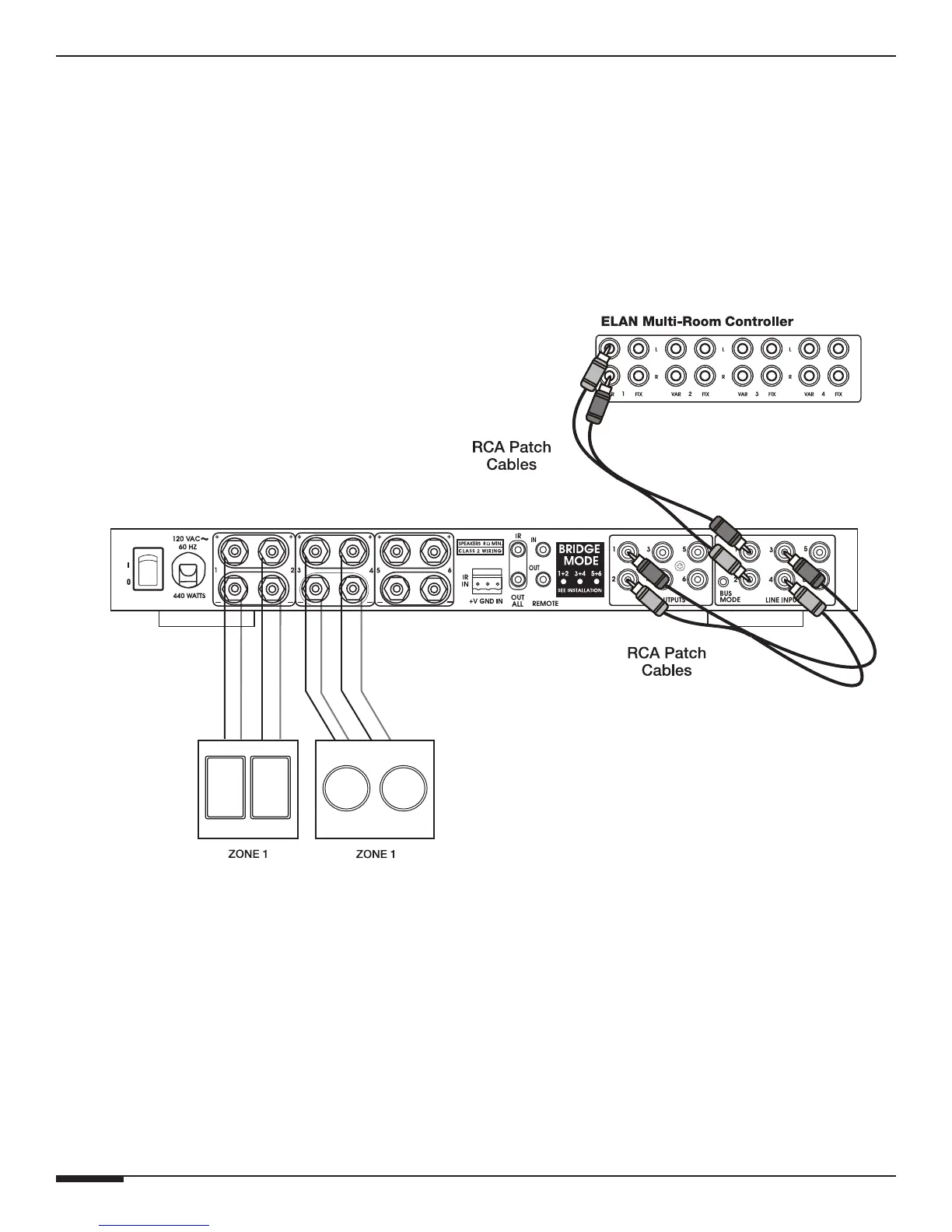

Figure 2-3: Two Room Stereo Zone
