A12 INSTALLATION MANUAL
S66A Sub-Zones
ELAN’s S66A Integrated Multi-Room Controller has built-in amplification for six stereo zones as well as six sets of
preamp outputs for the addition of sub-zones. The A12 is ideally suited to amplify these subzones using rotary or
electronic volume controls if separate volume up/down functionality is desired in the sub-zones.
S66A Sub-Zones
• Preamp Output 1 & 2 to Line Inputs 1 & 2
• Preamp Output 3 & 4 to Line Inputs 3 & 4
• Preamp Output 5 & 6 to Line Inputs 5 & 6
• Volume Controls on Each Speaker Output
• Bus Mode DIP Switches in Default DIRECT Position
Each Zone and Sub-Zone Has Independent Volume Control
Set S66A
ZONE PREAMP
OUTPUT MODE
DIP Switches
To Fixed
R
R
S66A
US
C

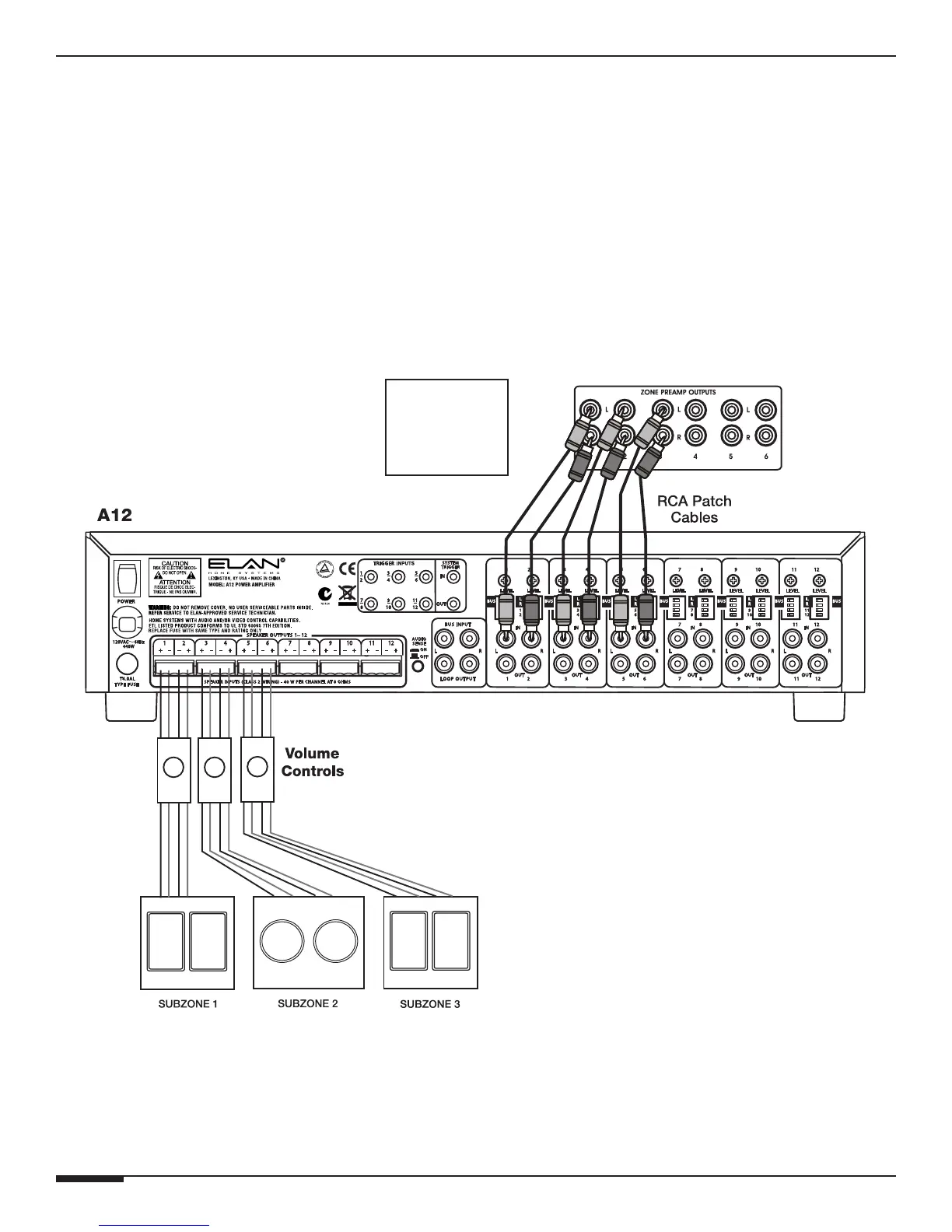

Figure 2-5: S66A Sub-Zones
