A12 INSTALLATION MANUAL
Stand-Alone System Examples
Stereo Bussing
The example below shows the preamp output of an A/V Receiver being distributed throughout the home in stereo
using the BUS INPUT of the A12. A second A12 can be added for six additional pairs of speakers via the Bus Loop
Outputs. Up to four A12s can be linked via LOOP OUTPUTs.
Stand-Alone System w/ A/V Receiver
• Bussed to Six Stereo Rooms
• Optional Second A12 Shown
• A/V receiver to BUS INPUTS of A12 #1
• LOOP OUTPUTS of A12 #1 to BUS INPUTS of A12 #2
All Speakers Volume Ramps Up & Down Together
X 6 Pairs
BUS DIP Switch Settings (both amplifiers)
2 3 4 5 6
A/V Receiver
L R
Pre-Outs
X 6 Pair
A12 #1
A12 #2
2 3 4 5 6
L
R
1
2
BUS
CH 1, 3, 5, 7, 9, 11
CH 2, 4, 6, 8, 10, 12
US
C
US
C

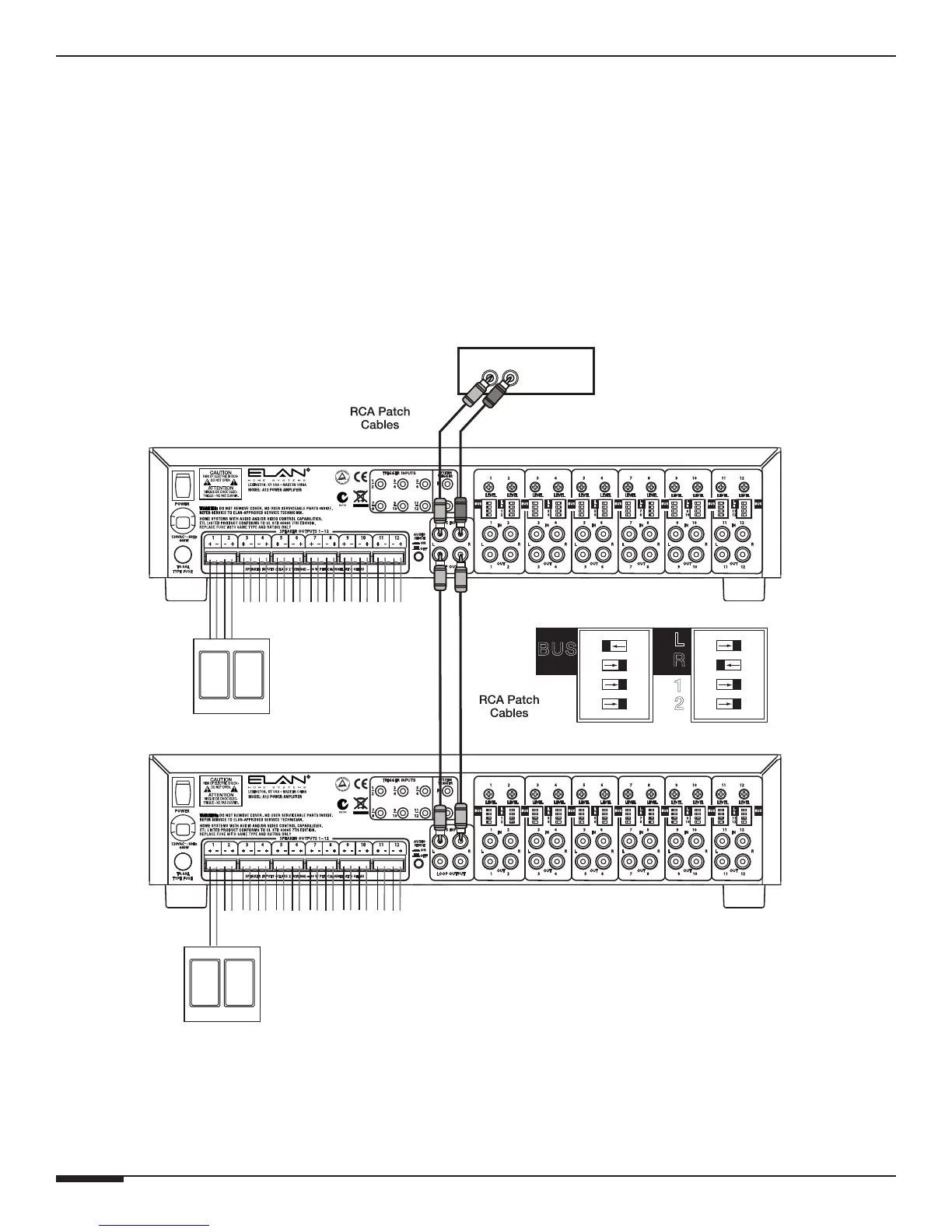

Figure 3-2: Stand-Alone System with A/V Receiver
