Elan A1240 - Stereo Zone W; Mono Sub-Zone

ELAN HOME SYSTEMS
Page 8 © ELAN Home Systems 2005 • All rights reserved.
A1240 INSTALLATION MANUAL
RCA ‘Y’
Cable
ZONE OUTPUTS

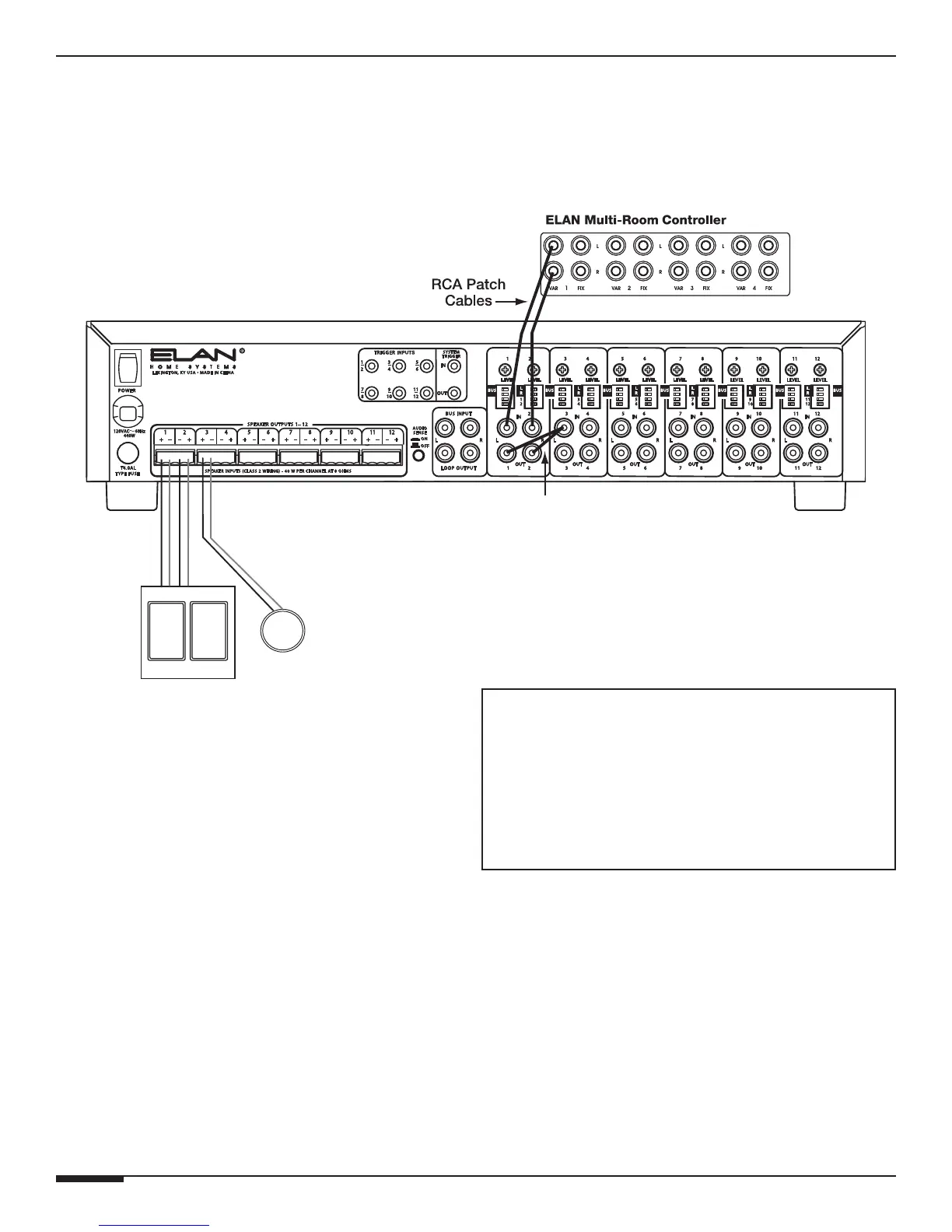

Stereo Zone w/ Mono Sub-Zone
Use the Loop Out Jacks and an RCA ‘Y’ cable to create mono sub-zones within a
stereo zone. This application is perfect for large rooms with smaller rooms attached
such as a Master Bedroom/Master Bath or Kitchen/Laundry Room.
Stereo Zone w/ Mono Sub-Zone
• Zone 1 Output to Line Inputs 1 & 2
• Line Outputs 1 & 2 to RCA ‘Y’ Cable
• RCA ‘Y’ Cable to Line Input 3
• Bus Mode DIP Switches in Default
DIRECT Position
All Speakers Volume Ramps Up & Down Together
