A1240 INSTALLATION MANUAL
ELAN Multi-Room System w/ Bussed Mono
Wide Coverage Zone

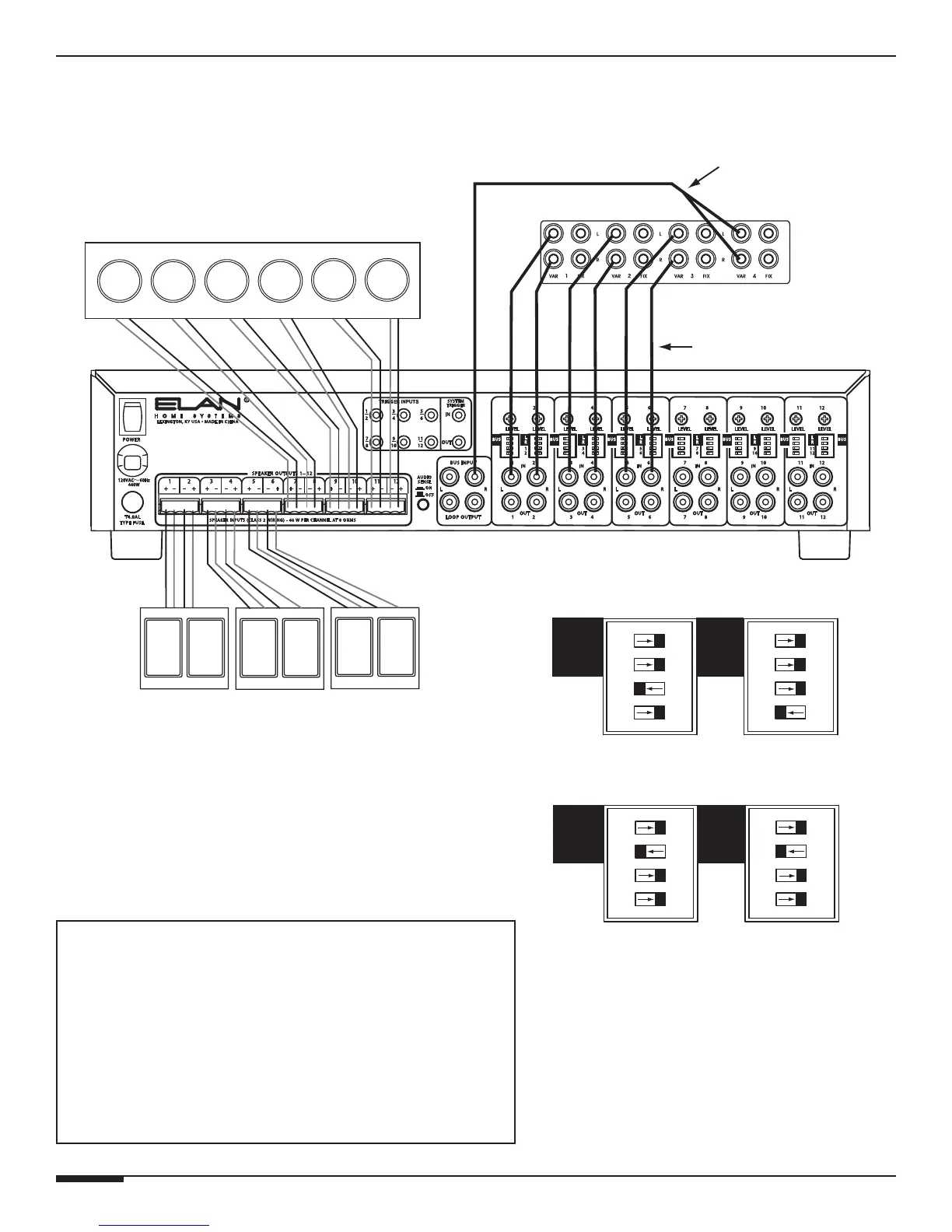

• ELAN Multi-Room Controller Zone Outputs 1-3 to A1240
Inputs 1-6
• ELAN Multi-Room Controller Zone Output 4 to A1240
BUS INPUT R Using RCA 'Y' Cable
Each Zone's Speakers Have Independent Volume
Wide Coverage Zone's Speakers Volume Ramps Up
& Down Together
ELAN Multi-Room Controller
A1240
Zone 1 Zone 2 Zone 3
Zone 4
Wide Coverage Mono Zone
RCA Patch
Cables
RCA ‘Y’
Cables
ZONE OUTPUTS
L
R
1
2
BUS
BUS
BUS DIP Switch Settings (CH 7-12)
CH 7, 9, 11
CH 8, 10, 12
L
R
1
2
BUS
BUS
BUS DIP Switch Settings (CH 1-6-Factory Default)
CH 1, 3, 5
CH 2, 4, 6
ELAN Multi-Room System w/ Bussed Mono Wide Coverage Zone
