Elan A1240 - System6 Sub-Zones

ELAN HOME SYSTEMS
© ELAN Home Systems 2005 • All rights reserved. Page 9
A1240 INSTALLATION MANUAL
Set S6
ZONE PREAMP
OUTPUT MODE
DIP Switches
To Fixed
System6 Sub-Zones
ELAN's System6 Integrated Multi-Room Controller has built-in amplification for six
stereo zones as well as six sets of preamp outputs for the addition of sub-zones.
The A1240 is ideally suited to amplify these subzones using rotary or electronic vol-
ume controls if separate volume up/down functionality is desired in the sub-zones.

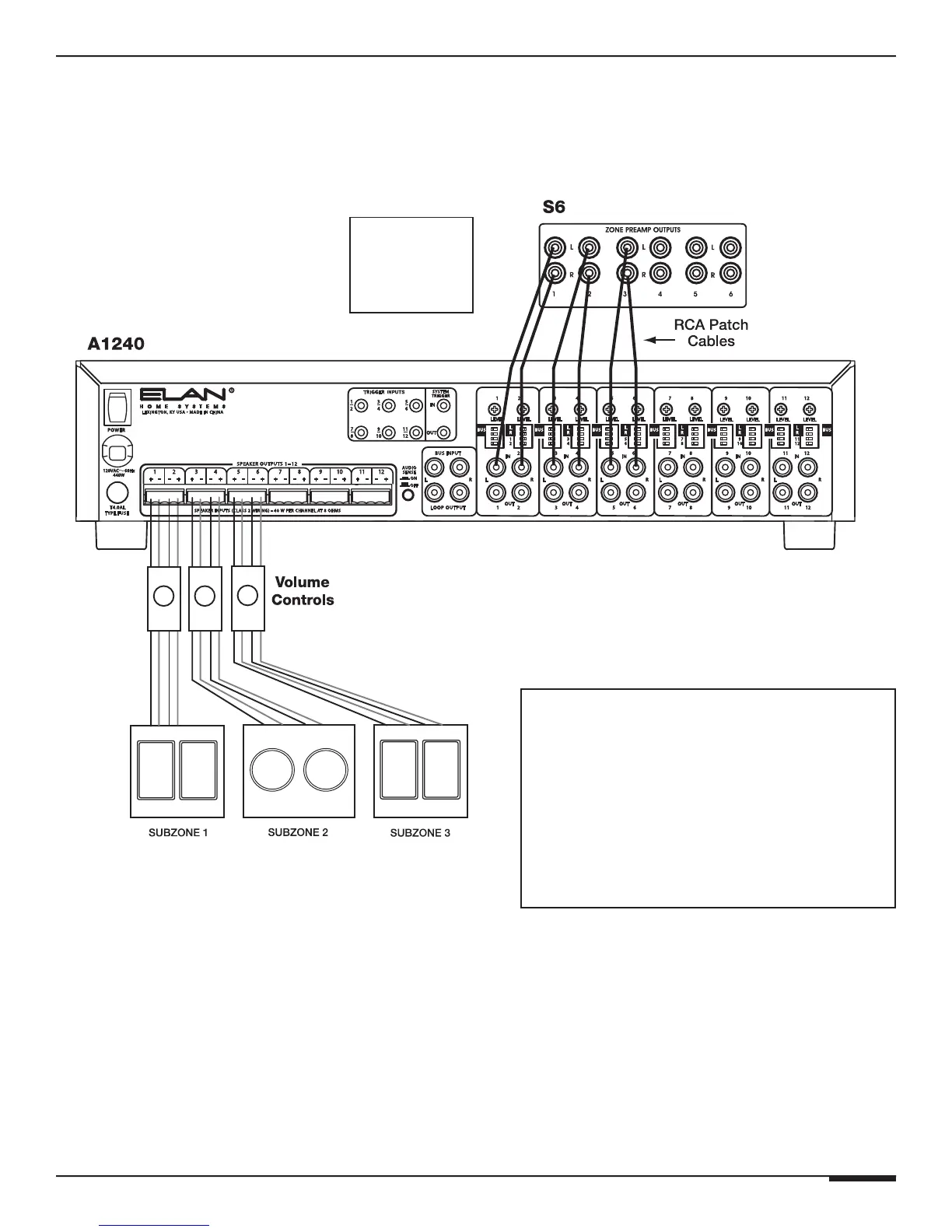

S6 Sub-Zones
• Preamp Output 1 & 2 to Line Inputs 1 & 2
• Preamp Output 3 & 4 to Line Inputs 3 & 4
• Preamp Output 5 & 6 to Line Inputs 5 & 6
• Volume Controls on Each Speaker Output
• Bus Mode DIP Switches in Default
DIRECT Position
Each Zone and Sub-Zone Has Independent
Volume Control
