ZONE OUTPUTS
Two Room Stereo Zone
By using the A1240’s Buffered Loop Outputs, an additional pair of speakers can be
added to a zone. In this example, both pairs of speakers will ramp volume up and
down simultaneously.

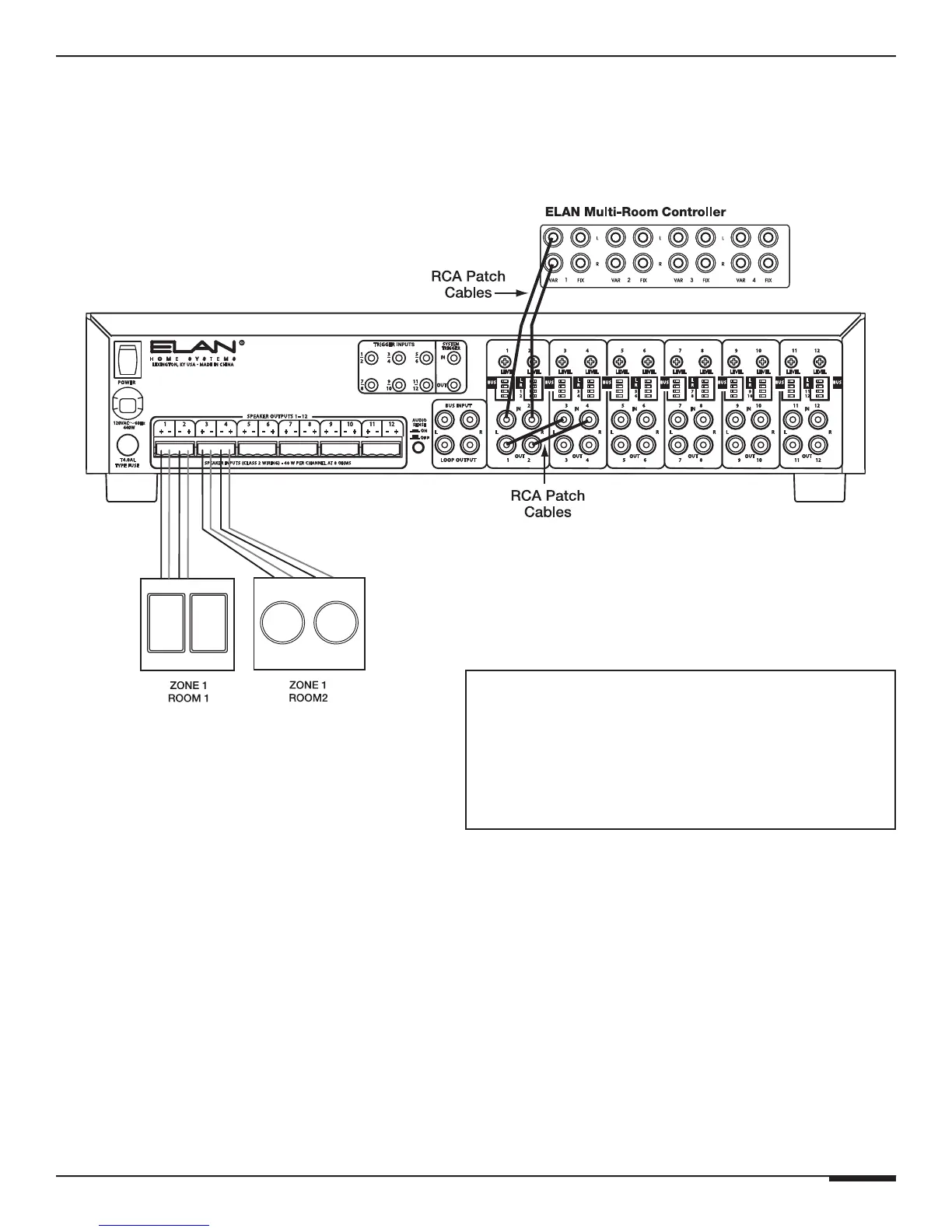

Two Room Stereo Zone
• Zone 1 Output to Line Inputs 1 & 2
• Line Outputs 1 & 2 to Line Inputs 3 & 4
• Bus Mode DIP Switches in Default DIRECT
Position
All Speakers Volume Ramps Up & Down Together
