ELAN Multi-Room System Examples
‘Bussing’ the audio from a Zone Output of an ELAN multi-room controller is an easy way to
create a large ‘wide coverage zone’ without using any additional patch cables. The follow-
ing diagrams show examples of how both stereo and mono ‘wide coverage zones’ may be
confi gured.

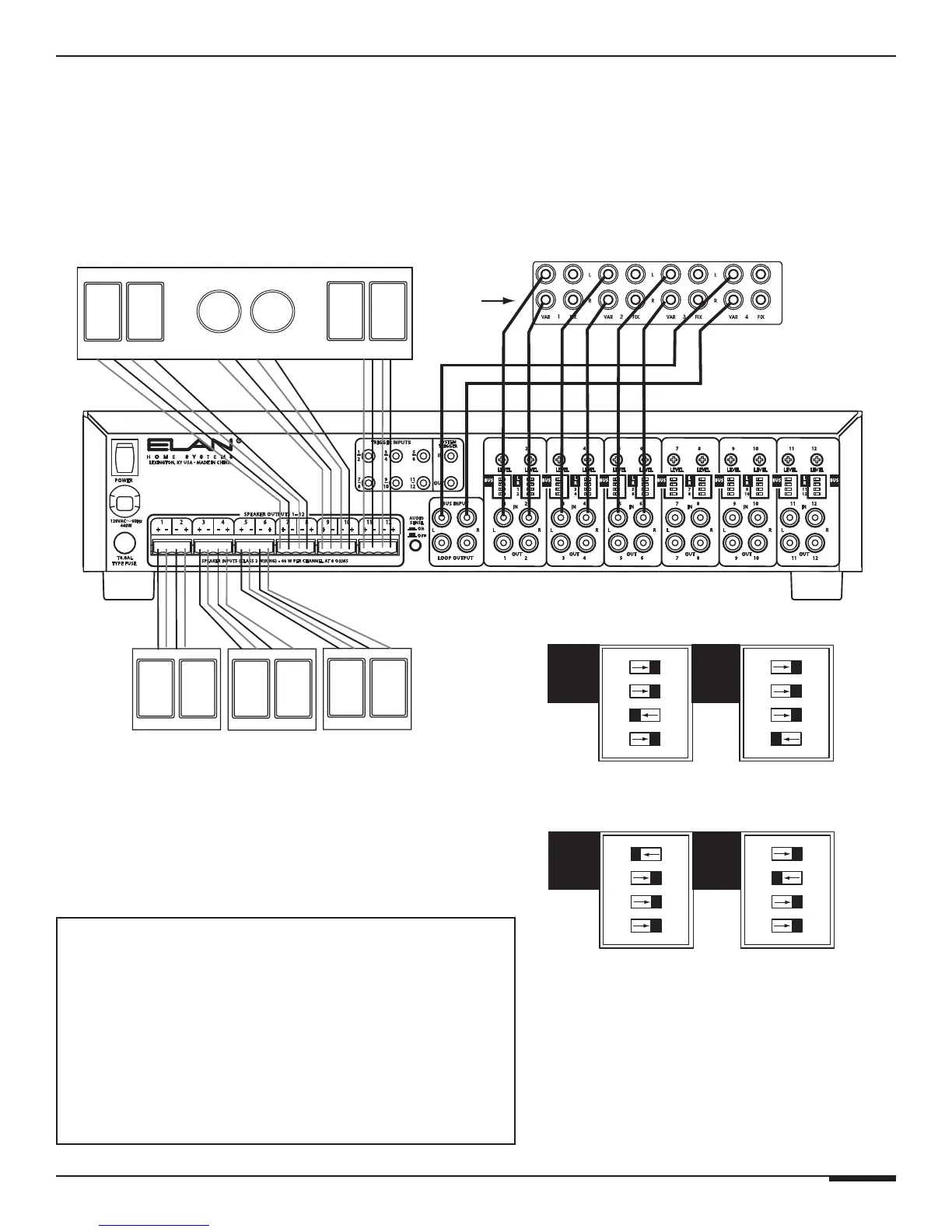

ELAN Multi-Room System w/ Bussed Stereo Wide Coverage Zone
ELAN Multi-Room Controller
A1240
L
R
1
2
BUS
BUS
BUS DIP Switch Settings (CH 7-12)
CH 7, 9, 11
CH 8, 10, 12
Zone 1 Zone 2 Zone 3
Zone 4
Wide Coverage Stereo Zone
RCA Patch
Cables
L
R
1
2
BUS
BUS
BUS DIP Switch Settings (CH 1-6-Factory Default)
CH 1, 3, 5
CH 2, 4, 6
ZONE OUTPUTS
ELAN Multi-Room System w/ Bussed Stereo
Wide Coverage Zone
• ELAN Multi-Room Controller Zone Outputs 1-3 to A1240
Inputs 1-6
• ELAN Multi-Room Controller Zone Output 4 to A1240
BUS INPUTs
Each Zone's Speakers Have Independent Volume
Wide Coverage Zone's Speakers Volume Ramps Up
& Down Together
