Stereo Zones
To create an independent stereo zone, simply connect the M86A’s Speaker Outputs to a
pair of speakers. Make sure to take into account the amplifier’s 8 Ohm minimum
impedance when choosing and configuring speakers. Volume is controlled at preamp
level. Any speakers connected to these channels ramp volume up/down together. Use a
TS2 touchpad, TS7 touchscreen or hand-held remote to control functions (including
volume) in zones with this configuration.

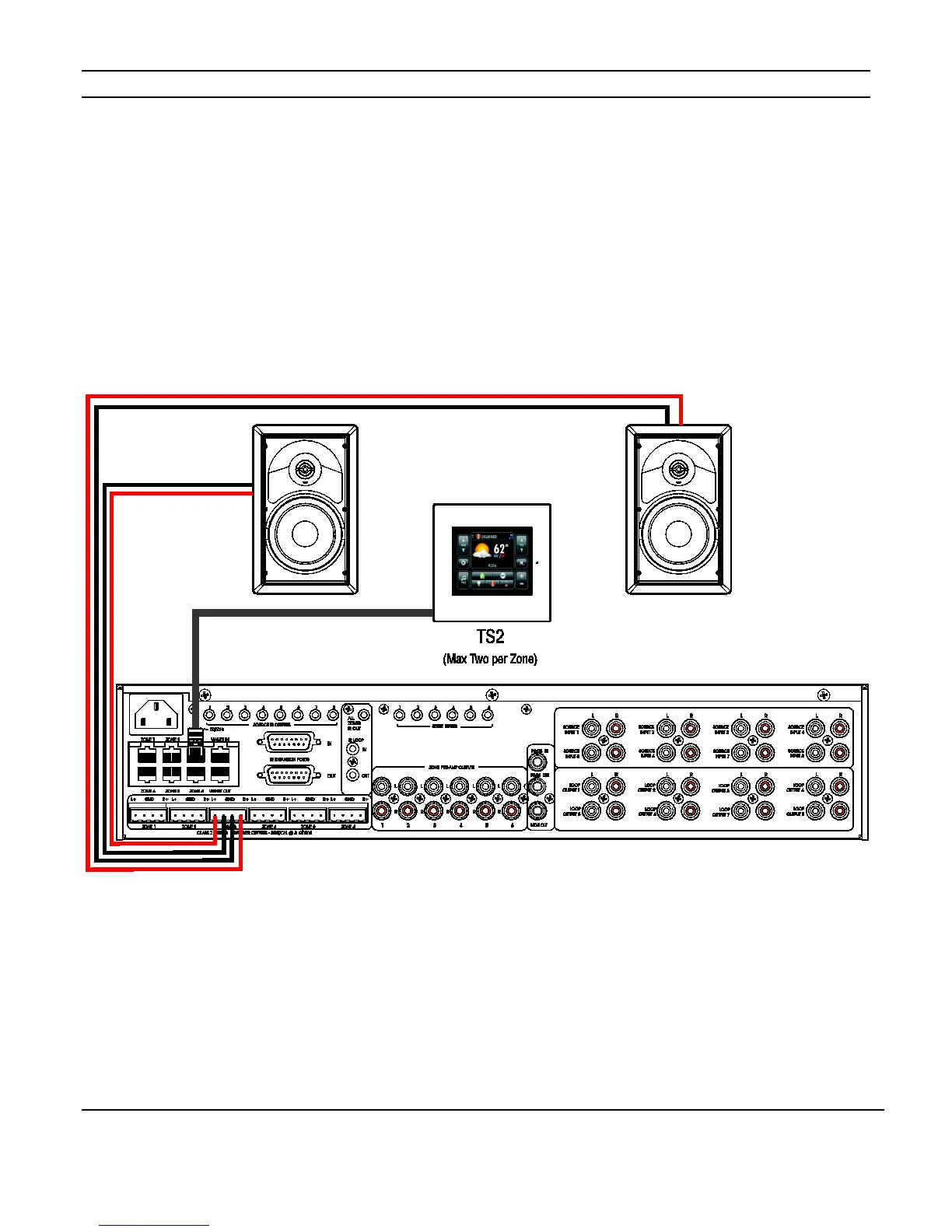

Figure 2-1: Typical stereo zone example.
