Source IR Output Connections
The M86A features 8 source-specific IR emitter outputs. Each of these outputs is active
only when the assigned source is selected. This makes it possible to use identical source
components and still have the capability of separate control. For sources such as a multi-
output music server, the ELAN configuration software can route IR for either output to the
same IR port, eliminating the need to use IR “Y” cables.
When connecting multiple M86A chassis, it is only necessary to connect IR controlled
sources to chassis # 1.

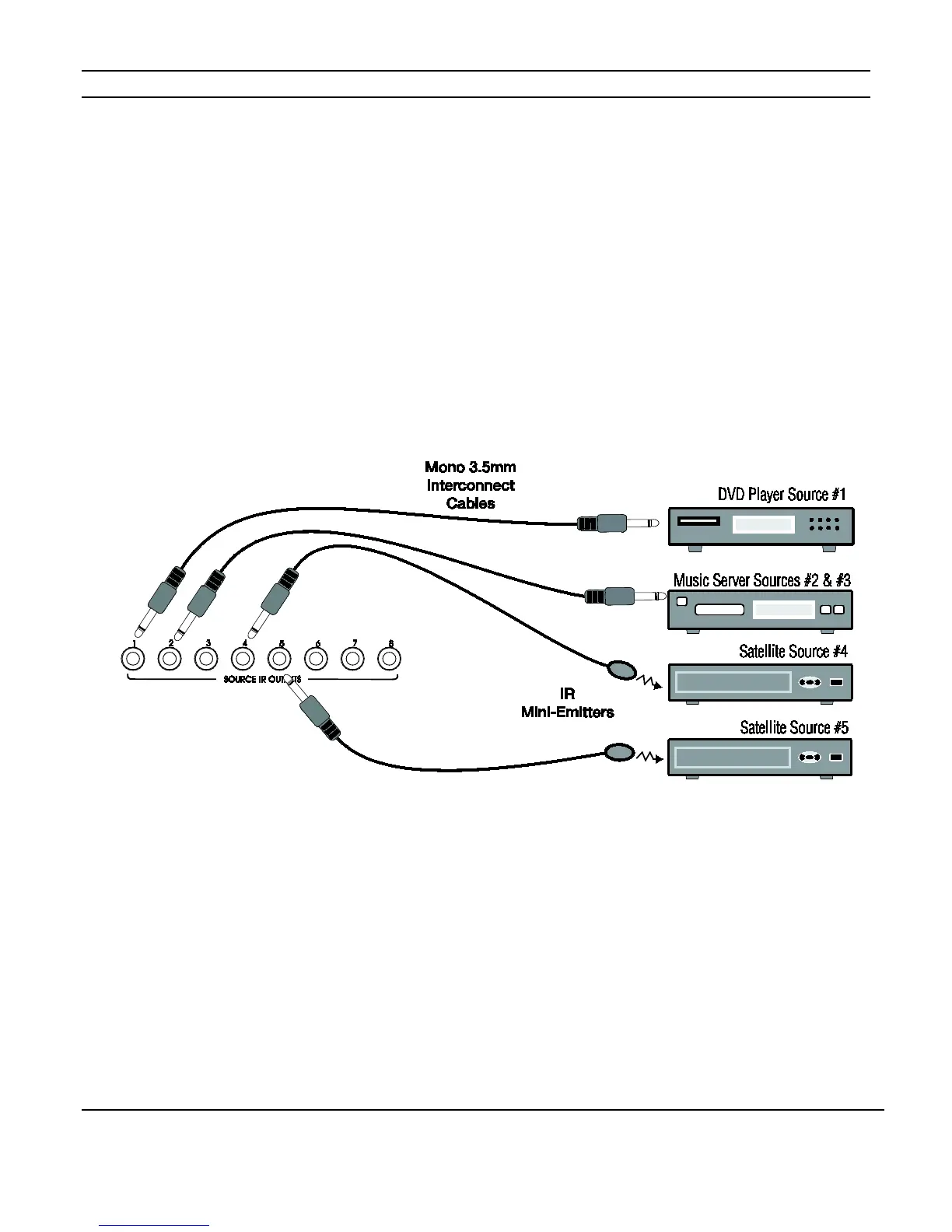

Figure 3-5: Source IR Outputs
