IR Loop Connections
The IR Loop Connection allows IR commands received by auxiliary M86A chassis to be
transmitted to the main chassis.
Connect the LOOP OUT of the MAIN chassis to the LOOP IN of the second chassis and
continue this process to all chassis.
This connection uses a 3.5mm Mono cable.

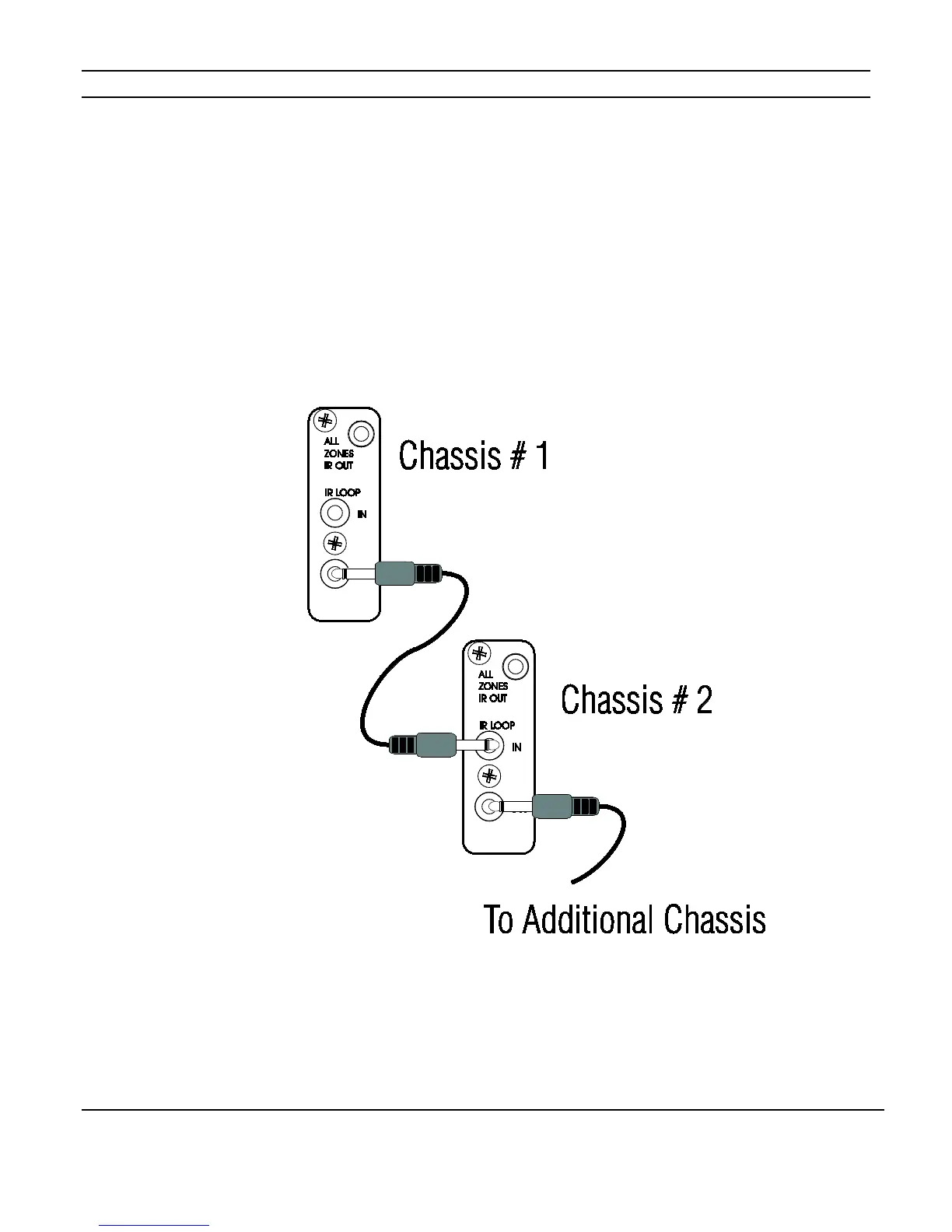

Figure 3-12: IR Loop Connection
