Front Panel LEDs
The M86A has 6 Zone Activity Status LEDs (one per zone), and a Power LED indicator.

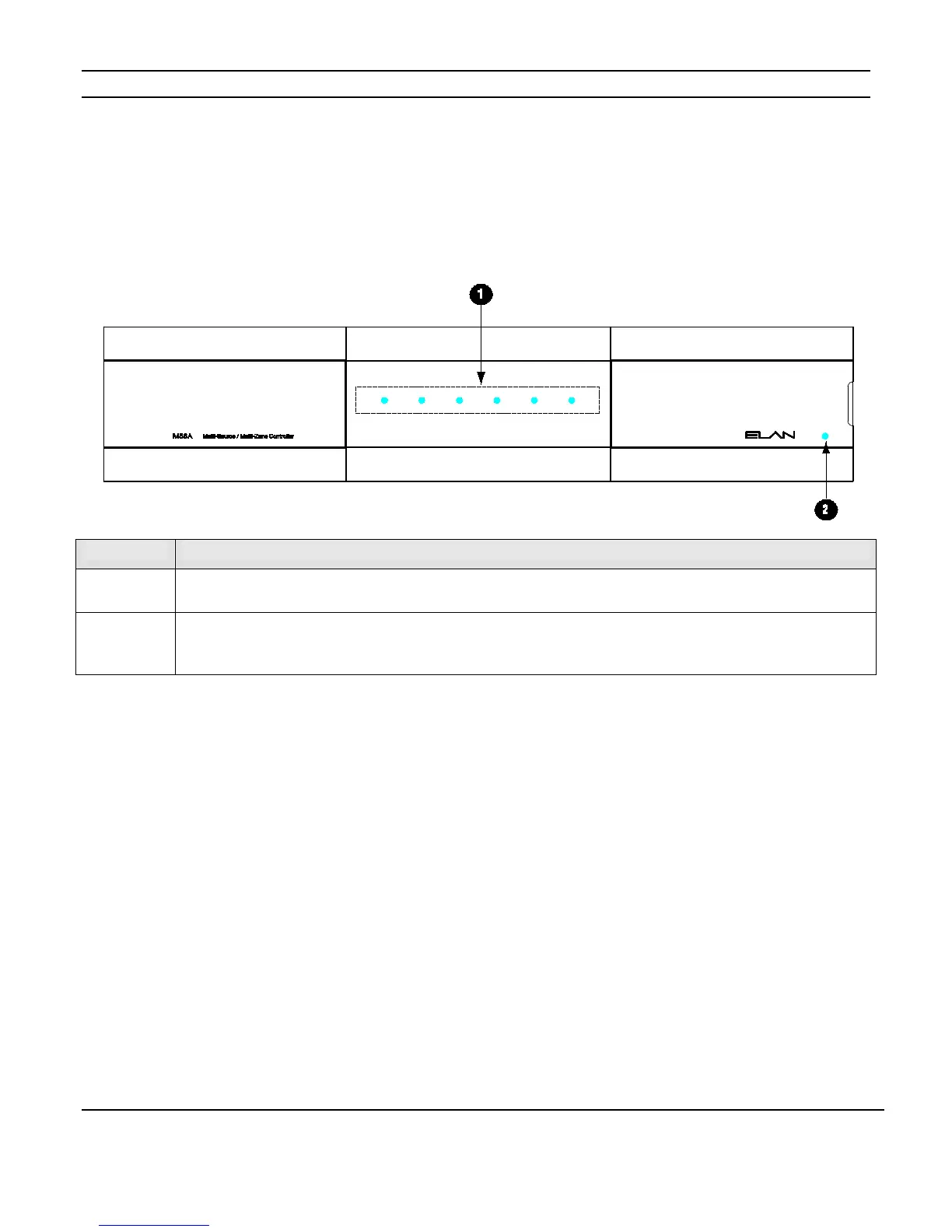

Figure 5-2: Front Panel LEDs
Item Function
1
Zone Status Indicators
Solid blue when the zone is on, Flickers when IR is being received in the zone
2
Power LED
Solid blue when the M86A has AC power, Slow blink if unit is overheating, Fast blink if unit has shut down due to high
temperature
