MEDIBURN30 22 D-115 Rev 010
www.elastec.com
Door Clamp
Adjuster Bolt
Door Gasket
Adjuster Bolts
Door Gasket
Adjuster Bolts

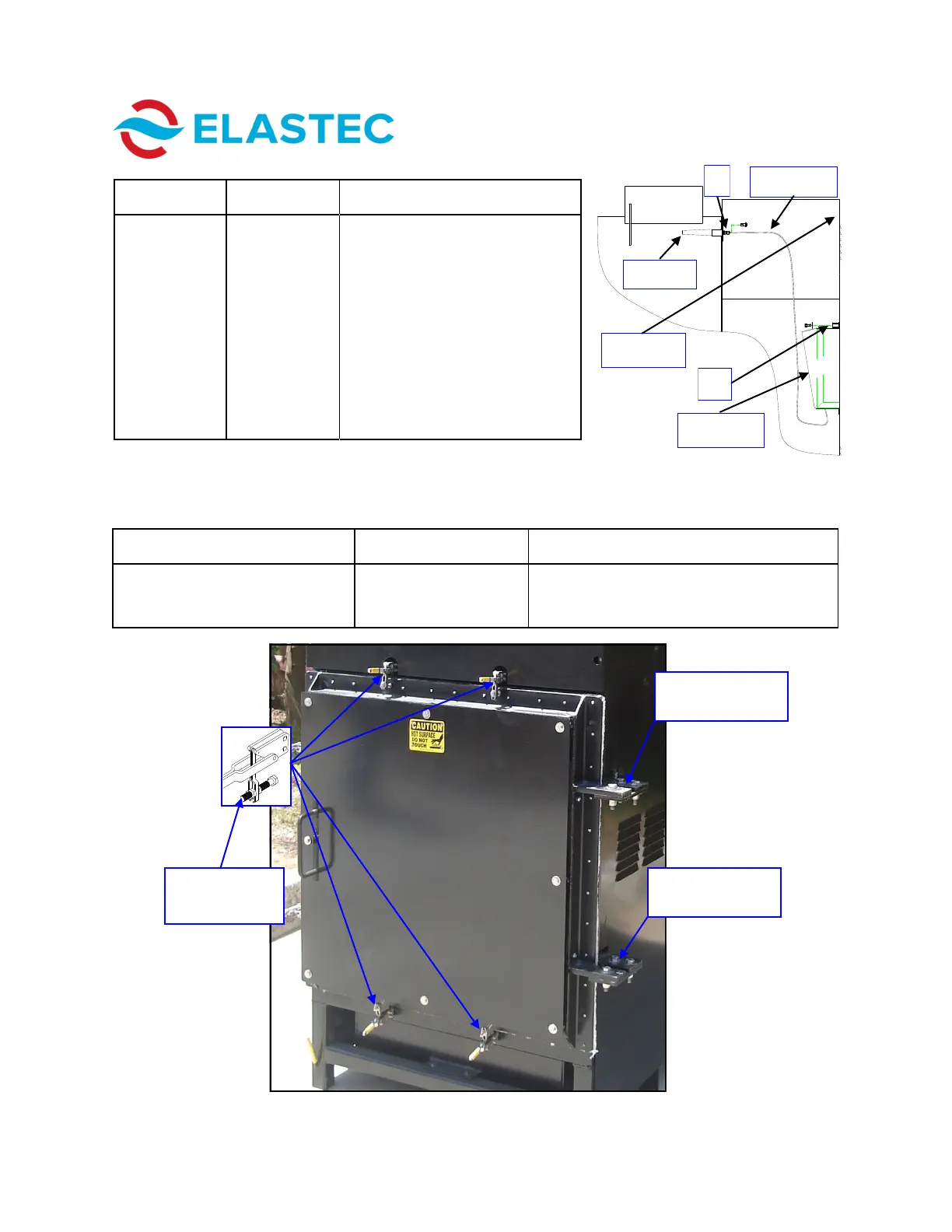

TROUBLESHOOTING GUIDE
Thermowell
Burner Cover
Bolts
Control Panel
Nut
Thermocouple
PROBLEM CAUSE SOLUTION
Unit operates
erratically and
does not
complete the
burn cycles
properly.
Thermocouple
is worn out or
damaged.
Follow these steps to remove
and replace thermocouple,
referring to the diagram:
1. Remove two bolts
2. Swing panel open.
3. Remove and reinstall
thermocouple wires from
Watlow.
4. Loosen nut on thermocouple
and pull unit out.
5. Install new thermocouple;
tighten nut.
PROBLEM CAUSE SOLUTION
Smoke is emitted from the door
gasket.
Door clamps and/or
door hinges may need
to be adjusted.
Adjust the door clamps and/or door hinges,
referring to the photo below.
