Elcometer 456 User Guide

2 USING THE GAUGE
j
www.elcometer.com3
b
a
c
f
m
l
n
o
p
q
I
h
k
s
u
r
t
en
R
Model
Model
a
Green LED
EBST
m
Batch Name (when in batching)
T
b
Battery Life Indicator
EBST
Date & Time (when not in batching)
ST
c
Bluetooth On
ST
n

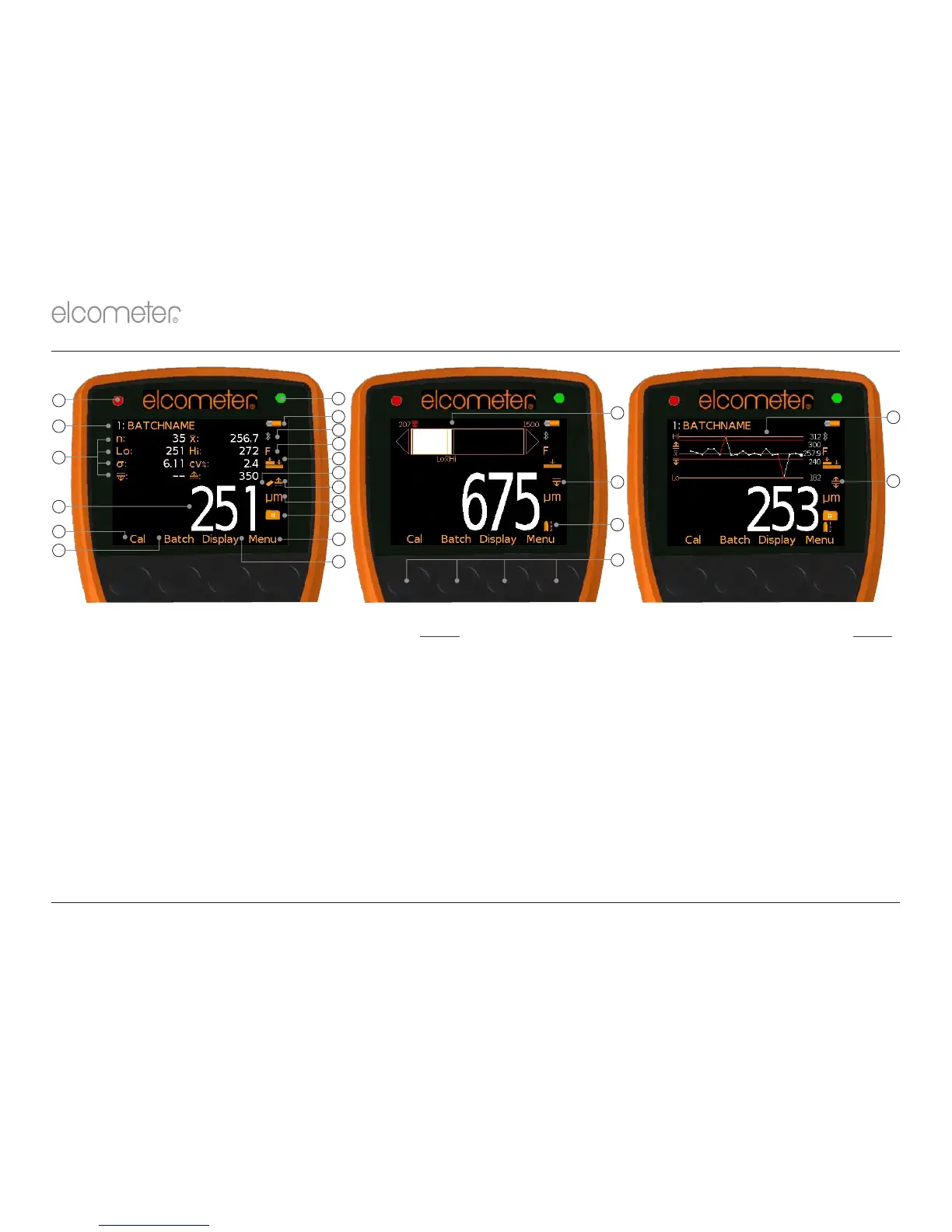

User Selectable Statistics - 4 rows
BST
d
Substrate Type - F, N, FNF
EBST
o
Reading Value
EBST
e
Calibration Method
BST
p
Calibration Softkey
EBST
f
Reading Outside Calibration Warning On
T
q
Batch / Data Softkey
BST
g
Upper Limit On
ST
r
Bar Graph - highest, lowest & average reading
BST
h
Units of Measurement - µm, mils, mm, inch
EBST
s
Lower Limit On
ST
i
Batch Type - normal, counted average, IMO
ST
t
Measurement Mode - Standard, Auto Repeat, Scan
T
j
Menu Softkey
EBST
u
Softkeys
EBST
k
Display Softkey
BST
v
Run Chart - last 20 readings
ST
l
Red LED - Reading outside limit/ IMO Fail
ST
w
Upper & Lower Limits On
ST
w
v
d
e
g

Elcometer 456 Specifications

General

Model	Elcometer 456
Category	Coating Thickness Gauge
Power Supply	2 x AA batteries
Interface	USB, Bluetooth
Data Output	USB, Bluetooth
Measurement Principle	Magnetic Induction or Eddy Current (depending on probe)
Substrate	Ferrous or Non-Ferrous (depending on probe)
Units	µm, mils
Operating Temperature	-10°C to 60°C (14°F to 140°F)
Standards	ISO 2178, ISO 2360, ASTM B499, ASTM D7091
Display	LCD
