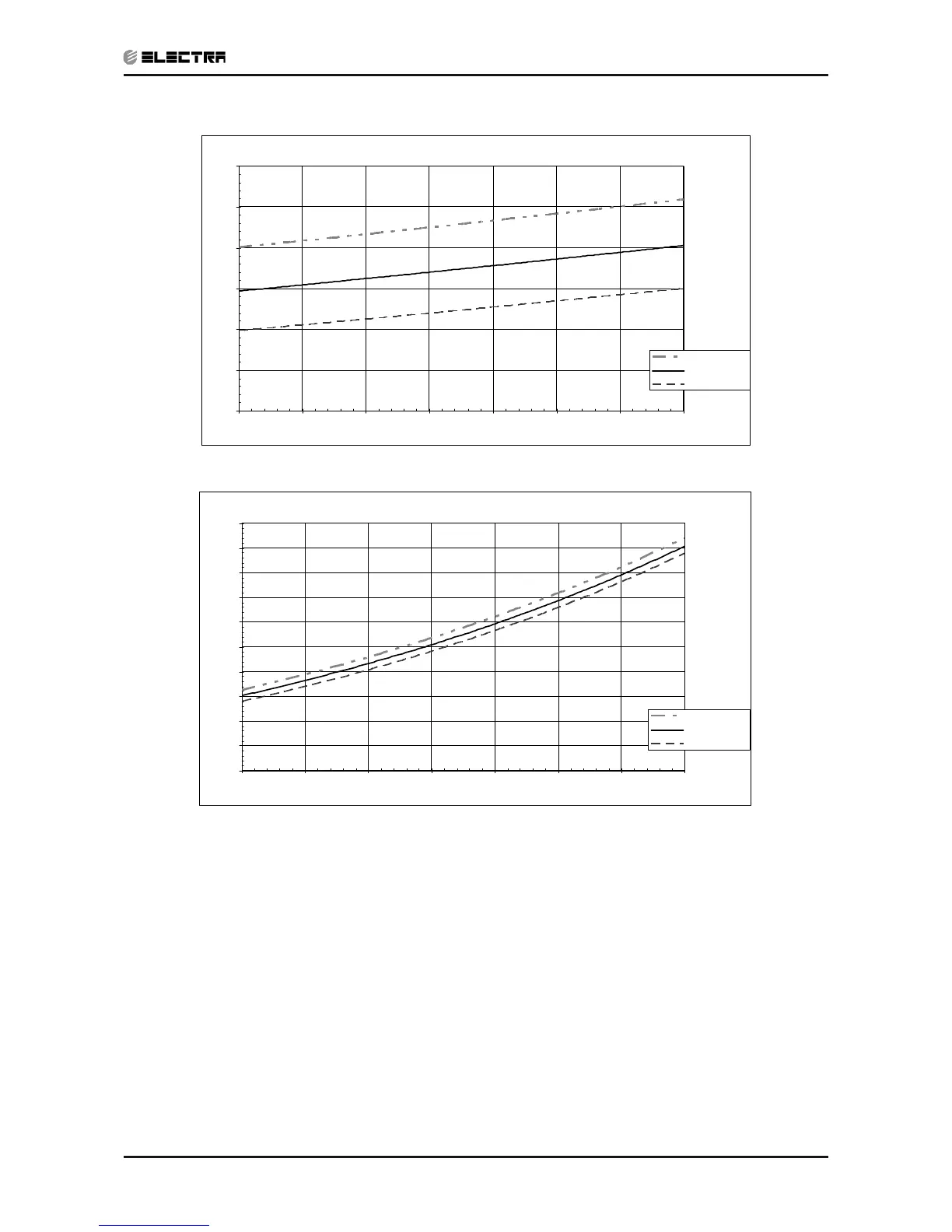

PERFORMANCE DATA & PRESSURE CURVES
Revision Y05-01Service Manual - DNC Series
DNC-1255 COOLING SUCTION PRESSURE
3.0
3.5
4.0
4.5
5.0
5.5
6.0
10 15 20 25 30 35 40 45
Outdoor Temp. (C DB)
SUCTION PRESSURE [Bar(g)]
30 C DB/50% RH
26 C DB/50% RH
23 C DB/50% RH
Indoor Temp.
DNC-1255 COOLING DISCHARGE PRESSURE
5.0
7.0
9.0
11.0
13.0
15.0
17.0
19.0
21.0
23.0
25.0
10 15 20 25 30 35 40 45
Outdoor Temp. (C DB)
DISCHARGE PRESSURE [Bar(g)]
30 C DB/50%RH
26 C DB/50%RH
23 C DB/50%RH
Indoor Temp.
