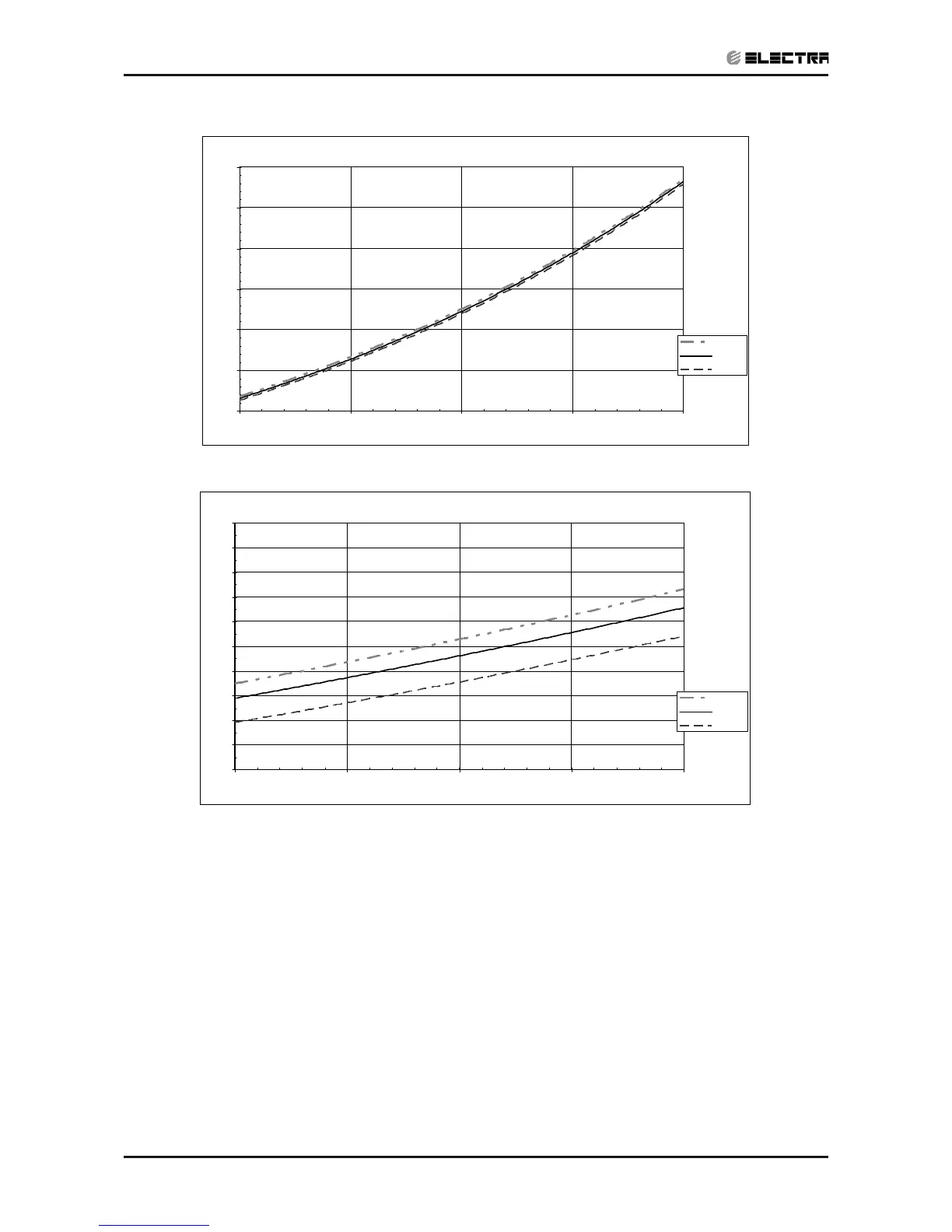

PERFORMANCE DATA & PRESSURE CURVES
Revision Y05-01 Service Manual - DNC Series
DNC-1255 HEATING SUCTION PRESSURE
2.0
2.5
3.0
3.5
4.0
4.5
5.0
-5 0 5 10 15
Outdoor Temp. (C DB)
SUCTION PRESSURE [Bar(g)]
20 C DB
18 C DB
15 C DB
Indoor Temp.
DNC-1255 HEATING DISCHARGE PRESSURE
10
11
12
13
14
15
16
17
18
19
20
-5 0 5 10 15
Outdoor Temp. (C DB)
DISCHARGE PRESSURE [Bar(g)]
20 C DB
18 C DB
15 C DB
Indoor Temp.
