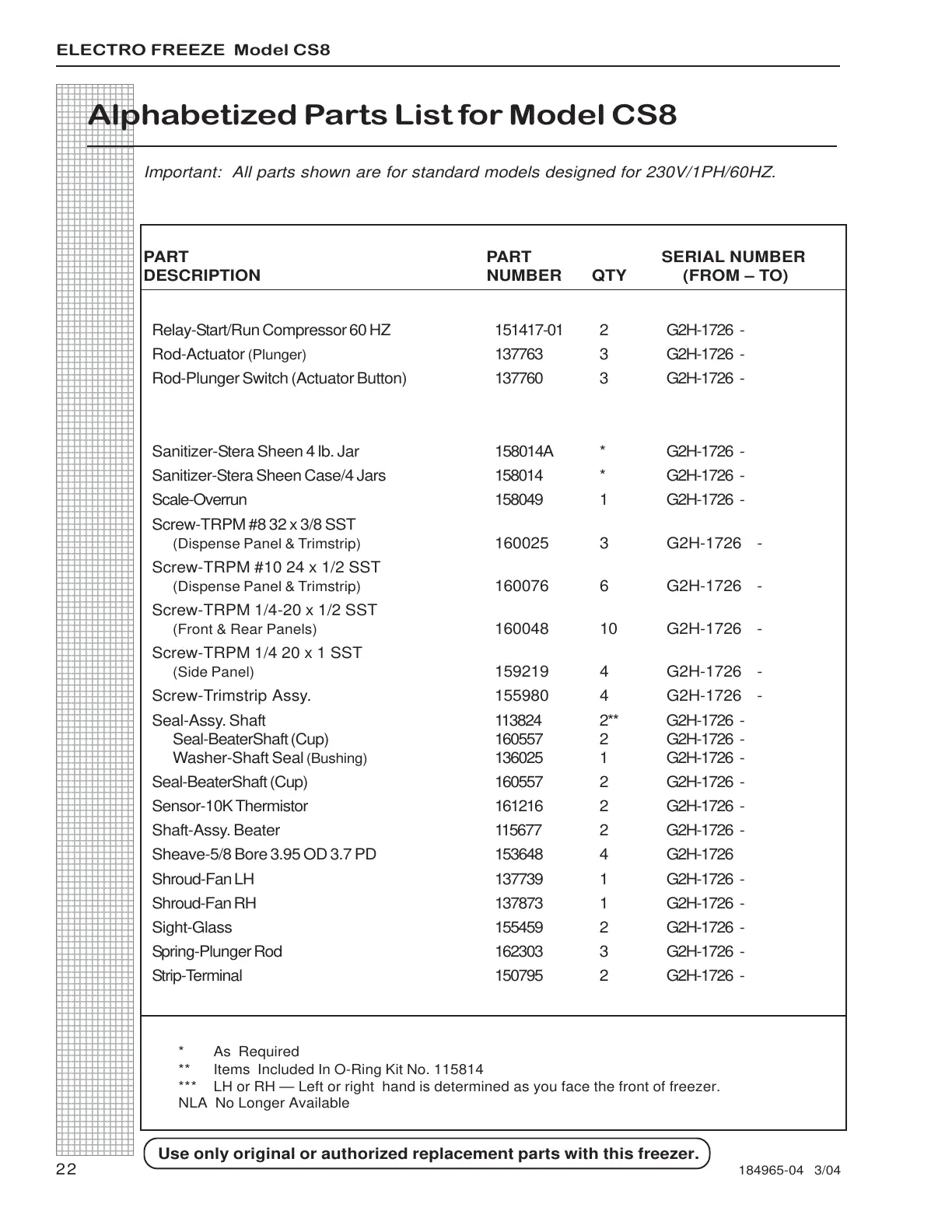

ELECTRO FREEZE Model CS8

Use only original or authorized replacement parts with this freezer.

22 184965-04 3/04

PART PART SERIAL NUMBER

DESCRIPTION NUMBER QTY (FROM – TO)

Important: All parts shown are for standard models designed for 230V/1PH/60HZ.

Alphabetized Parts List for Model CS8

* As Required

** Items Included In O-Ring Kit No. 115814

*** LH or RH — Left or right hand is determined as you face the front of freezer.

NLA No Longer Available

Relay-Start/Run Compressor 60 HZ 151417-01 2 G2H-1726 -

Rod-Actuator

(Plunger)

137763 3 G2H-1726 -

Rod-Plunger Switch (Actuator Button) 137760 3 G2H-1726 -

Sanitizer-Stera Sheen 4 lb. Jar 158014A * G2H-1726 -

Sanitizer-Stera Sheen Case/4 Jars 158014 * G2H-1726 -

Scale-Overrun 158049 1 G2H-1726 -

Screw-TRPM #8 32 x 3/8 SST

(Dispense Panel & Trimstrip)

160025 3 G2H-1726 -

Screw-TRPM #10 24 x 1/2 SST

(Dispense Panel & Trimstrip)

160076 6 G2H-1726 -

Screw-TRPM 1/4-20 x 1/2 SST

(Front & Rear Panels)

160048 10 G2H-1726 -

Screw-TRPM 1/4 20 x 1 SST

(Side Panel)

159219 4 G2H-1726 -

Screw-Trimstrip Assy. 155980 4 G2H-1726 -

Seal-Assy. Shaft 113824 2** G2H-1726 -

Seal-BeaterShaft (Cup) 160557 2 G2H-1726 -

Washer-Shaft Seal

(Bushing)

136025 1 G2H-1726 -

Seal-BeaterShaft (Cup) 160557 2 G2H-1726 -

Sensor-10K Thermistor 161216 2 G2H-1726 -

Shaft-Assy. Beater 115677 2 G2H-1726 -

Sheave-5/8 Bore 3.95 OD 3.7 PD 153648 4 G2H-1726

Shroud-Fan LH 137739 1 G2H-1726 -

Shroud-Fan RH 137873 1 G2H-1726 -

Sight-Glass 155459 2 G2H-1726 -

Spring-Plunger Rod 162303 3 G2H-1726 -

Strip-Terminal 150795 2 G2H-1726 -
