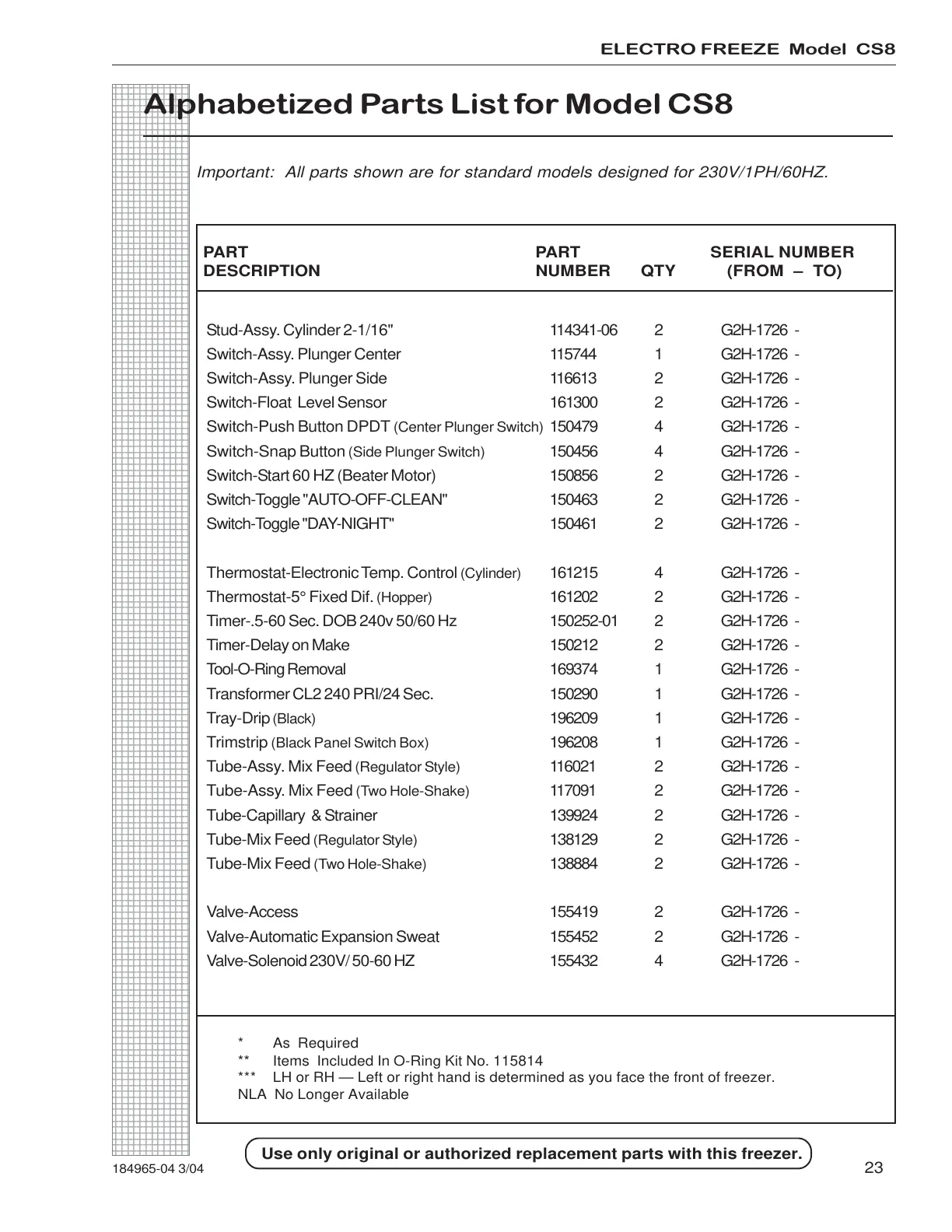

ELECTRO FREEZE Model CS8

Use only original or authorized replacement parts with this freezer.

184965-04 3/04 23

PART PART SERIAL NUMBER

DESCRIPTION NUMBER QTY (FROM – TO)

Important: All parts shown are for standard models designed for 230V/1PH/60HZ.

Alphabetized Parts List for Model CS8

* As Required

** Items Included In O-Ring Kit No. 115814

*** LH or RH — Left or right hand is determined as you face the front of freezer.

NLA No Longer Available

Stud-Assy. Cylinder 2-1/16" 114341-06 2 G2H-1726 -

Switch-Assy. Plunger Center 115744 1 G2H-1726 -

Switch-Assy. Plunger Side 116613 2 G2H-1726 -

Switch-Float Level Sensor 161300 2 G2H-1726 -

Switch-Push Button DPDT

(Center Plunger Switch)

150479 4 G2H-1726 -

Switch-Snap Button

(Side Plunger Switch)

150456 4 G2H-1726 -

Switch-Start 60 HZ (Beater Motor) 150856 2 G2H-1726 -

Switch-Toggle "AUTO-OFF-CLEAN" 150463 2 G2H-1726 -

Switch-Toggle "DAY-NIGHT" 150461 2 G2H-1726 -

Thermostat-Electronic Temp. Control

(Cylinder)

161215 4 G2H-1726 -

Thermostat-5° Fixed Dif.

(Hopper)

161202 2 G2H-1726 -

Timer-.5-60 Sec. DOB 240v 50/60 Hz 150252-01 2 G2H-1726 -

Timer-Delay on Make 150212 2 G2H-1726 -

Tool-O-Ring Removal 169374 1 G2H-1726 -

Transformer CL2 240 PRI/24 Sec. 150290 1 G2H-1726 -

Tray-Drip

(Black)

196209 1 G2H-1726 -

Trimstrip

(Black Panel Switch Box)

196208 1 G2H-1726 -

Tube-Assy. Mix Feed

(Regulator Style)

116021 2 G2H-1726 -

Tube-Assy. Mix Feed

(Two Hole-Shake)

117091 2 G2H-1726 -

Tube-Capillary & Strainer 139924 2 G2H-1726 -

Tube-Mix Feed

(Regulator Style)

138129 2 G2H-1726 -

Tube-Mix Feed

(Two Hole-Shake)

138884 2 G2H-1726 -

Valve-Access 155419 2 G2H-1726 -

Valve-Automatic Expansion Sweat 155452 2 G2H-1726 -

Valve-Solenoid 230V/ 50-60 HZ 155432 4 G2H-1726 -
