1360 Page 19
Electro-Mech Scoreboard Co. 120 Industrial Parkway Wrightsville, GA 31096
Phone: (800) 445-7846 Fax (478) 864-0212 Email: score@electro-mech.com
CABLE
LED DIGIT HEADER RIBBON CABLE
IDC SOCKET
CENTER KEY
CENTER KEY ON RIBBON CABLE IDC SOCKET
MUST POINT IN THE SAME DIRECTION AS THE
ARROW ON THE REAR OF THE LED DIGIT.

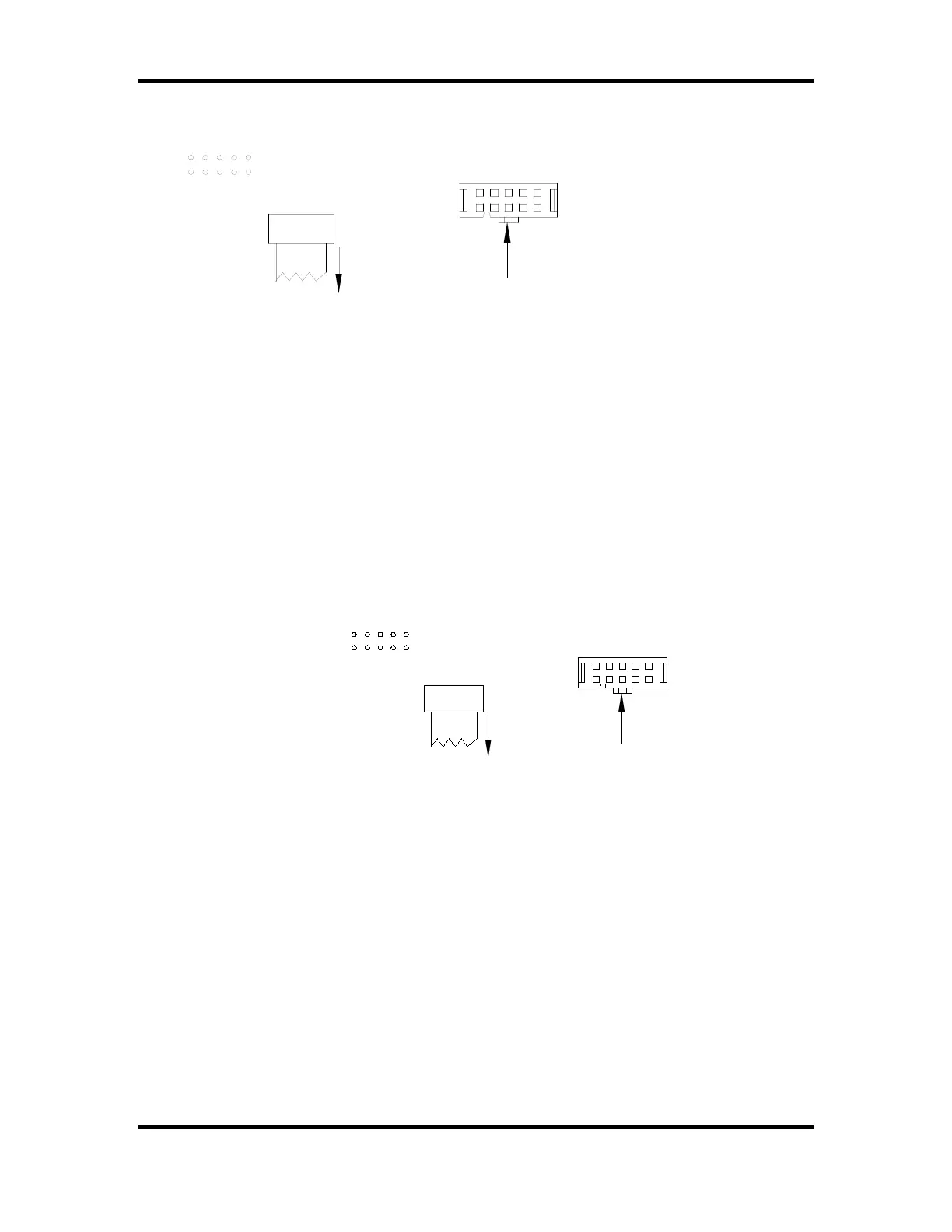

Figure 13 LED Digit Ribbon Cable Connection Diagram
7. The circuit board used for the QUARTERS 1 and 2 indicators has two headers. Refer
to figure 14 in order to plug the ribbon cable IDC connector onto the correct header
on the circuit board in the proper orientation.
CABLE
QUARTERS 1-2 HEADER RIBBON CABLE
IDC SOCKET
CENTER KEY
CENTER KEY ON RIBBON CABLE IDC
SOCKET MUST POINT IN THE SAME
DIRECTION AS THE ARROW ON THE
REAR OF THE LED DIGIT.
QUARTERS
1-2
Figure 14 Quarters 1 and 2 Indicators Ribbon Cable Connection Diagram
8. The circuit board used for the QUARTERS 3 and 4 indicators has two headers. Refer
to figure 15 in order to plug the ribbon cable IDC connector onto the correct header
on the circuit board in the proper orientation.
