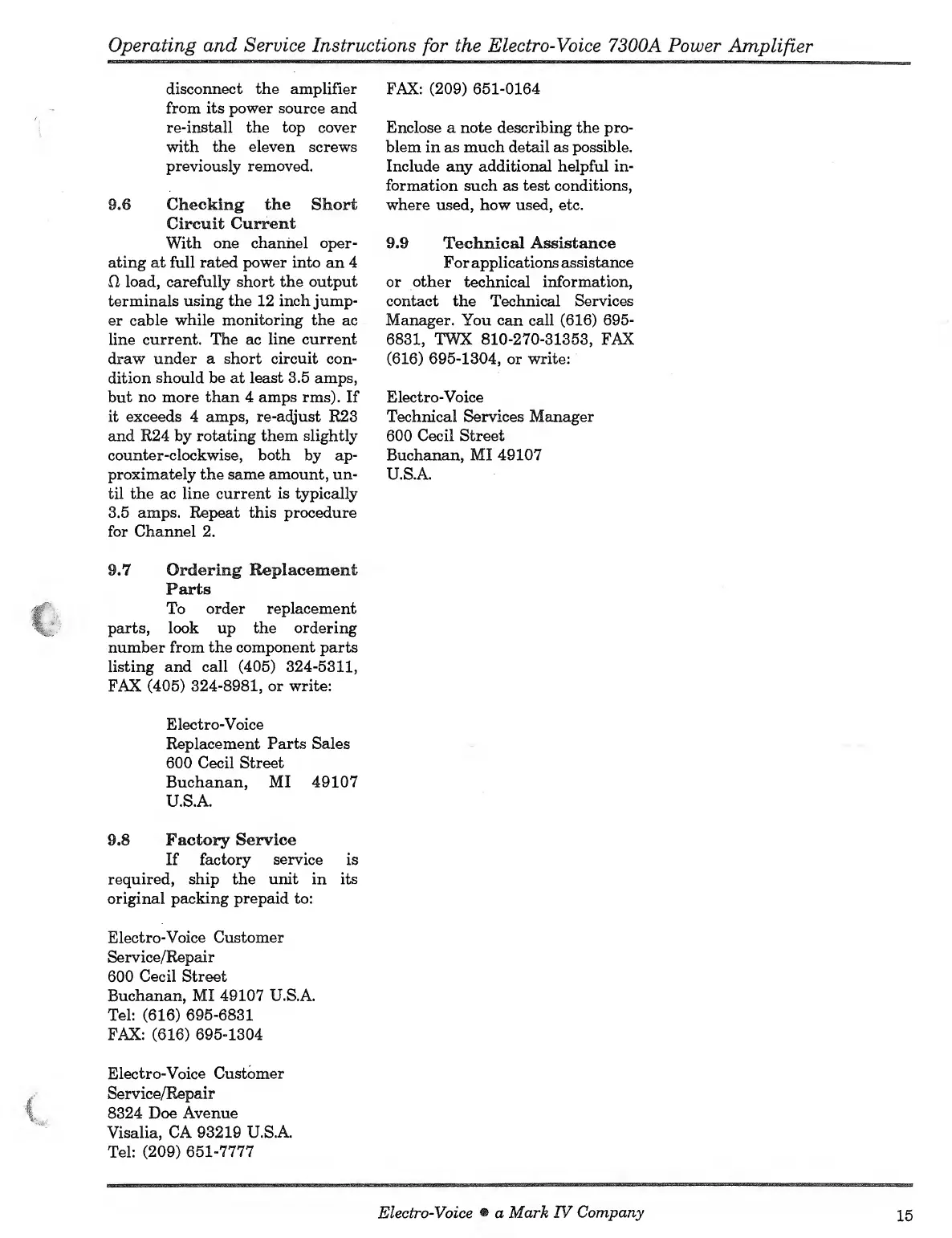

operating and Service Instructions for the Electro-Voice 7300A Power Amplifier
disconnect the amplifier
from its power source and
re-install the top cover
with the eleven screws
previously removed.
5.6 Checking the Short
Circuit Current
With one channel oper¬
ating at full rated power into an 4
Cl load, carefully short the output
terminals using the 12 inch jump¬
er cable while monitoring the ac
line current. The ac line current
draw under a short circuit con¬
dition should be at least 3.5 amps,
but no more than 4 amps rms). If
it exceeds 4 amps, re-adjust R23
and R24 by rotating them slightly
counter-clockwise, both by ap¬
proximately the same amount, un¬
til the ac line current is typically
3.5 amps. Repeat this procedure
for Channel 2.
9.7 Ordering Replacement
Parts
To order replacement
parts, look up the ordering
number from the component parts
listing and call (405) 324-5311,
FAX (405) 324-8981, or write:
Electro-Voice
Replacement Parts Sales
600 Cecil Street
Buchanan, MI 49107
U.S.A.
9.8 Factory Service
If factory service is
required, ship the unit in its
original packing prepaid to:
Electro-Voice Customer
Service/Repair
600 Cecil Street
Buchanan, MI 49107 U.S.A.
Tel: (616) 695-6831
FAX: (616) 695-1304
Electro-Voice Customer
Service/Repair
8324 Doe Avenue
Visalia, CA 93219 U.S.A.
Tel: (209) 651-7777
FAX: (209) 651-0164
Enclose a note describing the pro¬
blem in as much detail as possible.
Include any additional helpful in¬
formation such as test conditions,
where used, how used, etc.
9.9 T echnical Assistance
For applications assistance
or other technical information,
contact the Technical Services
Manager. You can call (616) 695-
6831, TWX 810-270-31353, FAX
(616) 695-1304, or write:
Electro-Voice
Technical Services Manager
600 Cecil Street
Buchanan, MI 49107
U.S.A.
Electro-Voice ® a Mark TV Company
15
